Toyota Celica

1981-08 → 1985-12 · chassis AA63,TA60,SA63,RA6#,MA61 · catalogue 252230 · Europe

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

10 part groups · 2 illustrations

Illustrations

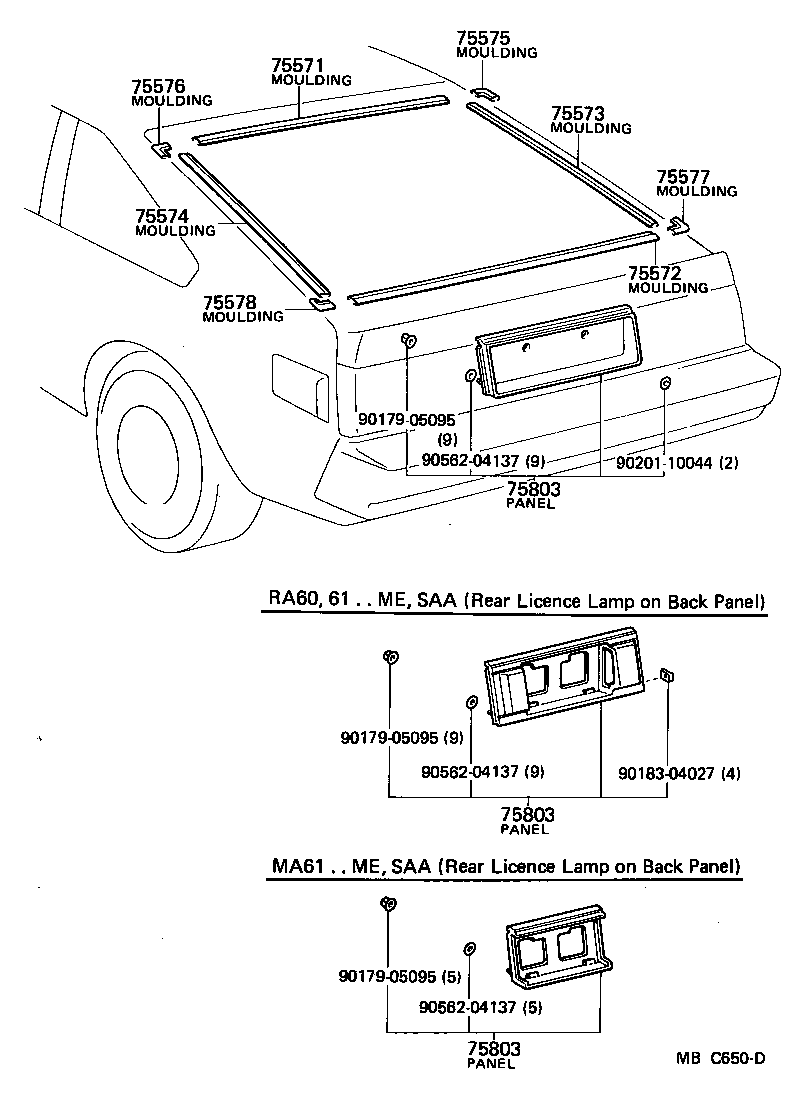

Figure MBF453A MBF453A 1981-08 → 1985-07 Figure MBC650D MBC650D 1981-08 → —

Part groups

PNCDescription
75571 Moulding, Back Window, Outside Upper
75572 Moulding, Back Window, Lower
75573 Moulding, Back Window Side, RH
75574 Moulding, Back Window Side, LH
75575 Moulding, Back Window Corner, Upper RH
75576 Moulding, Back Window Corner, Upper LH
75577 Moulding, Back Window Corner, Lower RH
75578 Moulding, Back Window Corner, Lower LH
75803 Panel Sub-assy, Body Lower Back Finish Center
75821 Moulding, Luggage Compartment Door Back
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
