Toyota Celica

1981-08 → 1985-12 · chassis AA63,TA60,SA63,RA6#,MA61 · catalogue 252230 · Europe

Discontinued model Data version 1986-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

7 part groups · 2 illustrations

Illustrations

Figure MEC996A

MEC996A 1981-12 → 1983-08

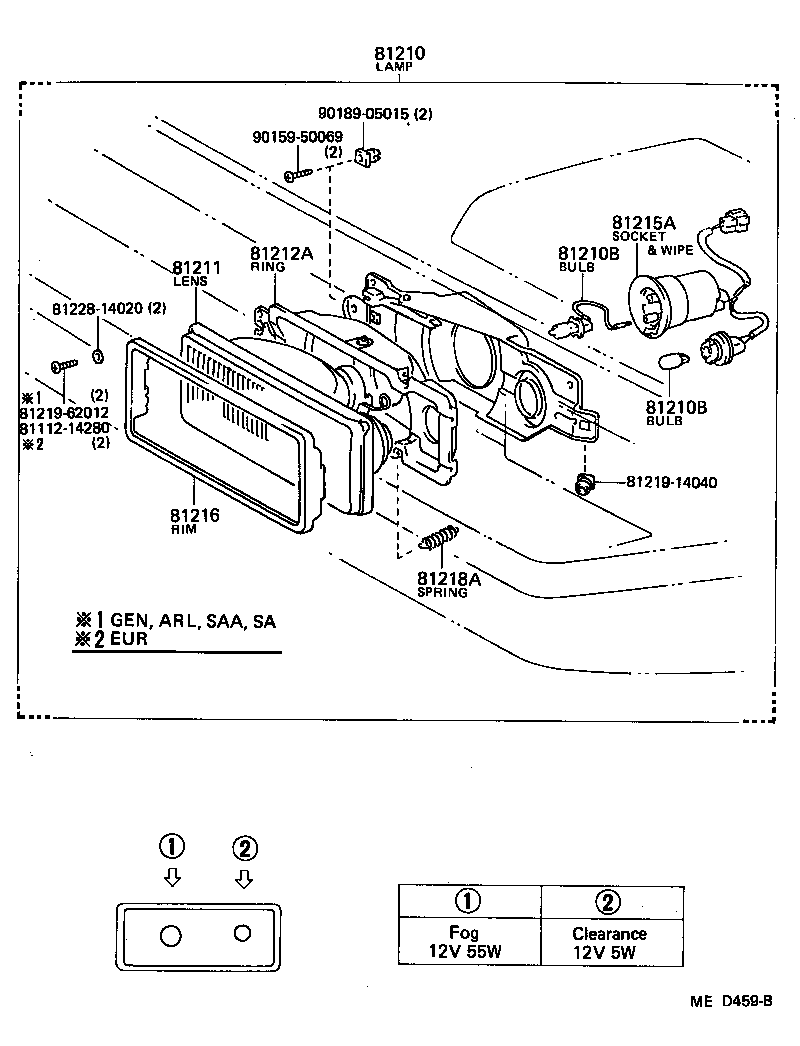

Figure MED459B

MED459B 1983-08 → —

Part groups

PNC	Description
81210	Lamp Assy, Fog
81210B	Bulb, Fog Lamp
81211	Lens, Fog Lamp
81212A	Ring, Fog Lamp Mounting
81215A	Socket & Wire, Fog Lamp
81216	Rim, Fog Lamp, NO.1
81218A	Spring, Tension(FOR FOG LAMP)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
