Toyota Celica

1981-08 → 1985-12 · chassis AA63,TA60,SA63,RA6#,MA61 · catalogue 252230 · Europe

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

33 part groups · 10 illustrations

Illustrations

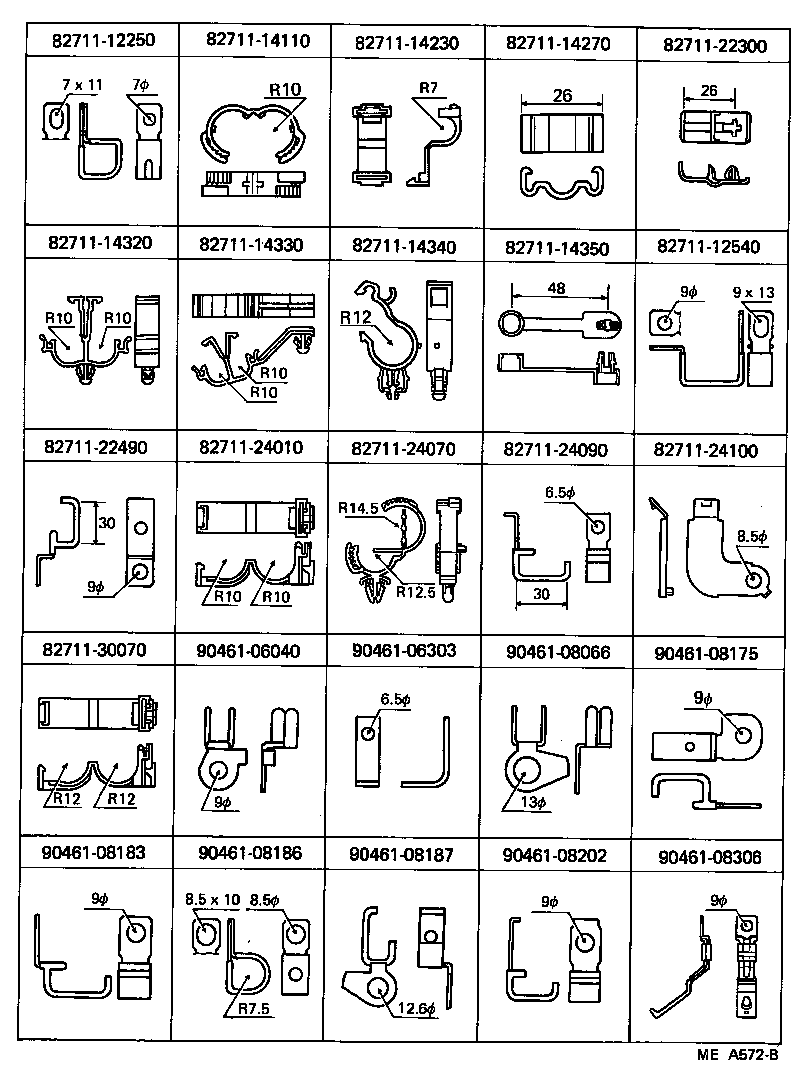

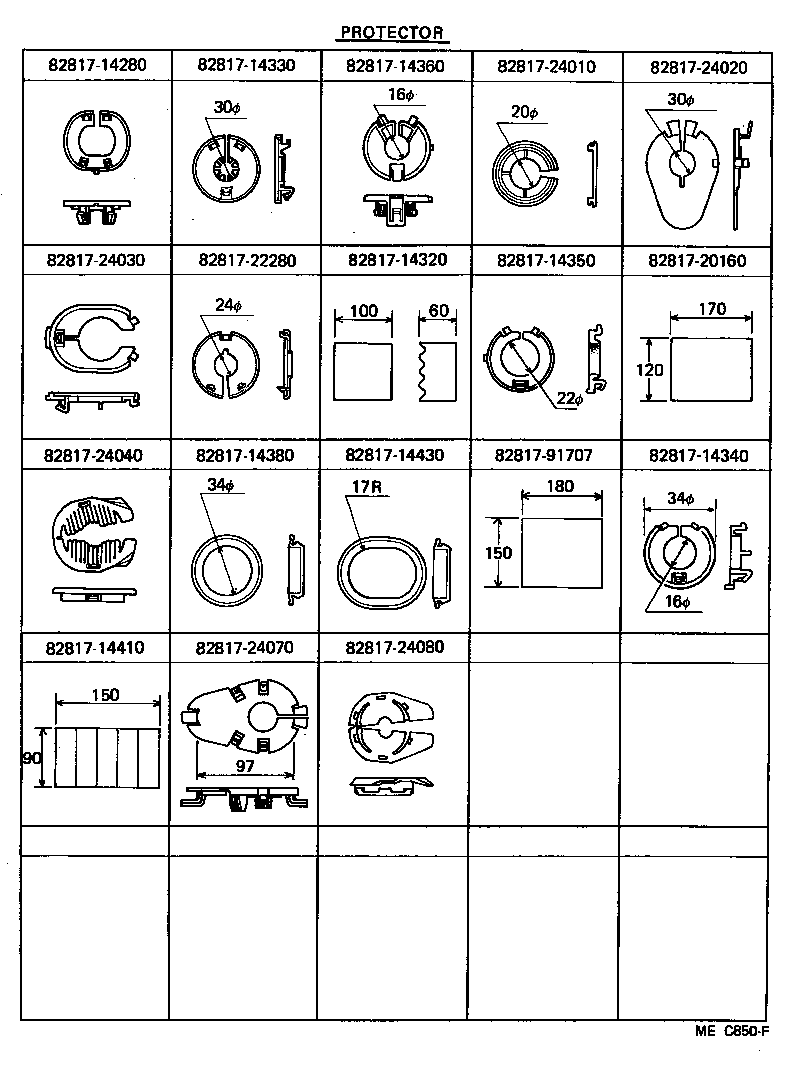

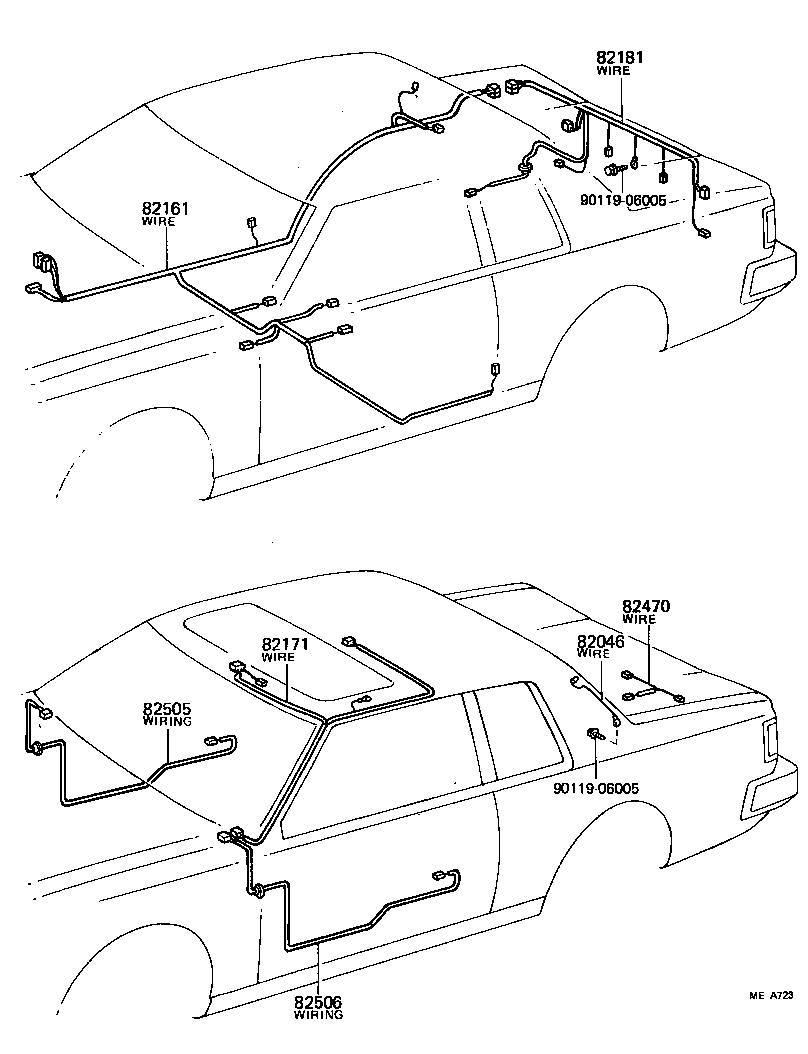

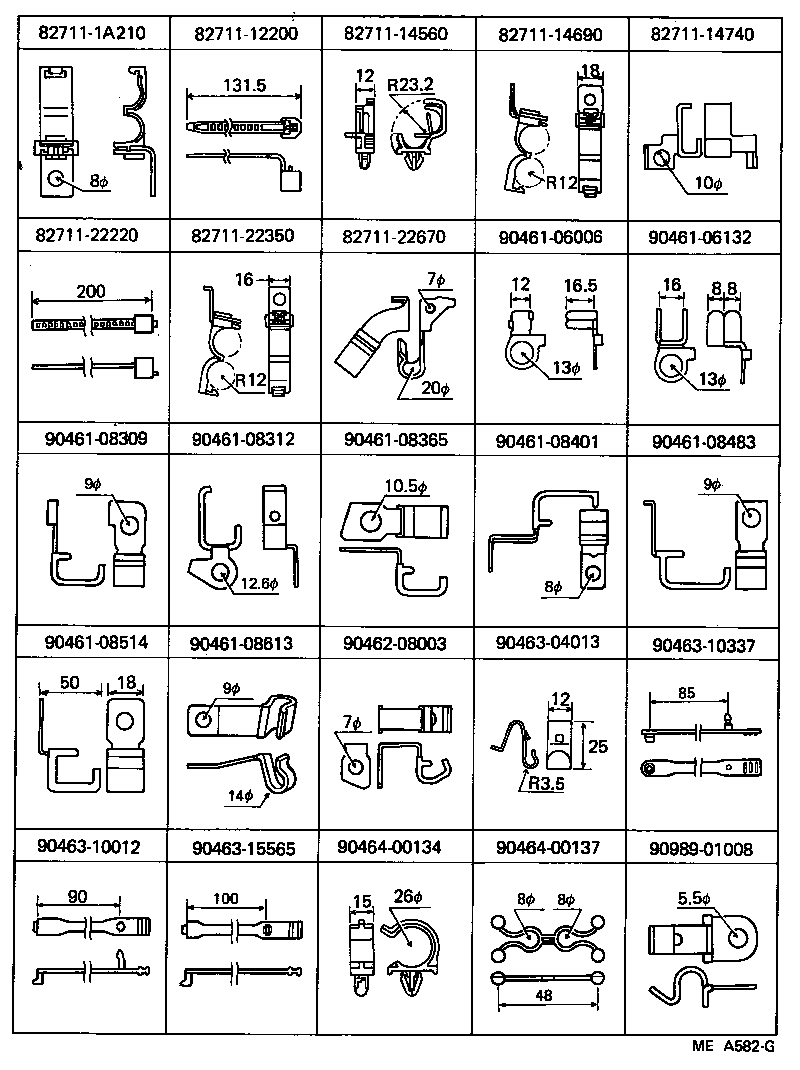

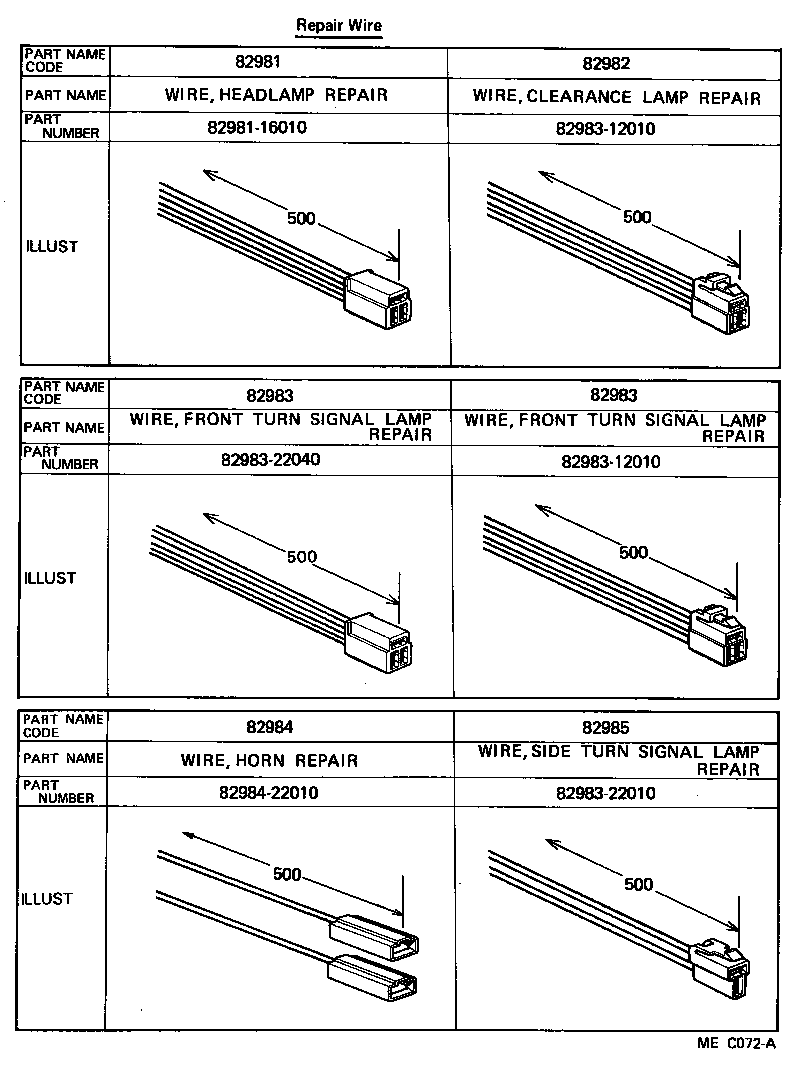

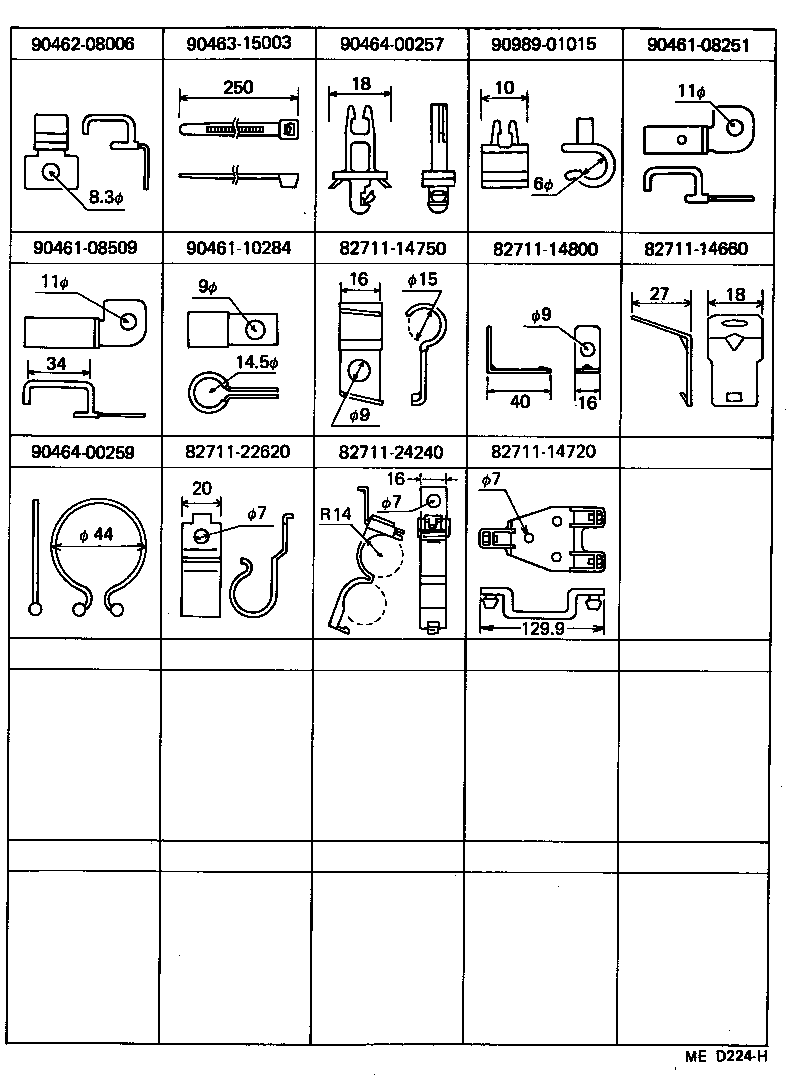

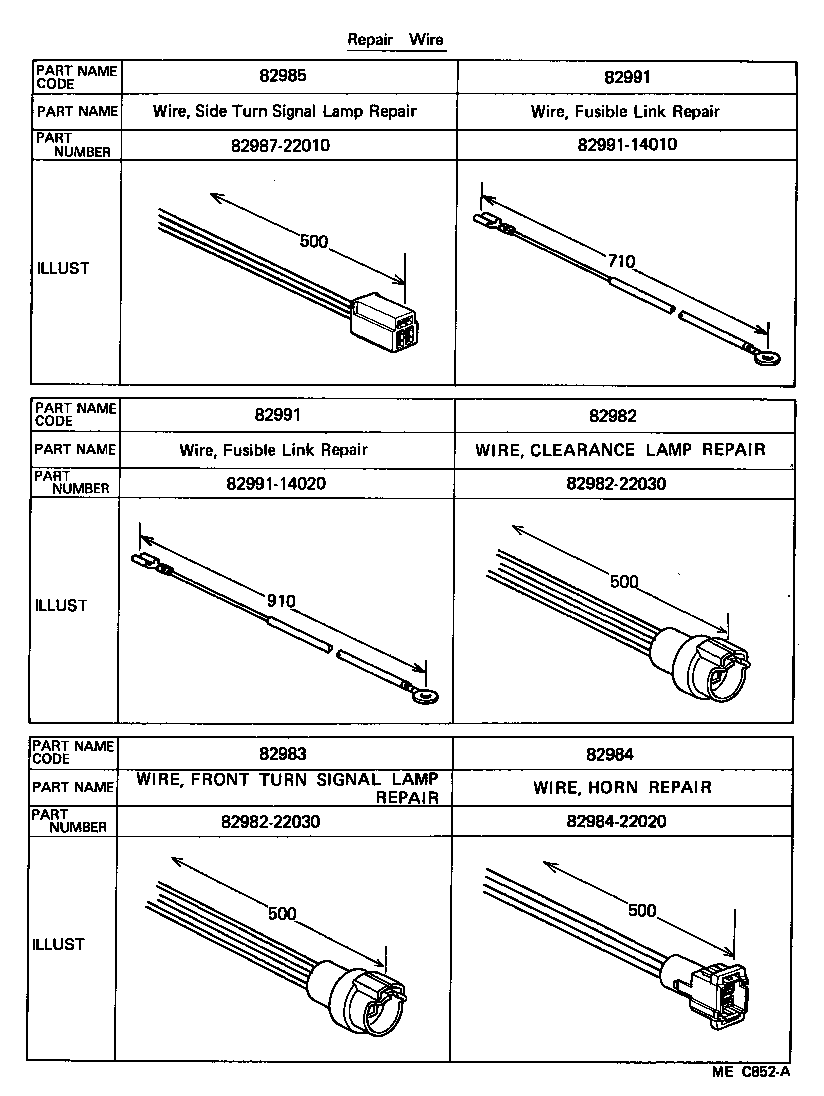

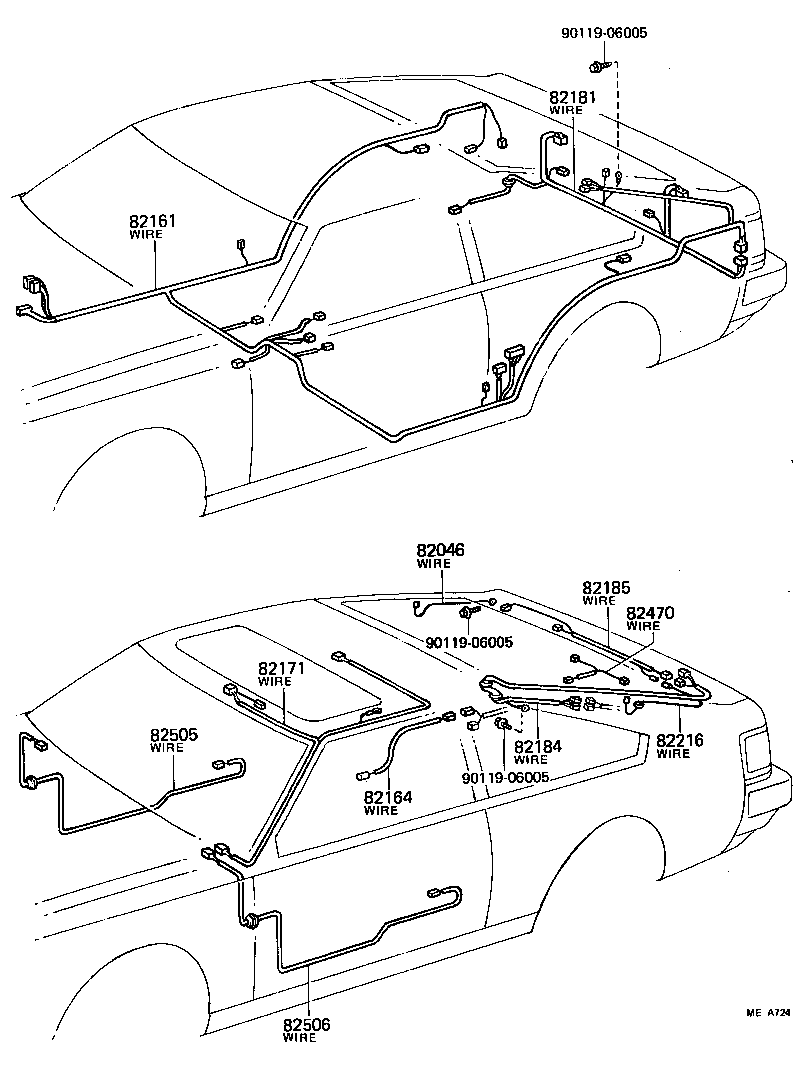

Figure MEA722I MEA722I 1981-08 → — Figure MEA723 MEA723 1981-08 → 1985-07 Figure MEA724 MEA724 1981-08 → — Figure MEC072A MEC072A 1981-08 → — Figure MEC852A MEC852A 1981-08 → — Figure MEC850F MEC850F 1981-08 → — Figure MED448B MED448B 1981-08 → — Figure MEA572B MEA572B 1981-08 → — Figure MEA582G MEA582G 1981-08 → — Figure MED224H MED224H 1981-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82031 Wire Sub-assy, Ignition Coil
82046 Wire Sub-assy, Rear Window Defogger Earth
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82125 Wire, Transmission
82131 Wire, Cowl
82134 Wire, Cowl, NO.4
82161 Wire, Floor
82164 Wire, Frame
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82201 Wiring Sub-assy, Instrument Panel
82210C Fusible Link
82210D Fusible Link
82210E Fusible Link
82216 Wire, Rear Window Defogger
82241C Wire, Relay
82374 Wire, Washer
82470 Wire Assy, License Lamp Feed
82505 Wiring Sub-assy, Front Door, RH
82506 Wiring Sub-assy, Front Door, LH
82670 Block Assy, Junction, NO.1
82823 Cap, Terminal, NO.1
82981 Wire, Headlamp Repair
82982 Wire, Clearance Lamp Repair
82983 Wire, Front Turn Signal Lamp Repair
82984 Wire, Horn Repair
82985 Wire, Side Turn Signal Lamp Repair
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
