Toyota Celica
1981-08 → 1985-12 · chassis AA63,TA60,SA63,RA6#,MA61 · catalogue 252230 · Europe
Discontinued model
Data version 1986-05
Cruise Control (AUTO DRIVE)

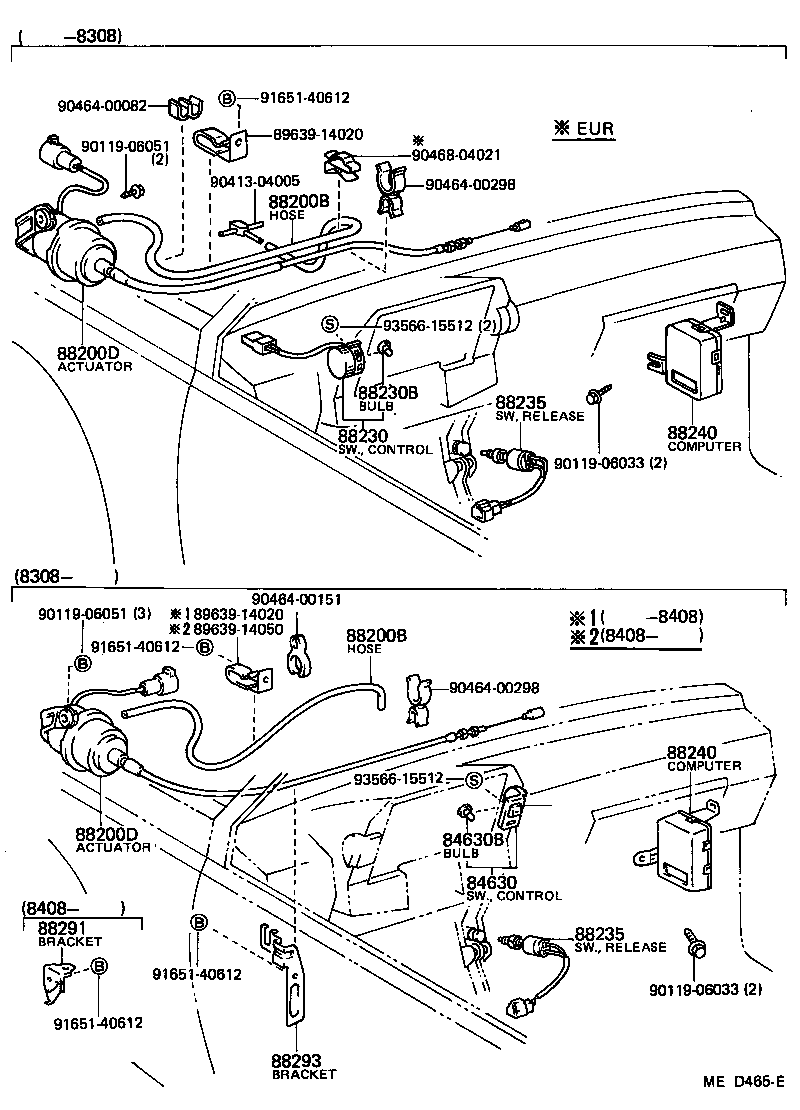

13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 83731 | Cable, Cruise Control |
| 84630 | Switch Assy, Cruise Control Main |
| 84630B | Bulb(FOR CRUISE CONTROL SWITCH) |
| 88200B | Hose, Cruise Control Vacuum |
| 88200D | Actuator Assy, Cruise Control |
| 88230 | Switch Assy, Cruise Control(AUTO DRIVE) Control |
| 88230B | Bulb, Cruise Control(AUTO DRIVE) Control Switch |
| 88235 | Switch Assy, Cruise Control(AUTO DRIVE) Release |
| 88240 | Computer Assy, Cruise Control |
| 88280 | Relay Assy, Cruise Control(AUTO DRIVE), B |
| 88290A | Bellcrank Assy, Cruise Control |
| 88291 | Bracket, Cruise Control(AUTO DRIVE), NO.1 |
| 88293 | Bracket, Cruise Control Accelerator Wire Support |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
