Toyota Celica

1981-08 → 1985-12 · chassis AA63,TA60,SA63,RA6#,MA61 · catalogue 252230 · Europe

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp Cleaner

13 part groups · 2 illustrations

Illustrations

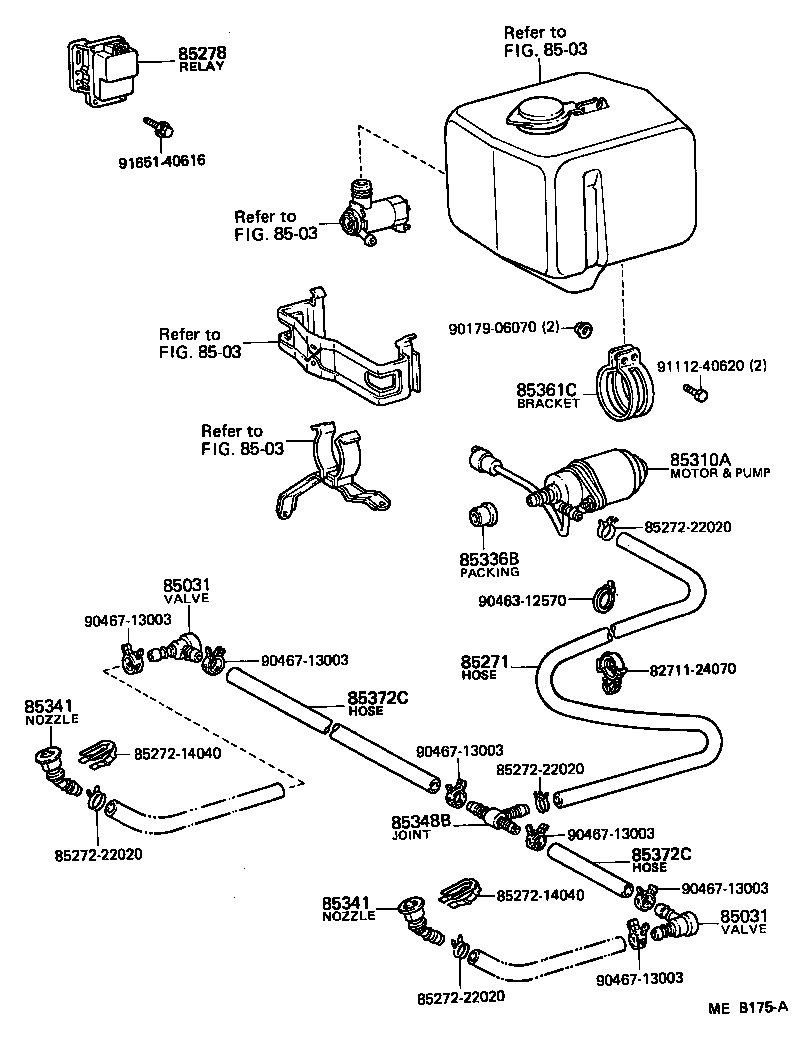

Figure MEA740E MEA740E 1981-08 → 1985-07 Figure MEB175A MEB175A 1981-12 → —

Part groups

PNCDescription
85031 Valve, Headlamp Cleaner Washer Hose
85230C Bracket Assy, Headlamp Cleaner
85271 Hose, Headlamp Cleaner, NO.1
85271A Hose, Headlamp Cleaner, NO.2
85271B Hose, Headlamp Cleaner, NO.3
85278 Relay Assy, Headlamp Cleaner Control
85285 Jar, Headlamp Cleaner Washer
85310A Motor And Pump Assy, Headlamp Cleaner Washer
85336B Packing, Headlamp Cleaner Washer
85341 Nozzle, Headlamp Cleaner Washer
85348B Joint, Headlamp Cleaner Hose, NO.2
85361C Bracket, Washer
85372C Hose, Headlamp Cleaner Washer (FROM JOINT TO VALVE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
