Toyota Celica

1981-08 → 1985-12 · chassis AA63,TA60,SA63,RA6#,MA61 · catalogue 252230 · Europe

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

10 part groups · 2 illustrations

Illustrations

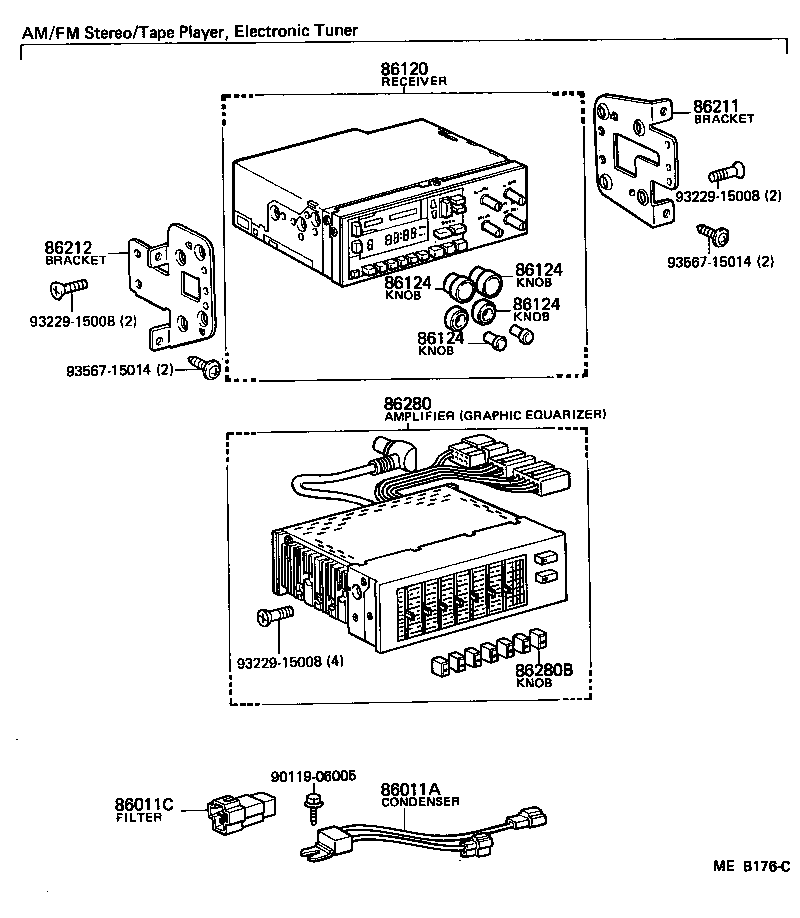

Figure MEA741D MEA741D 1981-08 → — Figure MEB176C MEB176C 1981-08 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86120 Receiver Assy, Radio
86124 Knob, Radio Receiver Control
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86260 Tape Player Assy
86260A Knob, Tape Player Volume
86280 Amplifier Assy, Stereo Component
86280B Knob, Amplifier Graphic Equalizer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
