Toyota Celica
1981-08 → 1985-12 · chassis AA63,TA60,SA63,RA6#,MA61 · catalogue 252230 · Europe
Discontinued model
Data version 1986-05

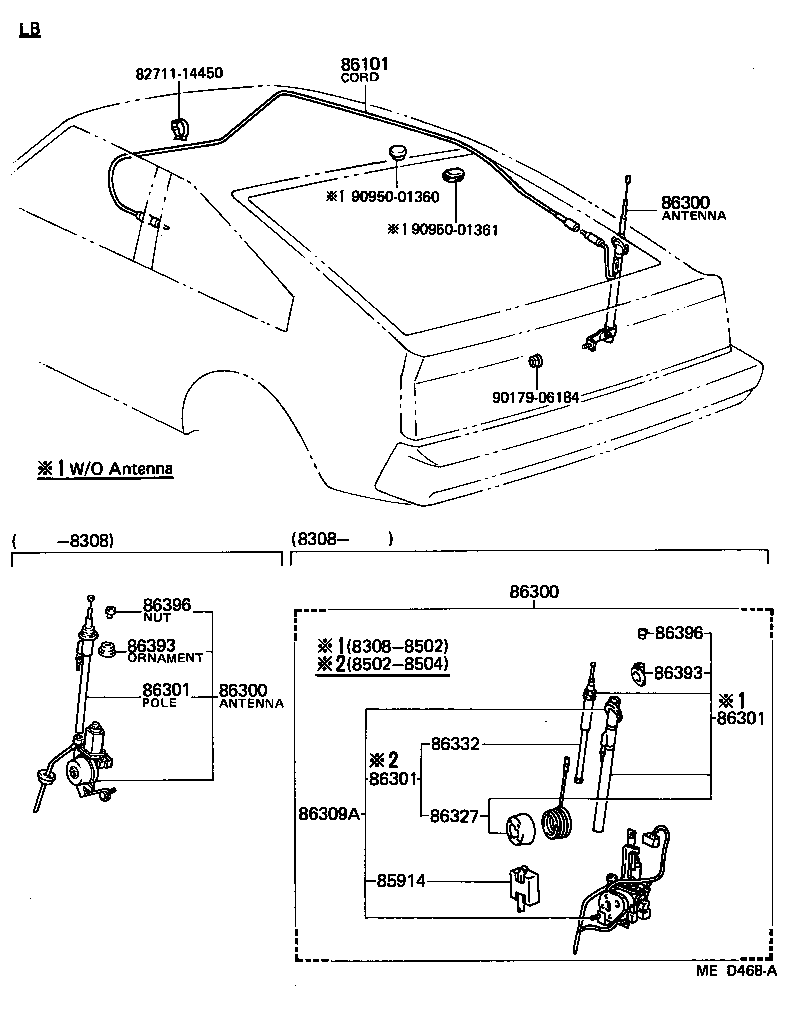

Antenna
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85914 | Relay, Motor Antenna Control |
| 86101 | Cord Sub-assy, Antenna |
| 86300 | Antenna Assy, W/Holder |
| 86301 | Pole Sub-assy, Antenna |
| 86309A | Pole Sub-assy, Motor Antenna |
| 86327 | Cable, W/Antenna Drum |
| 86332 | Rod, Antenna |
| 86393 | Ornament, Antenna |
| 86396 | Nut, Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
