Heating & Air Conditioning - Heater Unit & Blower

15 part groups · 3 illustrations

Illustrations

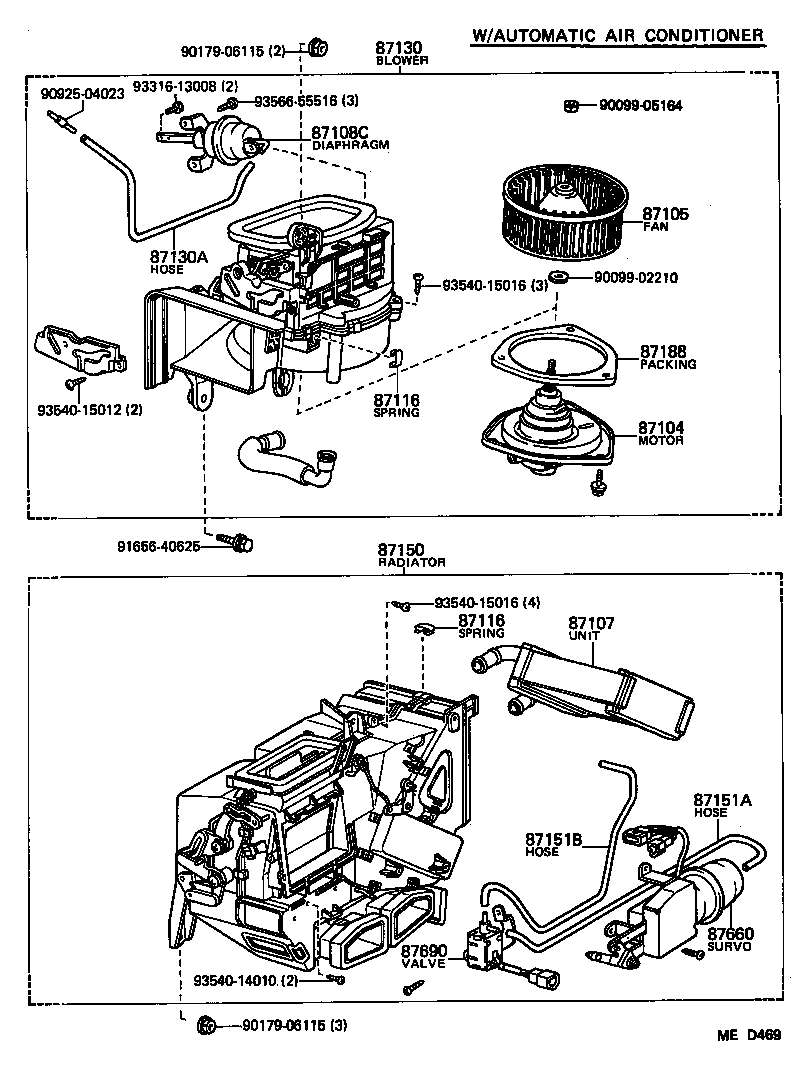

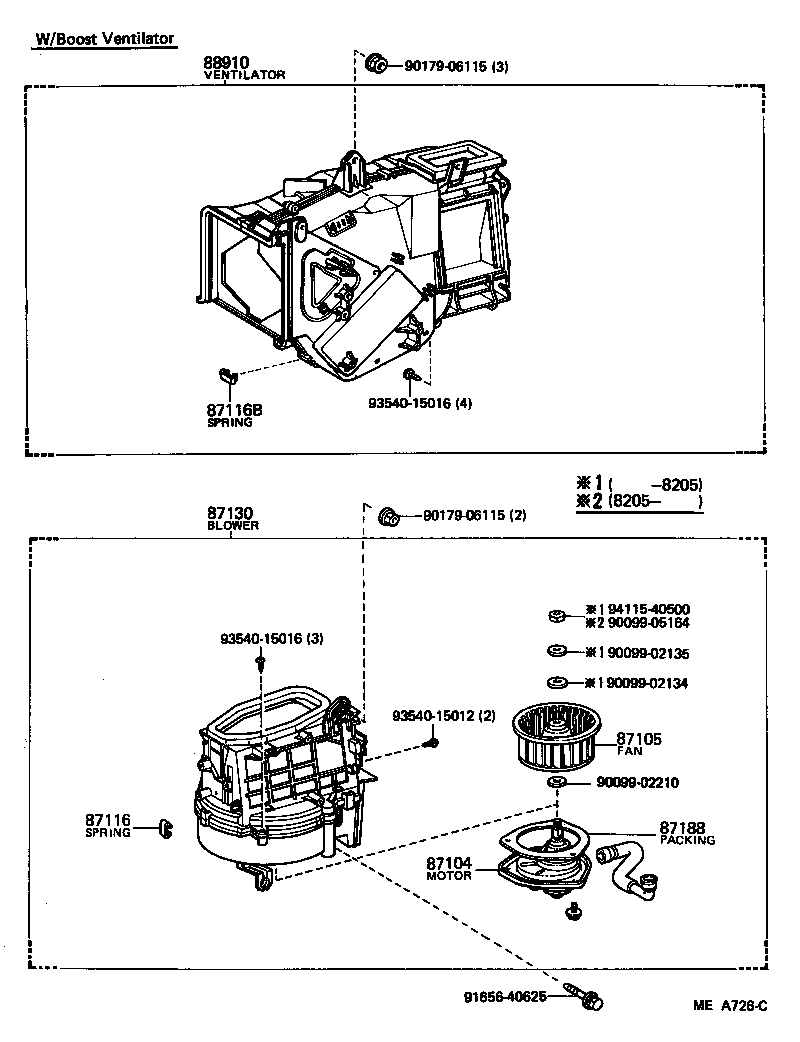

Figure MEA598C MEA598C 1981-08 → — Figure MEA726C MEA726C 1981-08 → — Figure MED469 MED469 1983-08 → —

Part groups

PNCDescription
87104 Motor Sub-assy, Heater Blower
87105 Fan Sub-assy, Heater Blower
87107 Unit Sub-assy, Heater Radiator
87108C Diaphragm Sub-assy, Heater Blower Damper
87116 Spring, Heater Case Fastening
87116B Spring, Boost Ventilator Case
87130 Blower Assy, Heater, Front
87130A Hose, Vacuum(FOR HEATER BLOWER MOTOR)
87150 Radiator Assy, Heater
87151A Hose, Vacuum, A
87151B Hose, Vacuum, B
87188 Packing, Heater Blower Motor
87660 Servo Assy, Air Conditioner
87690 Valve Assy, Magnet
88910 Ventilator Assy, Boost
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
