Toyota Celica
1981-08 → 1985-12 · chassis AA63,TA60,SA63,RA6#,MA61 · catalogue 252230 · Europe
Discontinued model
Data version 1986-05

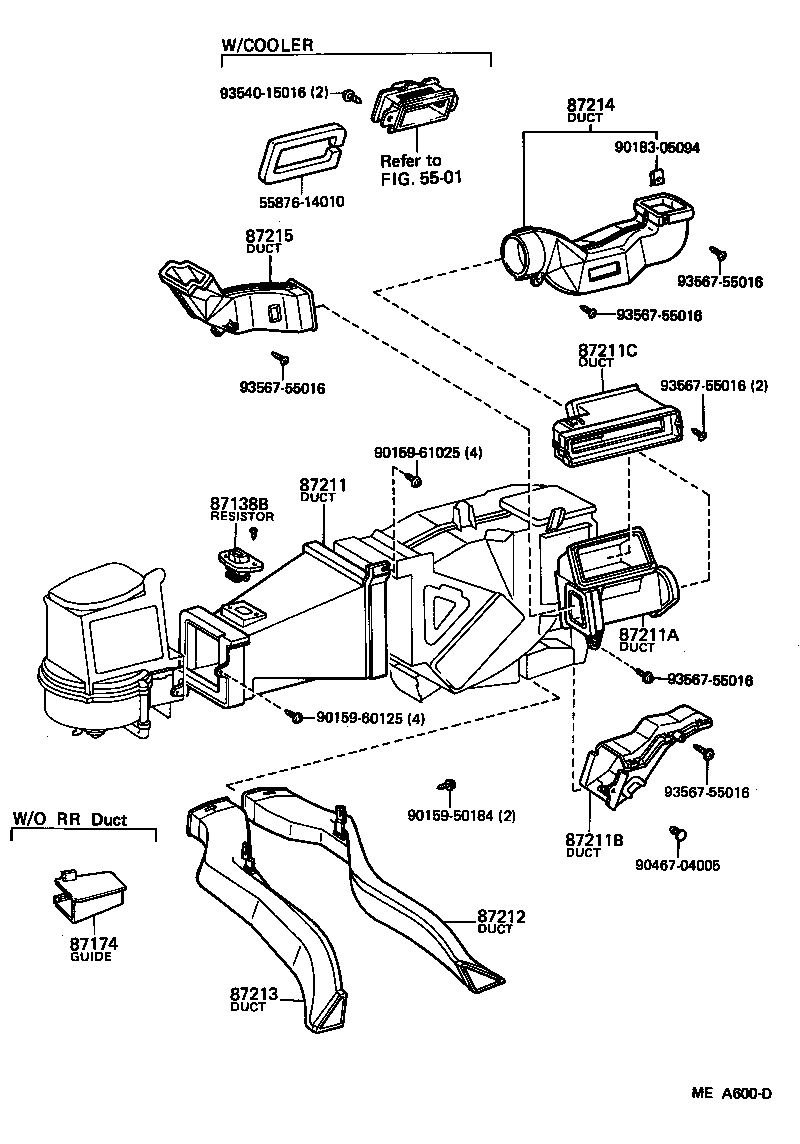

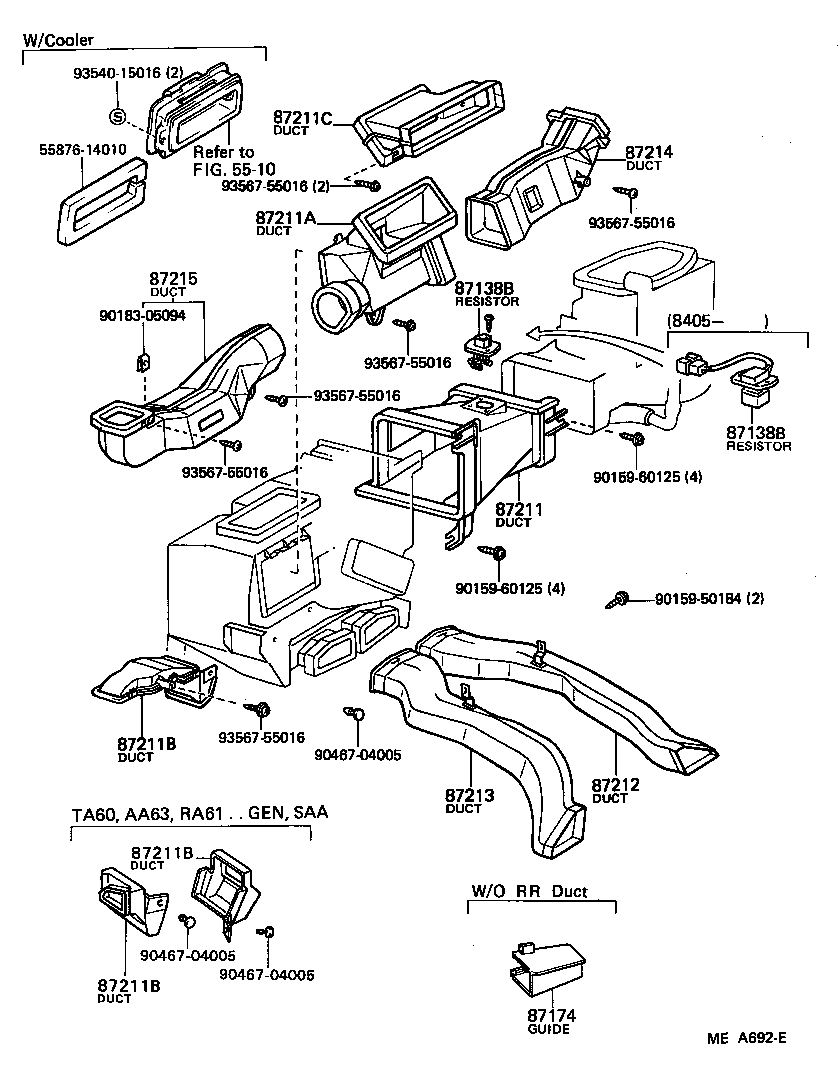

Heating & Air Conditioning - Control & Air Duct
26 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55905A | Knob, Heater Control |
| 55906A | Cable Sub-assy, Defroster Damper Control |
| 55906B | Grommet(FOR HEATER CONTROL CABLE) |
| 55907A | Cable Sub-assy, Water Valve Control |
| 55908A | Cable Sub-assy, Air Inlet Damper Control |
| 55909A | Cable Sub-assy, Airmix Damper Control |
| 55910 | Control Assy, Heater OR Boost Ventilator |
| 55915 | Lever, Cooler Control |
| 55924 | Retainer, Heater Control, Lower |
| 55931 | Clamp, Heater Control Wire |
| 87138B | Resistor, Heater Blower |
| 87174 | Guide, Air Duct |
| 87211 | Duct, Air, NO.1 |
| 87211A | Duct, Air, NO.2 |
| 87211B | Duct, Air, NO.3 |
| 87211C | Duct, Air, NO.4 |
| 87212 | Duct, Air, Rear NO.1 |
| 87213 | Duct, Air, Rear NO.2 |
| 87214 | Duct, Air, Side NO.1 RH |
| 87215 | Duct, Air, Side NO.1 LH |
| 87284 | Resistor Sub-assy, Variable |
| 87566A | Hose, Air Duct |

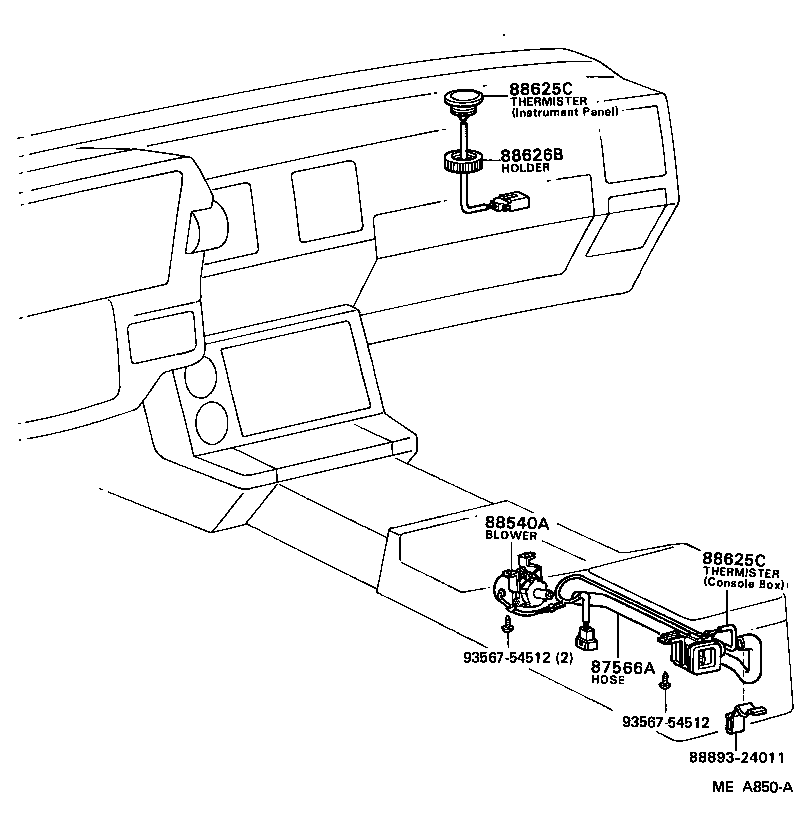

| 88540A | Blower Assy, Cooler |
| 88625C | Thermistor, Cooler |
| 88626B | Holder, Thermistor |
| 88648A | Wiring, Cooler |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
