Toyota Celica

1981-08 → 1985-12 · chassis AA63,TA60,SA63,RA6#,MA61 · catalogue 252230 · Europe

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

26 part groups · 8 illustrations

Illustrations

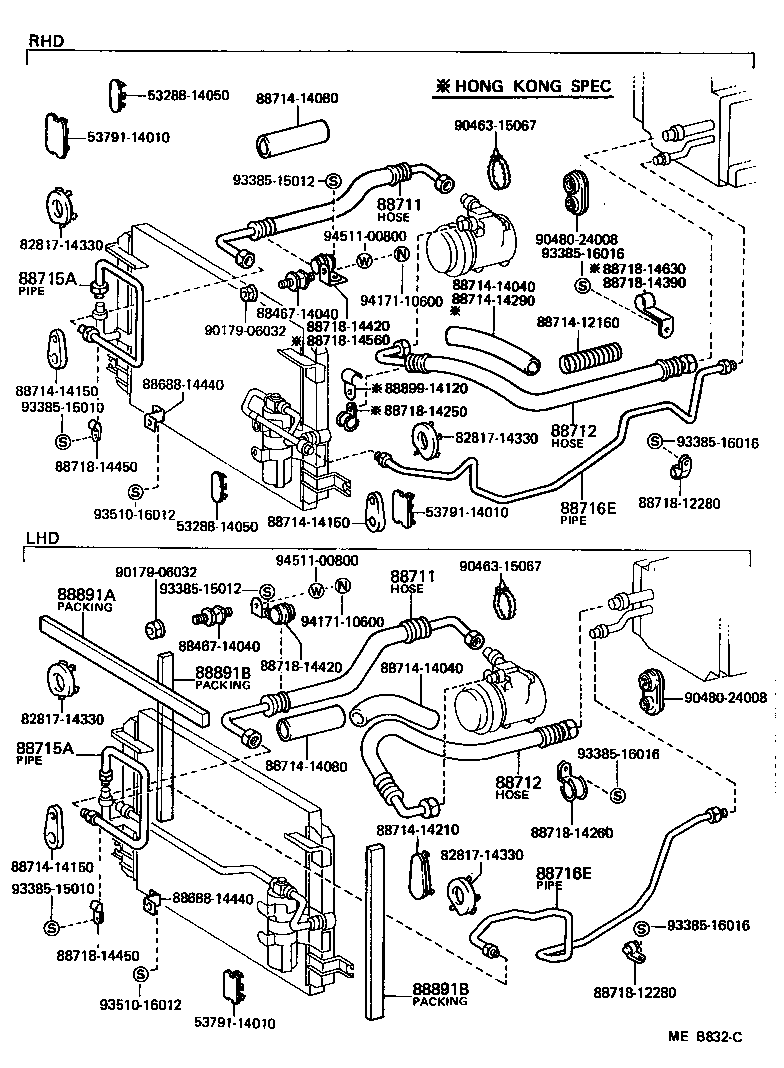

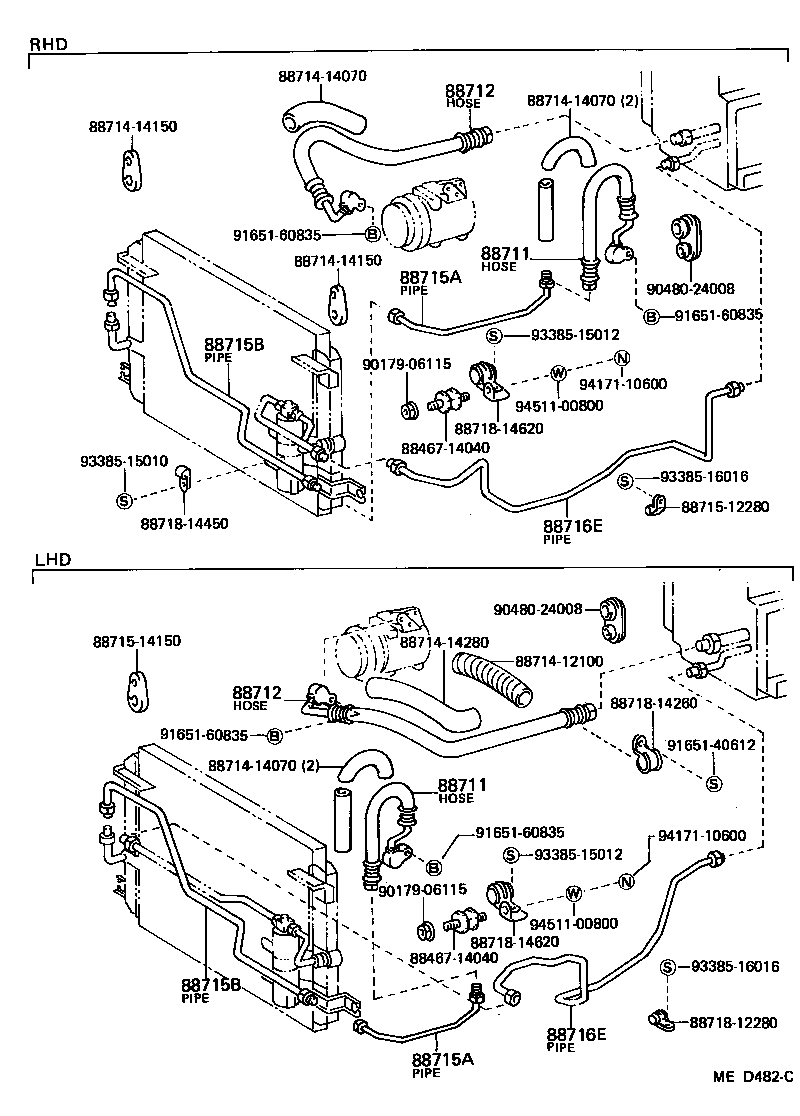

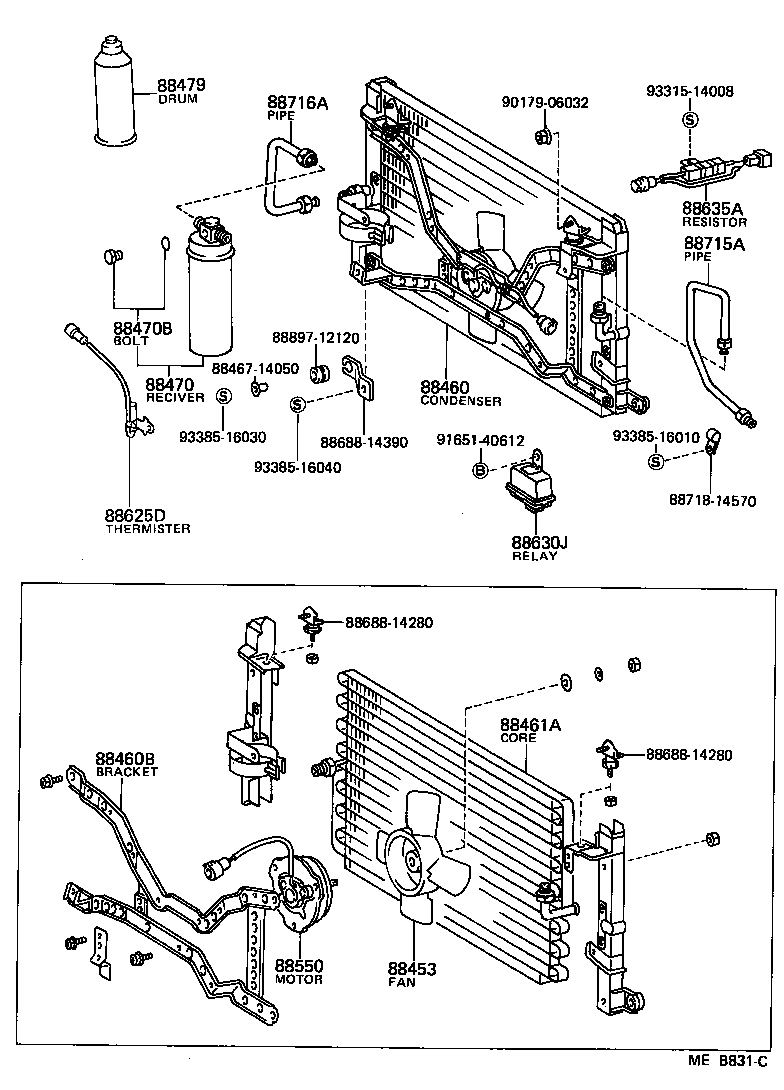

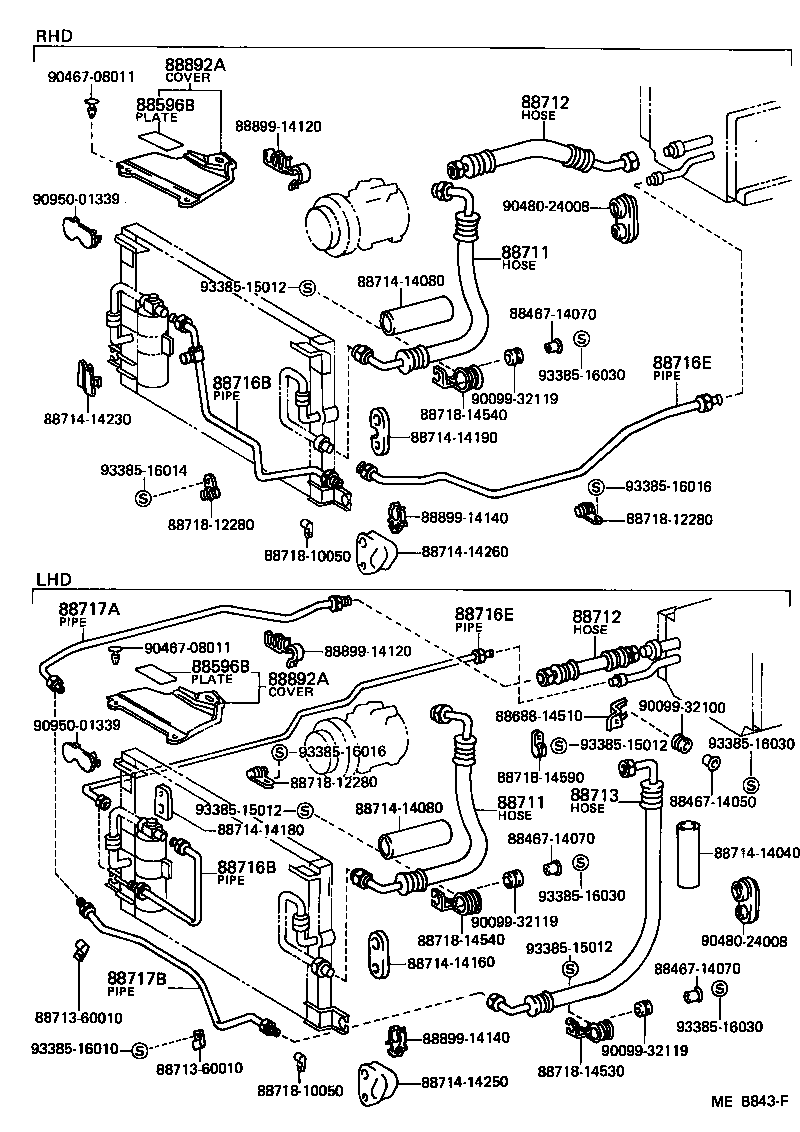

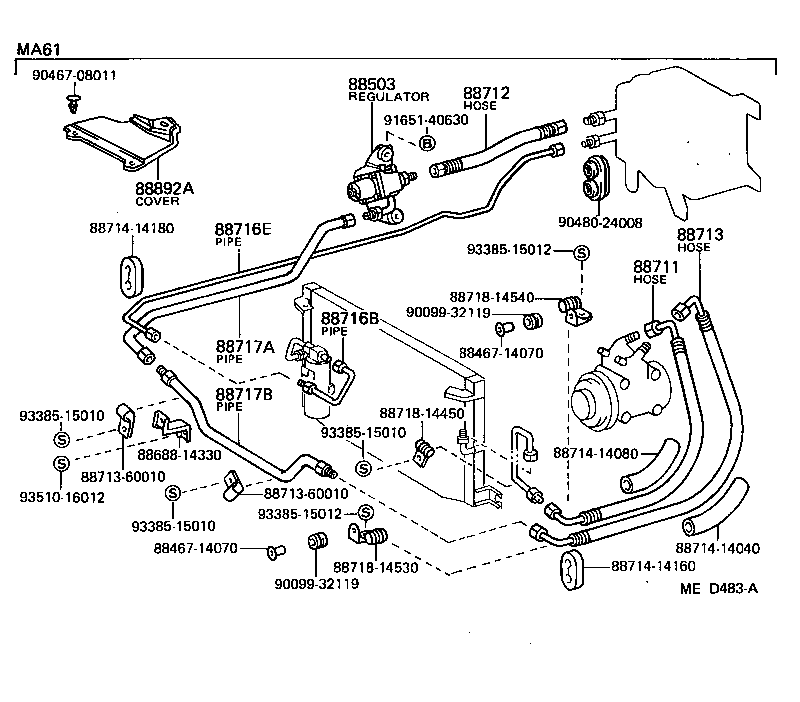

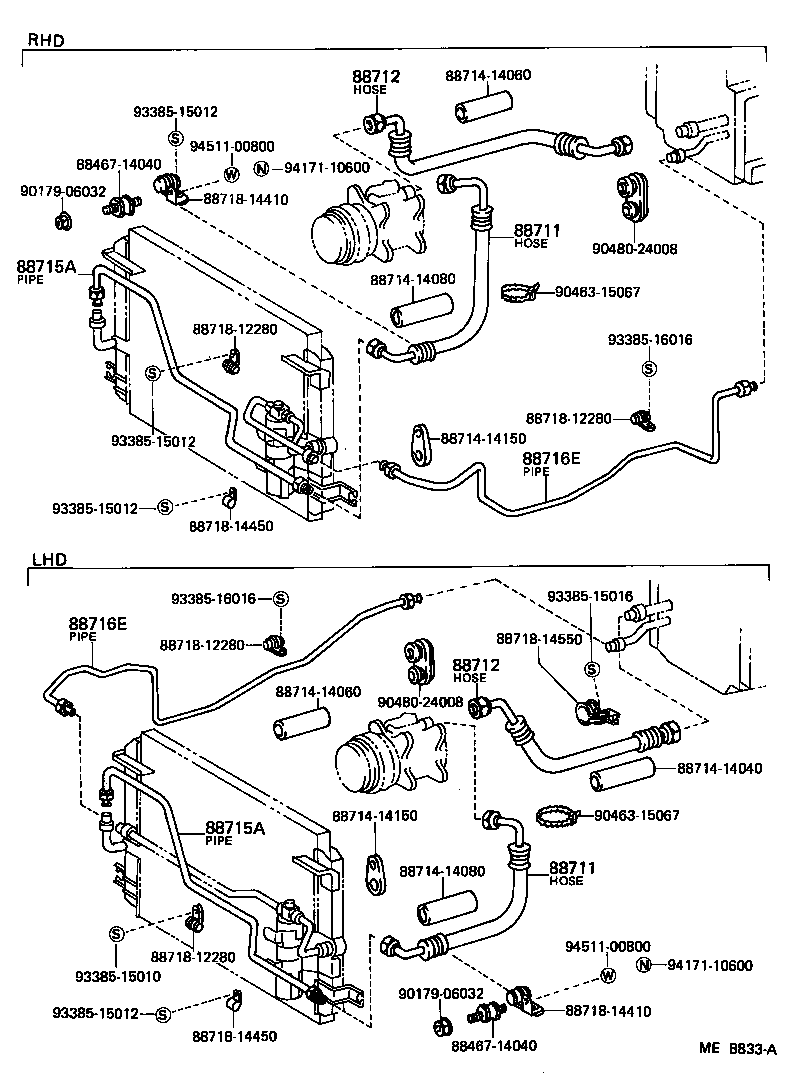

Figure MEB830 MEB830 1981-08 → 1985-07 Figure MEB830 MEB830 1981-08 → 1985-07 Figure MEB831C MEB831C 1981-12 → — Figure MEB832C MEB832C 1981-08 → 1985-07 Figure MED482C MED482C 1983-08 → 1985-07 Figure MEB833A MEB833A 1981-08 → 1983-08 Figure MEB843F MEB843F 1981-12 → — Figure MED483A MED483A 1983-08 → —

Part groups

PNCDescription
88453 Fan, Cooling (FOR CONDENSER)
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88461A Core, Cooler Condenser
88470 Receiver & Dryer Assy, Cooler
88470B Bolt, Fuse
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88503 Regulator Assy, Pressure
88550 Motor Assy, Blower (FOR CONDENSER)
88596B Plate, Caution, NO.1
88625D Thermistor, Cooler
88630J Relay Assy (FOR CONDENSER MOTOR)
88635A Resistor, Blower (FOR COOLER CONDENSER MOTOR)
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88713 Hose, Cooler Refrigerant Suction, NO.2
88715A Pipe, Cooler Refrigerant Discharge, A
88715B Pipe, Cooler Refrigerant Discharge, B
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88891A Packing A (FOR COOLER)
88891B Packing B (FOR COOLER)
88892A Bracket, Cooler Evaporator Mounting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
