Toyota Celica

1985-08 → 1987-08 · chassis ST16# · catalogue 252440 · Europe

Discontinued model Data version 1987-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

17 part groups · 3 illustrations

Illustrations

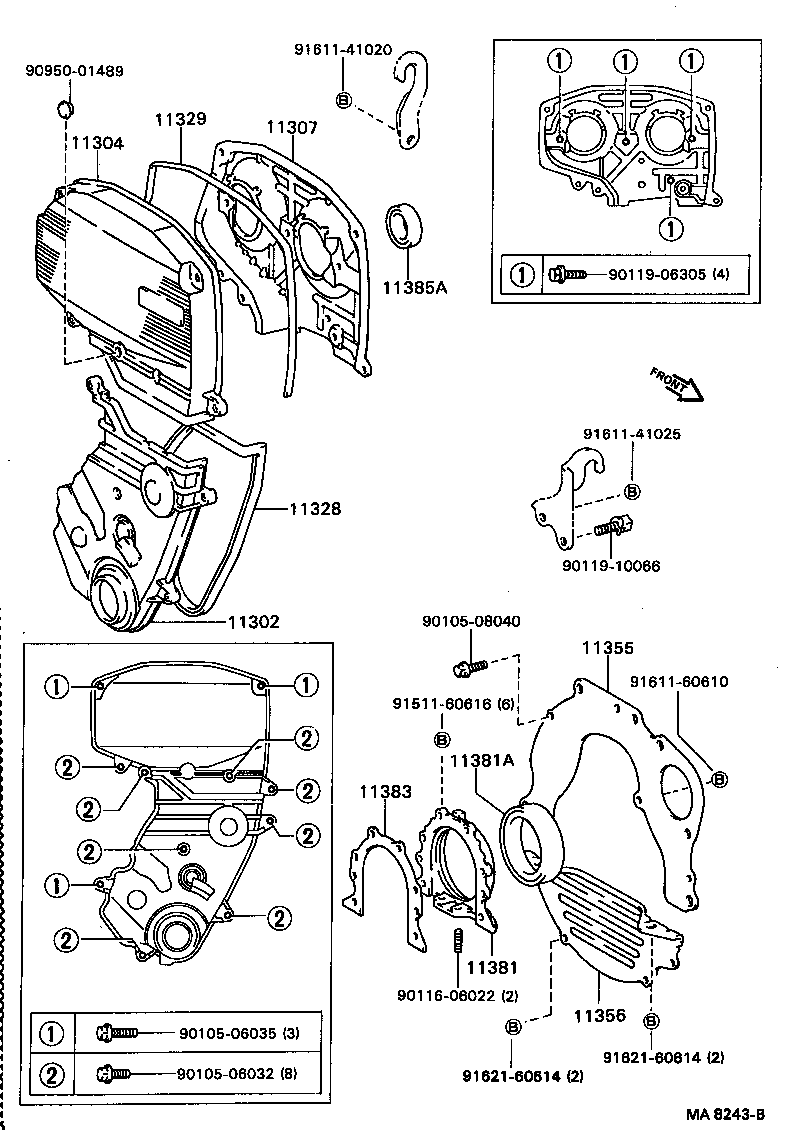

Figure MA5692B MA5692B 1985-08 → 1986-08 Figure MA8243B MA8243B 1985-08 → — Figure MA9016C MA9016C 1986-08 → —

Part groups

PNCDescription
11302 Cover Sub-assy, Timing Chain OR Belt
11304 Cover, Timing Chain OR Belt, NO.2
11304B Plug, Semi Circular(FOR CHAIN COVER NO.2)
11307 Cover, Sub-assy, Timing Belt, NO.3
11314 Gasket, Timing Chain NO.2 Cover
11328 Gasket, Timing Gear OR Chain Cover
11329 Gasket, Timing Gear Rear Cover
11338 Gasket, Timing Chain Cover, NO.2
11355 Plate, Rear End
11356 Plate, Rear End, NO.2
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11381B Bolt, Stud(FOR ENGINE REAR OIL SEAL RETAINER)
11383 Gasket, Engine Rear Oil Seal Retainer
11384 Gasket, Oil Seal Retainer, NO.2
11385 Retainer, Camshaft Oil Seal
11385A Seal, Oil(FOR CAMSHAFT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
