Toyota Celica

1985-08 → 1987-08 · chassis ST16# · catalogue 252440 · Europe

Discontinued model Data version 1987-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camshaft & Valve

23 part groups · 3 illustrations

Illustrations

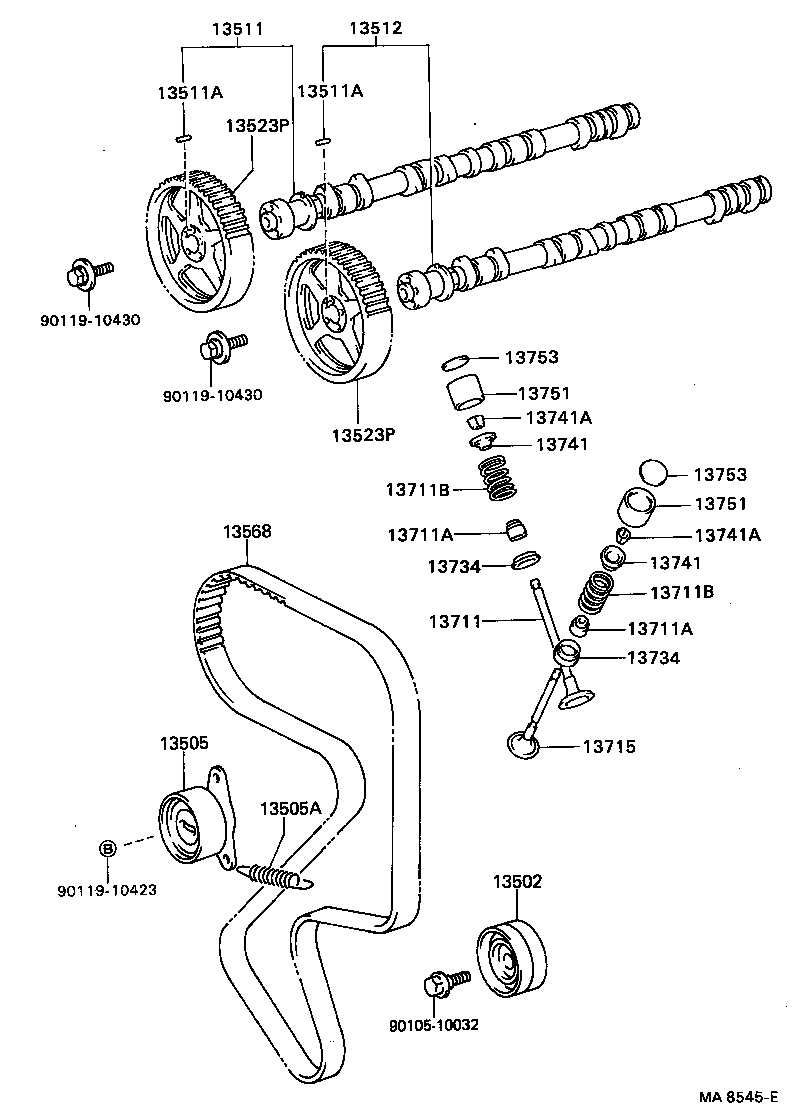

Figure MA5696A MA5696A 1985-08 → 1986-08 Figure MA8545E MA8545E 1985-08 → — Figure MA9020C MA9020C 1986-08 → —

Part groups

PNCDescription
13502 Idler Sub-assy, Timing Belt, NO.2
13505 Idler Sub-assy, Timing Belt, NO.1
13505A Spring, Tension(FOR IDLER)
13511 Camshaft
13511A Pin, Straight(FOR CAMSHAFT KNOCK)
13512 Camshaft, NO.2
13523P Pulley, Camshaft Timing
13529 Gear, Camshaft Sub
13558 Bracket, Spring(FOR IDLER)
13568 Belt, Timing
13579 Washer, Camshaft Timing Gear Bolt
13711 Valve, Intake
13711A Seal OR Ring, O(FOR VALVE STEM OIL)
13711B Spring, Compression(FOR INNER)
13711D Washer, Plate(FOR VALVE SPRING SEAT)
13715 Valve, Exhaust
13734 Seat, Valve Spring
13741 Retainer, Valve Spring
13741A Lock, Valve Spring Retainer
13750 Adjuster Assy, Valve Lash
13751 Lifter, Valve
13753 Shim, Valve Adjusting
13801 Arm Sub-assy, Valve Rocker, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
