Toyota Celica

1985-08 → 1987-08 · chassis ST16# · catalogue 252440 · Europe

Discontinued model Data version 1987-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

16 part groups · 4 illustrations

Illustrations

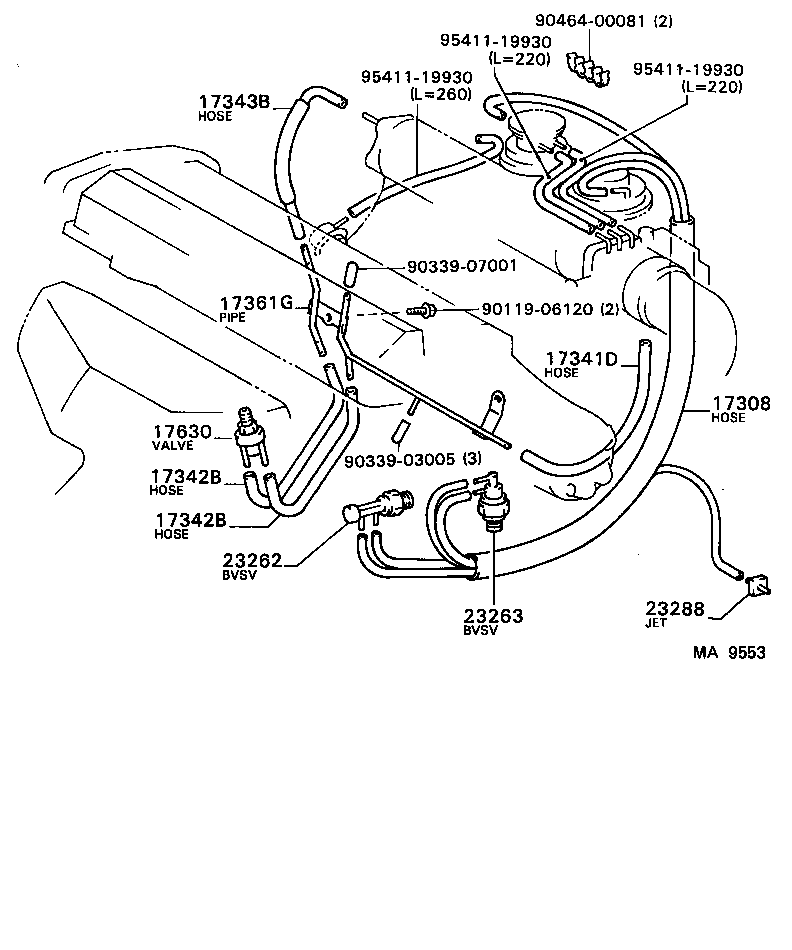

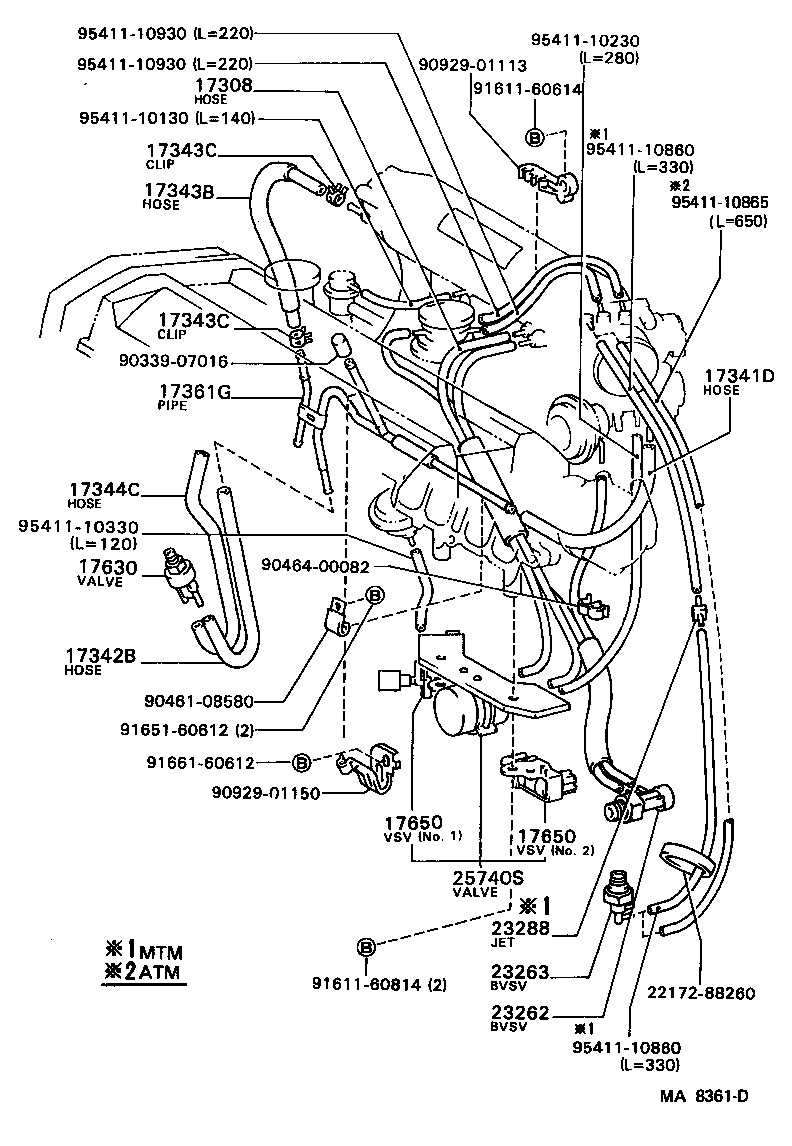

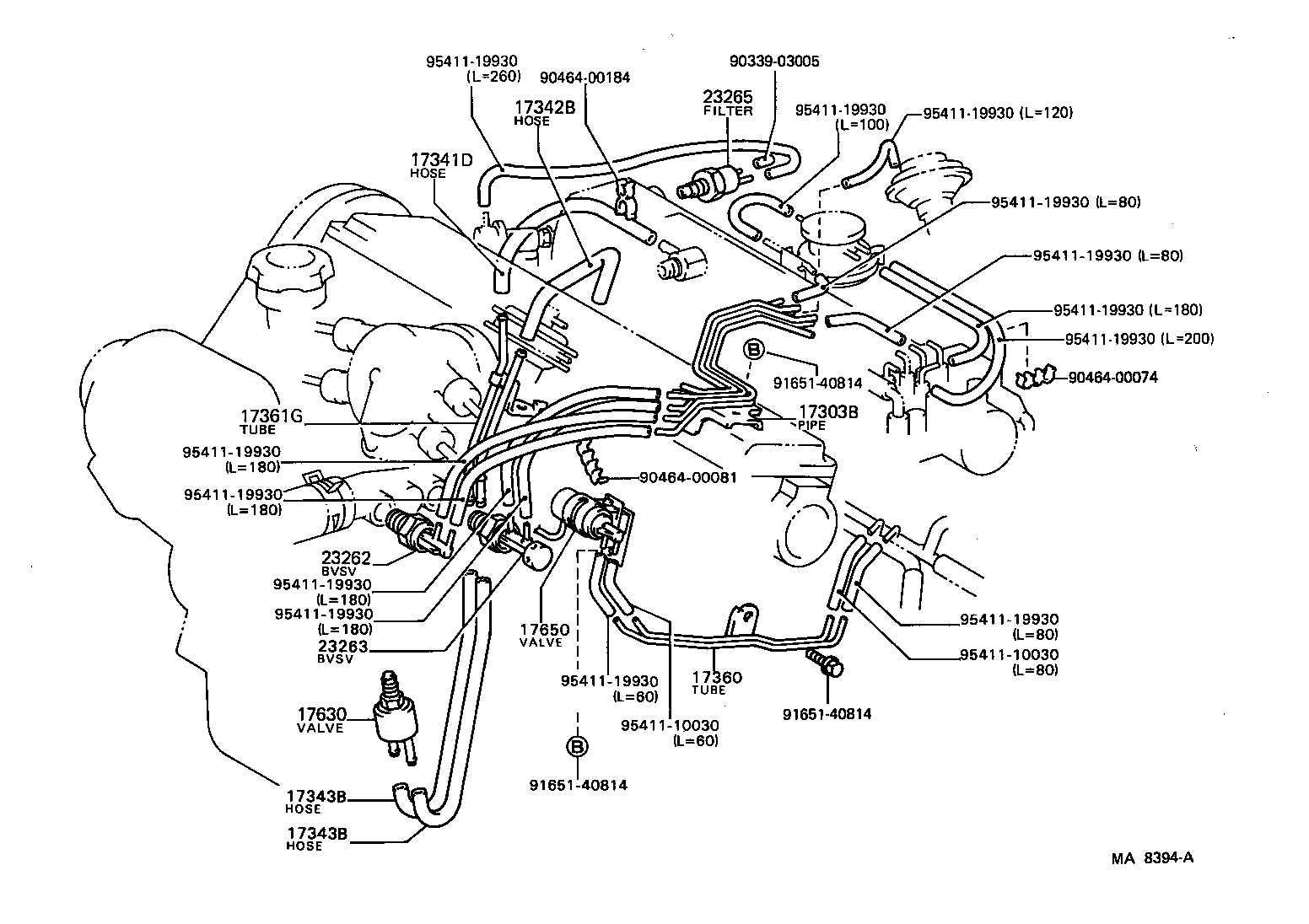

Figure MA9504A MA9504A 1985-08 → — Figure MA8394A MA8394A 1985-08 → 1986-08 Figure MA8361D MA8361D 1985-08 → — Figure MA9553 MA9553 1986-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17308 Hose Sub-assy, Vacuum(FOR IDLE-UP)
17341D Hose, NO.1(FOR IDLE-UP)
17342B Hose, NO.2(FOR IDLE-UP)
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17344C Hose, NO.4(FOR IDLE-UP)
17360 Tube Assy, Air
17361G Tube, Air(FOR IDLE-UP)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23288 Jet, NO.1
25740S Valve Assy, Air Control(FOR IDLE SPEED CONTROL)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
