Toyota Celica
1985-08 → 1987-08 · chassis ST16# · catalogue 252440 · Europe
Discontinued model
Data version 1987-08
Power Steering Tube

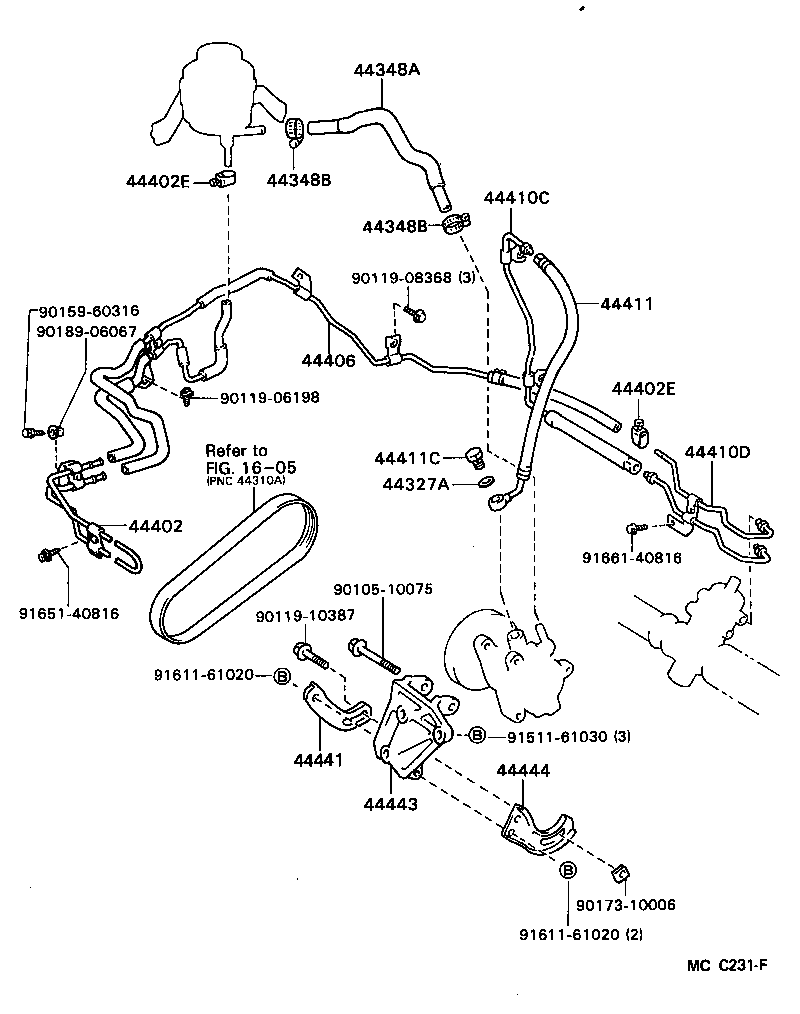

13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44327A | Gasket, Pressure Port, NO.1 |
| 44348A | Hose, Oil Reservoir TO Pump, NO.1 |
| 44348B | Clamp(FOR OIL RESERVOIR TO PUMP HOSE) |
| 44402 | Cooler Sub-assy, Power Steering Oil, NO.1 |
| 44402E | Clamp, Power Steering Oil Cooler Outlet Hose |
| 44406 | Tube Sub-assy, Return |
| 44410C | Tube Assy, Pressure Feed, NO.1 |
| 44410D | Tube Assy, Pressure Feed, NO.2 |
| 44411 | Hose, Pressure Feed |
| 44411C | Bolt, Union(FOR PRESSURE FEED HOSE) |
| 44441 | Bracket, Pump, Front |
| 44443 | Bracket, Pump |
| 44444 | Stay, Pump, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
