Toyota Celica

1985-08 → 1987-08 · chassis ST16# · catalogue 252440 · Europe

Discontinued model Data version 1987-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

12 part groups · 5 illustrations

Illustrations

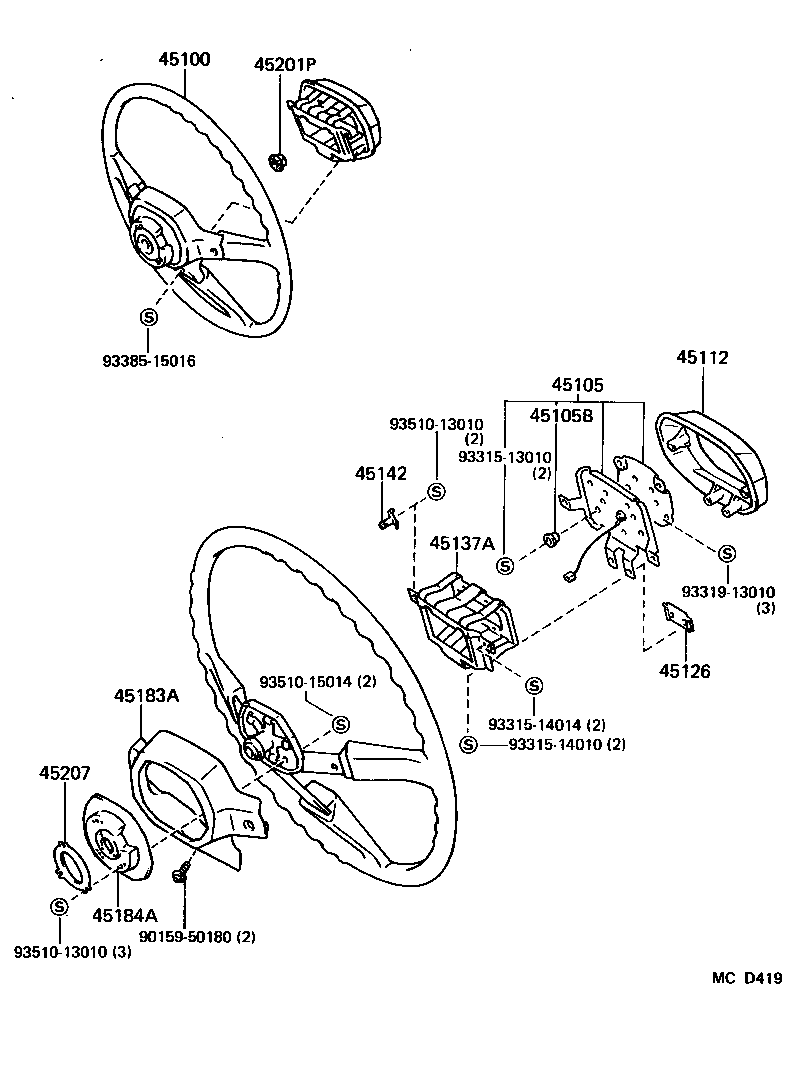

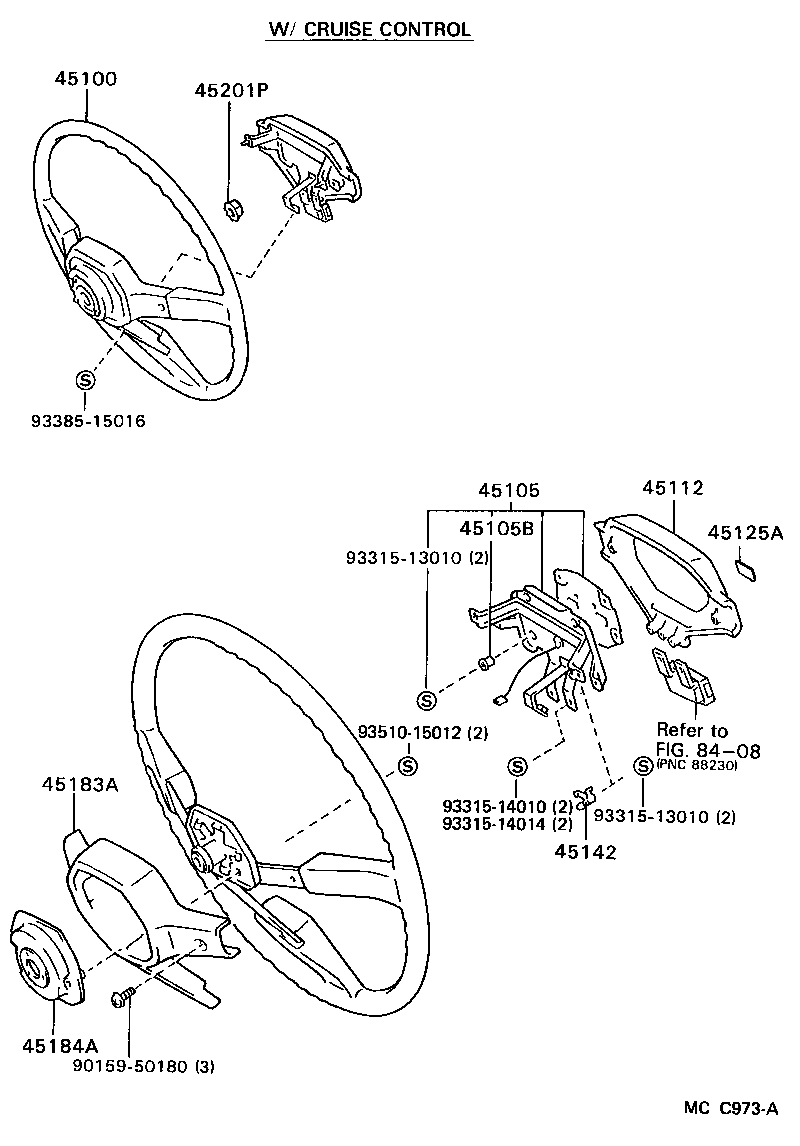

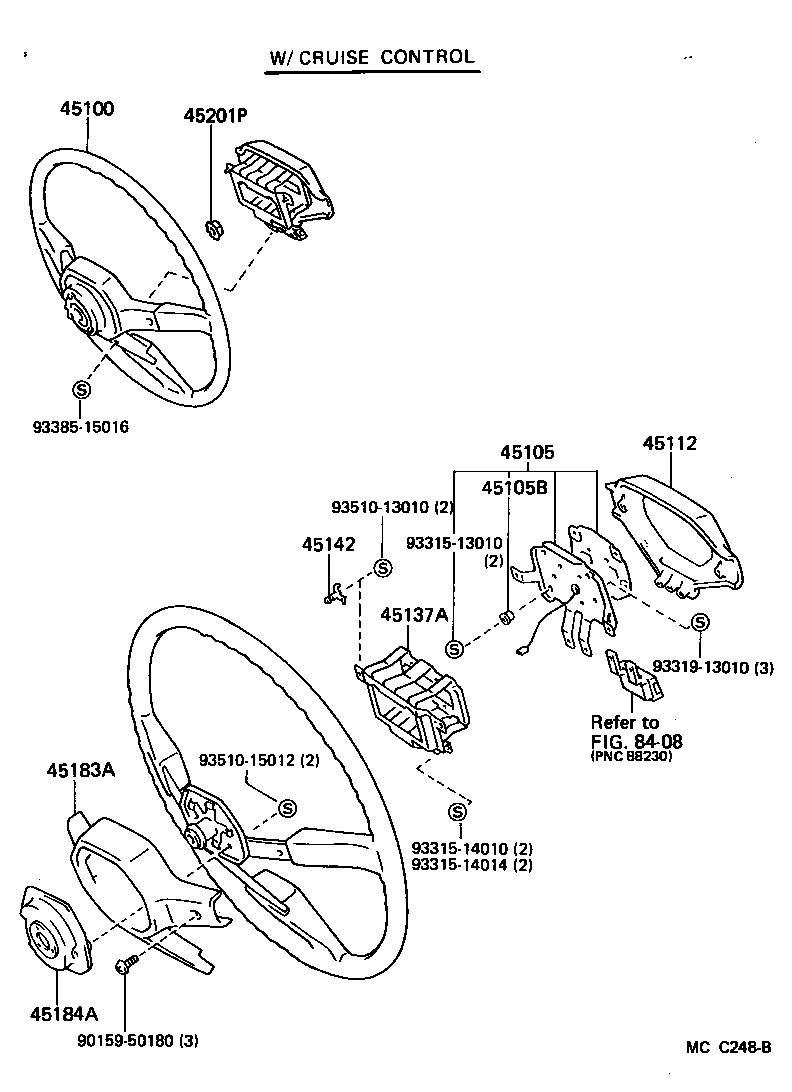

Figure MCC247A MCC247A 1985-08 → — Figure MCC207A MCC207A 1985-08 → — Figure MCD419 MCD419 1985-08 → — Figure MCC248B MCC248B 1985-08 → — Figure MCC973A MCC973A 1985-08 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45105B Spacer(FOR HORN BUTTON CONTACT PLATE)
45112 Pad, Steering Wheel
45125A Mark, Horn
45126 Plate, Steering Wheel Pad Set
45137A Plate, Horn Button Contact, NO.2
45142 Seat, Horn Button Contact, NO.1
45183A Cover, Steering Wheel Boss, Lower NO.1
45184A Cover, Steering Wheel Boss, Lower NO.2
45201P Nut, Steering Wheel Set
45207 Ring, Horn Contact
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
