Toyota Celica

1985-08 → 1987-08 · chassis ST16# · catalogue 252440 · Europe

Discontinued model Data version 1987-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

8 part groups · 2 illustrations

Illustrations

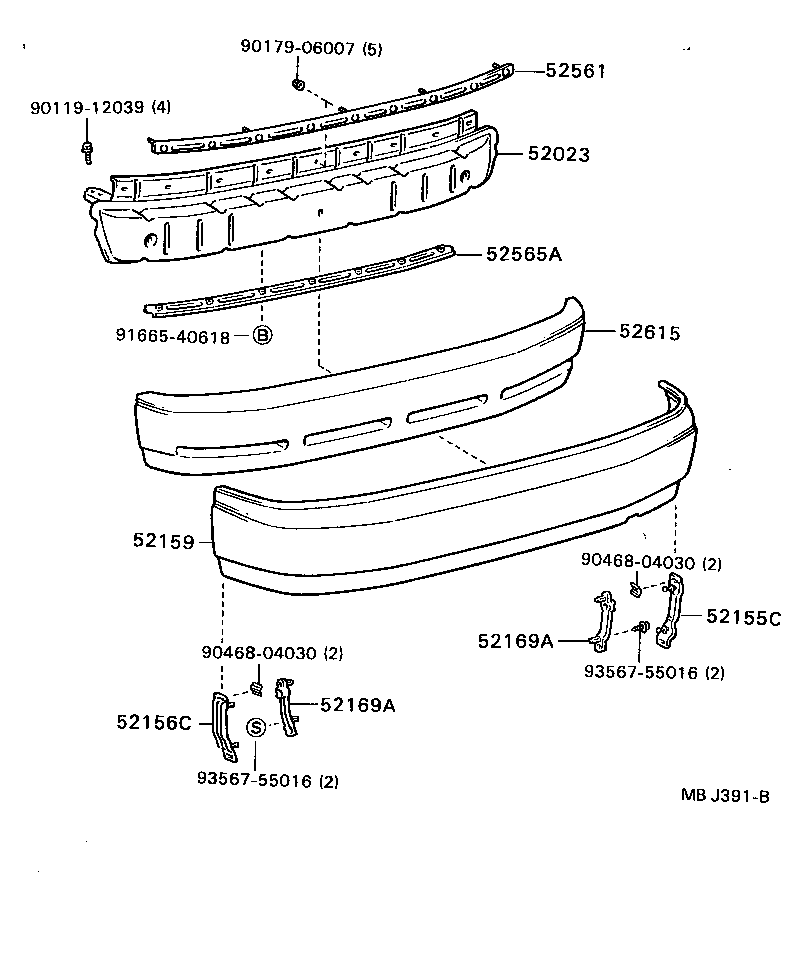

Figure MBJ390B MBJ390B 1985-08 → — Figure MBJ391B MBJ391B 1985-08 → —

Part groups

PNCDescription
52023 Reinforcement Sub-assy, Rear Bumper
52155C Support, Rear Bumper Side, NO.1 RH
52156C Support, Rear Bumper Side, NO.1 LH
52159 Cover, Rear Bumper
52169A Support, Rear Bumper Side, NO.3
52561 Retainer, Rear Bumper, Upper Center
52565A Retainer, Rear Bumper, Lower
52615 Absorber, Rear Bumper Energy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
