Toyota Celica
1985-08 → 1987-08 · chassis ST16# · catalogue 252440 · Europe
Discontinued model
Data version 1987-08

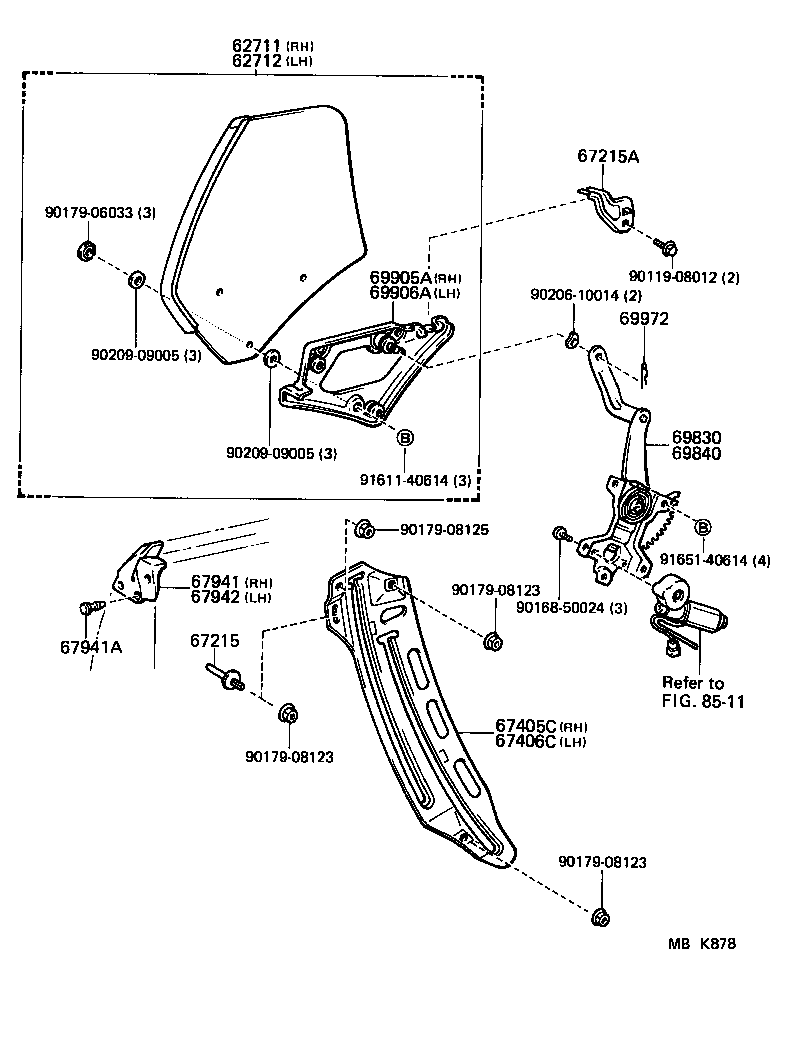

Quarter Window
19 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 62711 | Glass, Quarter Window, RH |
| 62712 | Glass, Quarter Window, LH |
| 62765H | Retainer, Quarter Window Glass, Lower |
| 62767B | Retainer, Quarter Window Glass, Rear |
| 62775A | Clip, Quarter Window |
| 62785A | Spacer, Quarter Window Glass |
| 67215 | Stopper, Quarter Window, Upper Front |
| 67215A | Stopper, Quarter Window, Upper |
| 67405C | Guide Sub-assy, Quarter Window, RH |
| 67406C | Guide Sub-assy, Quarter Window, LH |
| 67941 | Weatherstrip, Quarter Lock Pillar, RH |
| 67941A | Clip(FOR QUARTER LOCK PILLAR WEATHERSTRIP) |
| 67942 | Weatherstrip, Quarter Lock Pillar, LH |
| 69830 | Regulator Assy, Rear Quarter Window, RH |
| 69840 | Regulator Assy, Rear Quarter Window, LH |
| 69905A | Bracket Sub-assy, Quarter Window Glass, RH |
| 69906A | Bracket Sub-assy, Quarter Window Glass, LH |
| 69972 | Pin, Quarter Glass Channel Setting |
| 75049 | Clip Sub-assy, Quarter Window, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
