Toyota Celica
1985-08 → 1987-08 · chassis ST16# · catalogue 252440 · Europe
Discontinued model
Data version 1987-08

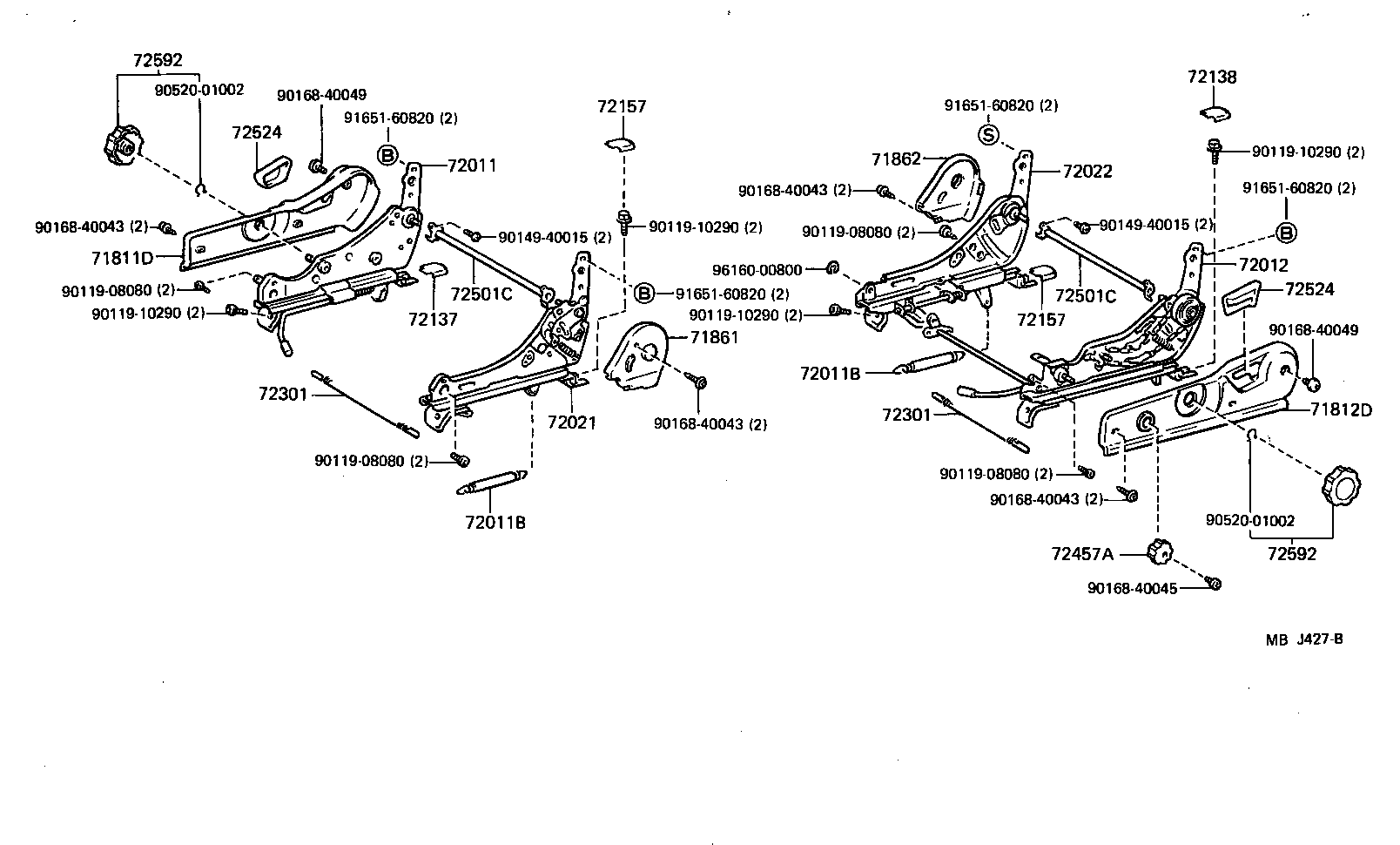

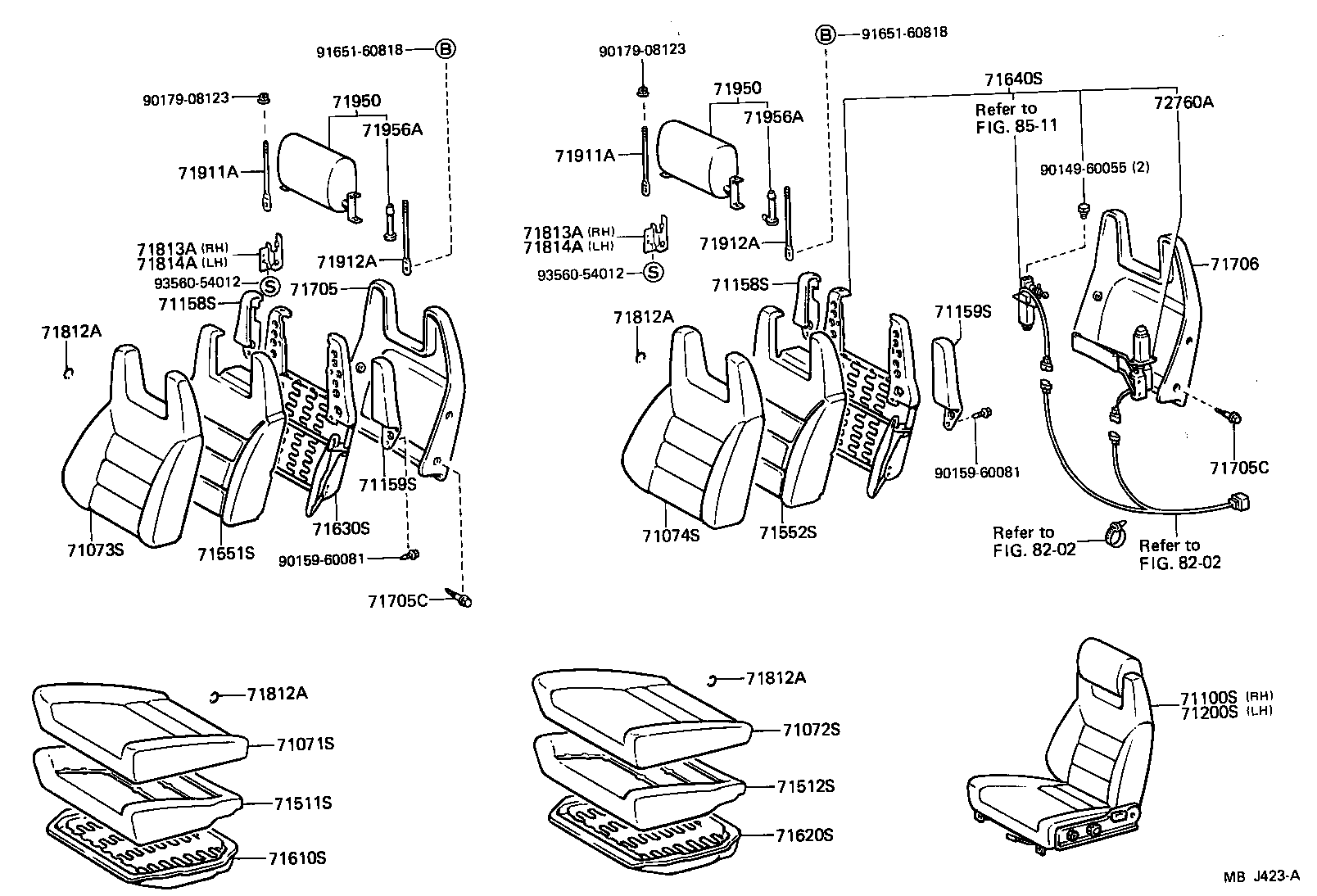

Front Seat & Seat Track
52 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71100S | Seat Assy, Front RH |
| 71158S | Frame, Front Seatback, Upper RH |
| 71159S | Frame, Front Seatback, Upper LH |
| 71200S | Seat Assy, Front LH |
| 71505 | Pad Sub-assy, Front Seatback W/Frame, RH |
| 71506 | Pad Sub-assy, Front Seatback W/Frame, LH |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71553B | Pad, Front Seatback, B |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71620S | Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71705 | Board Sub-assy, Front Seatback, RH |
| 71705C | Screw(FOR FRONT SEATBACK BOARD) |
| 71706 | Board Sub-assy, Front Seatback, LH |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812A | Ring, Hog, Small (FOR FRONT SEAT) |
| 71812D | Shield, Front Seat Cushion, LH |
| 71813A | Shield, Front Seatback, RH |
| 71814A | Shield, Front Seatback, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71911A | Stay, Front Seat Headrest, RH |
| 71912A | Stay, Front Seat Headrest, LH |
| 71950 | Headrest Assy, Front Seat |
| 71956A | Support, Front Seat Headrest |
| 72011 | Adjuster Sub-assy, Front Seat, Outer RH |
| 72011B | Spring, Tension (FOR FRONT SEAT ADJUSTER OUTER) |
| 72012 | Adjuster Sub-assy, Front Seat, Outer LH |
| 72021 | Adjuster Sub-assy, Front Seat, Inner RH |
| 72022 | Adjuster Sub-assy, Front Seat, Inner LH |
| 72137 | Cover, Seat Track, Outer RH |
| 72138 | Cover, Seat Track, Outer LH |
| 72157 | Cover, Seat Track Bracket, Inner |
| 72301 | Wire Sub-assy, Seat Track Equalizing |
| 72457A | Knob, Seat Adjuster |
| 72501C | Pipe Sub-assy, Reclining Connecting |
| 72524 | Handle, Reclining Adjuster Release |
| 72592 | Knob, Reclining Adjuster |
| 72760A | Adjuster Assy, Lumbar Support |
| 72774 | Protector, Lumbar Support Spring |
| 72791 | Lever, Lumbar Support |
| 73172A | Cap, Front Shoulder Belt Hanger |
| 73176 | Hanger, Front Shoulder Belt, RH (FOR FRONT SEAT) |
| 73177 | Hanger, Front Shoulder Belt, LH (FOR FRONT SEAT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
