Toyota Celica

1985-08 → 1987-08 · chassis ST16# · catalogue 252440 · Europe

Discontinued model Data version 1987-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

14 part groups · 3 illustrations

Illustrations

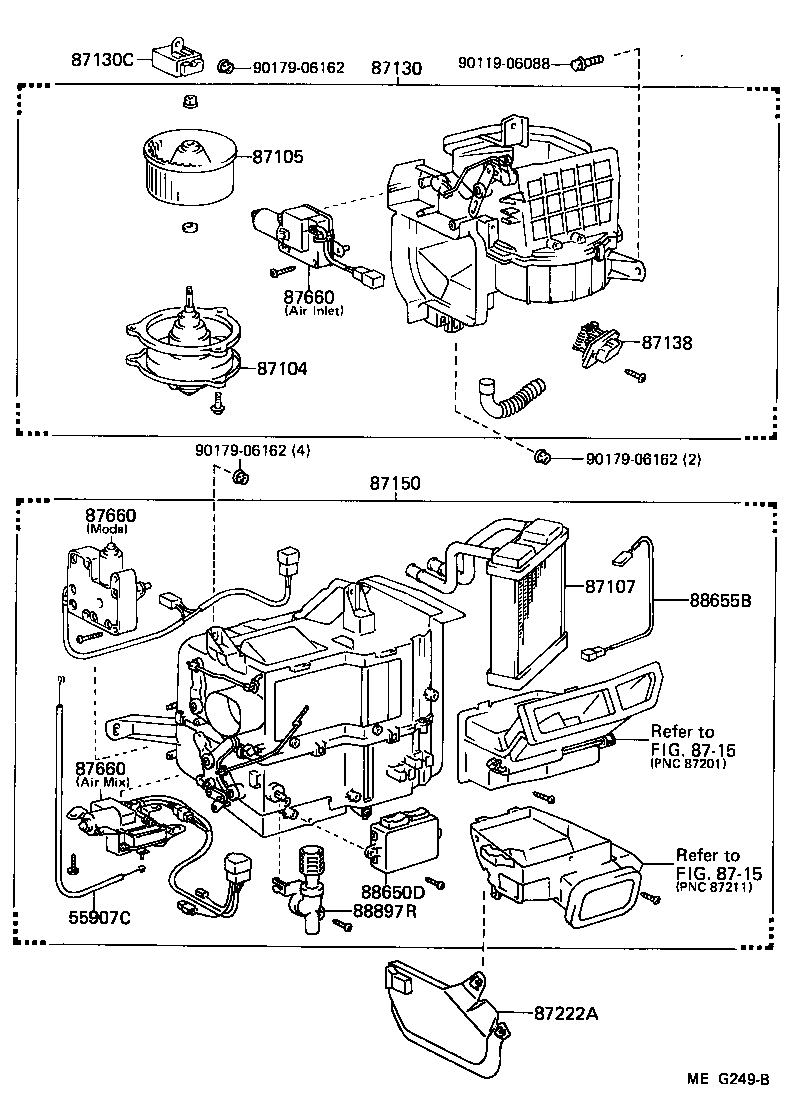

Figure MEG248A MEG248A 1985-08 → — Figure MEG249B MEG249B 1985-08 → — Figure MEG250 MEG250 1985-08 → —

Part groups

PNCDescription
55907C Cable Sub-assy, Water Valve Control
87104 Motor Sub-assy, Heater Blower
87105 Fan Sub-assy, Heater Blower
87107 Unit Sub-assy, Heater Radiator
87130 Blower Assy, Heater, Front
87130C Relay, Heater Blower Motor
87138 Resistor, Heater Blower
87150 Radiator Assy, Heater
87222A Protector, Air Duct
87660 Servo Assy, Air Conditioner
88650D Amplifier Assy
88655B Switch, Water Temperature
88897R Aspirator
88910 Ventilator Assy, Boost
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
