Toyota Celica

1985-08 → 1987-08 · chassis ST16# · catalogue 252440 · Europe

Discontinued model Data version 1987-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

17 part groups · 4 illustrations

Illustrations

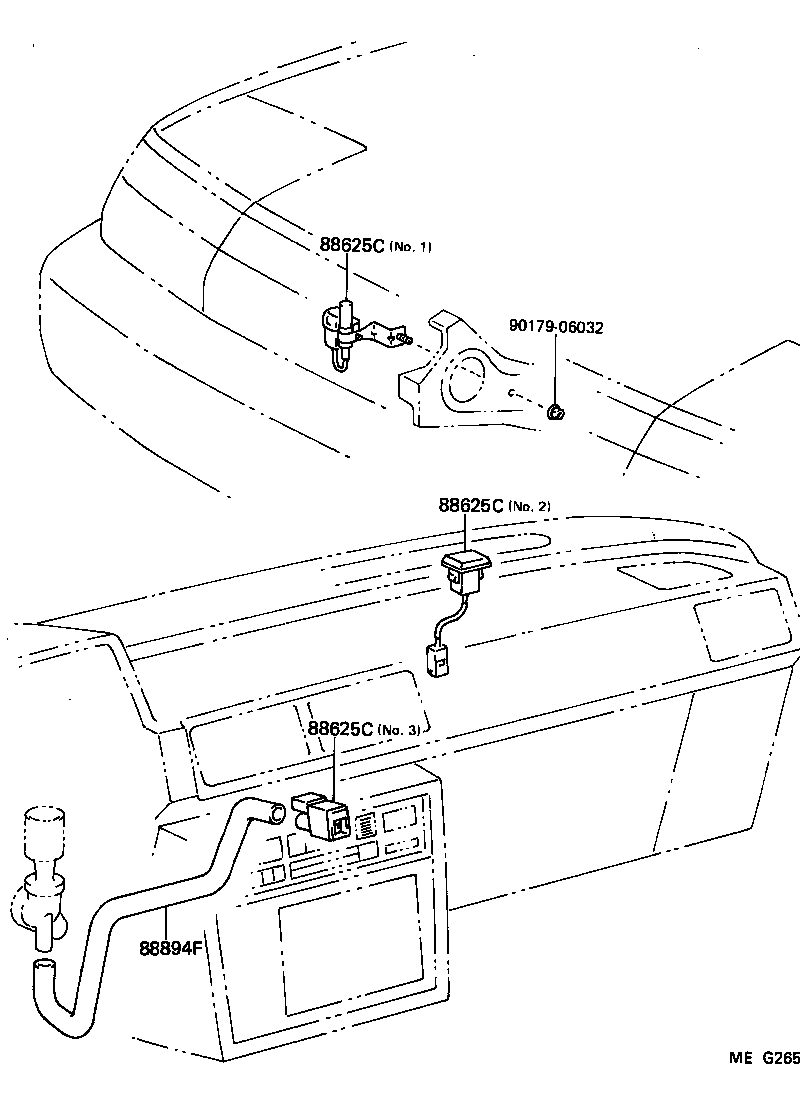

Figure MEG256B MEG256B 1985-08 → — Figure MEG257A MEG257A 1985-08 → — Figure MEG263 MEG263 1985-08 → — Figure MEG265 MEG265 1985-08 → —

Part groups

PNCDescription
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55910B Bulb, Heater Control
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87211 Duct, Air, NO.1
87212 Duct, Air, Rear NO.1
87214 Duct, Air, Side NO.1 RH
87215 Duct, Air, Side NO.1 LH
87215B Duct, Air, Side NO.3 LH
87284 Resistor Sub-assy, Variable
88625C Thermistor, Cooler
88894F Hose, Air
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
