Toyota Celica

1987-08 → 1989-08 · chassis ST16# · catalogue 252450 · Europe

Discontinued model Data version 1989-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

15 part groups · 3 illustrations

Illustrations

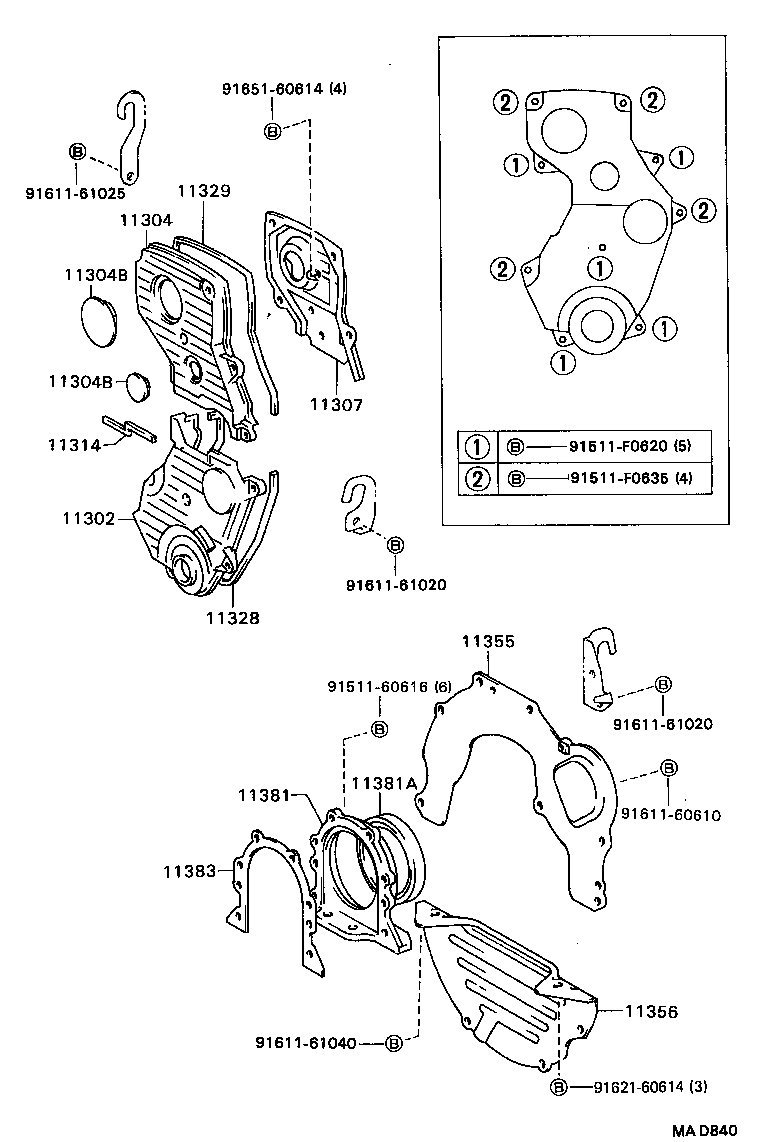

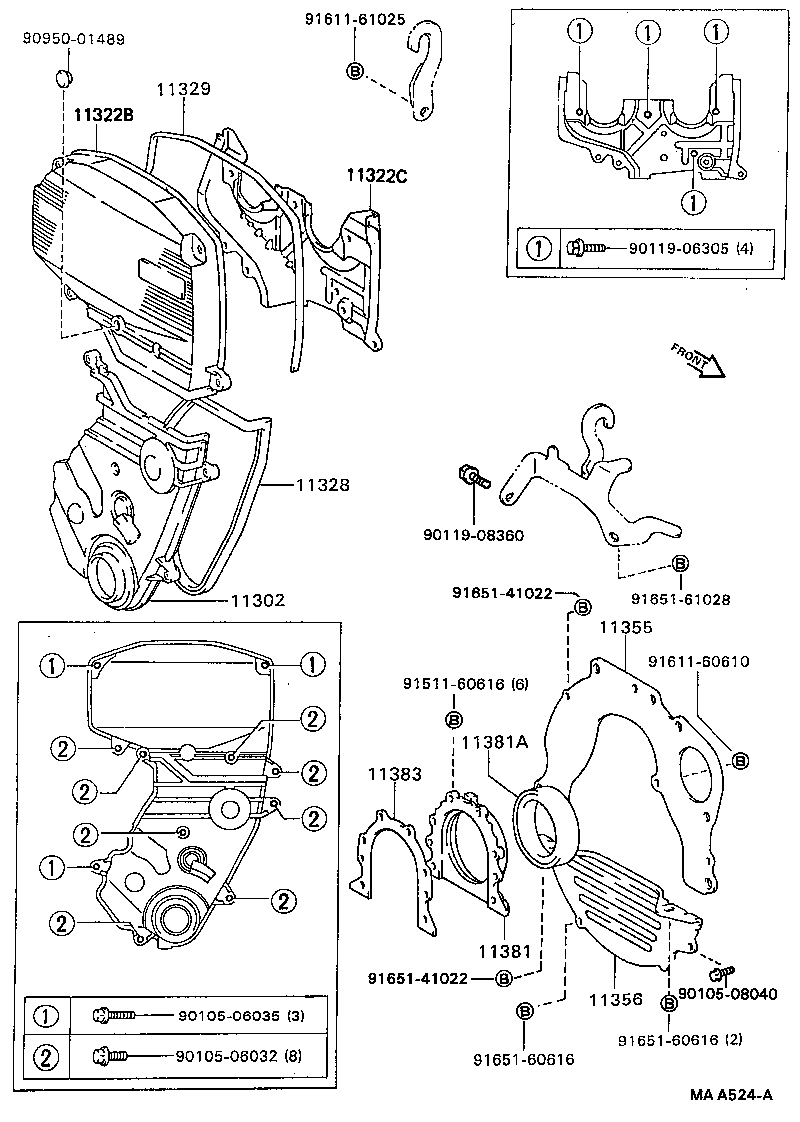

Figure MA9057C MA9057C 1987-08 → — Figure MAD840 MAD840 1987-08 → — Figure MAA524A MAA524A 1987-10 → —

Part groups

PNCDescription
11302 Cover Sub-assy, Timing Chain OR Belt
11304 Cover, Timing Chain OR Belt, NO.2
11304B Plug, Semi Circular(FOR CHAIN COVER NO.2)
11307 Cover, Sub-assy, Timing Belt, NO.3
11314 Gasket, Timing Chain NO.2 Cover
11322B Cover, Timing Belt, NO.2
11322C Cover, Timing Belt, NO.3
11328 Gasket, Timing Gear OR Chain Cover
11329 Gasket, Timing Gear Rear Cover
11355 Plate, Rear End
11356 Plate, Rear End, NO.2
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11383 Gasket, Engine Rear Oil Seal Retainer
11385A Seal, Oil(FOR CAMSHAFT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
