Toyota Celica

1987-08 → 1989-08 · chassis ST16# · catalogue 252450 · Europe

Discontinued model Data version 1989-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

20 part groups · 3 illustrations

Illustrations

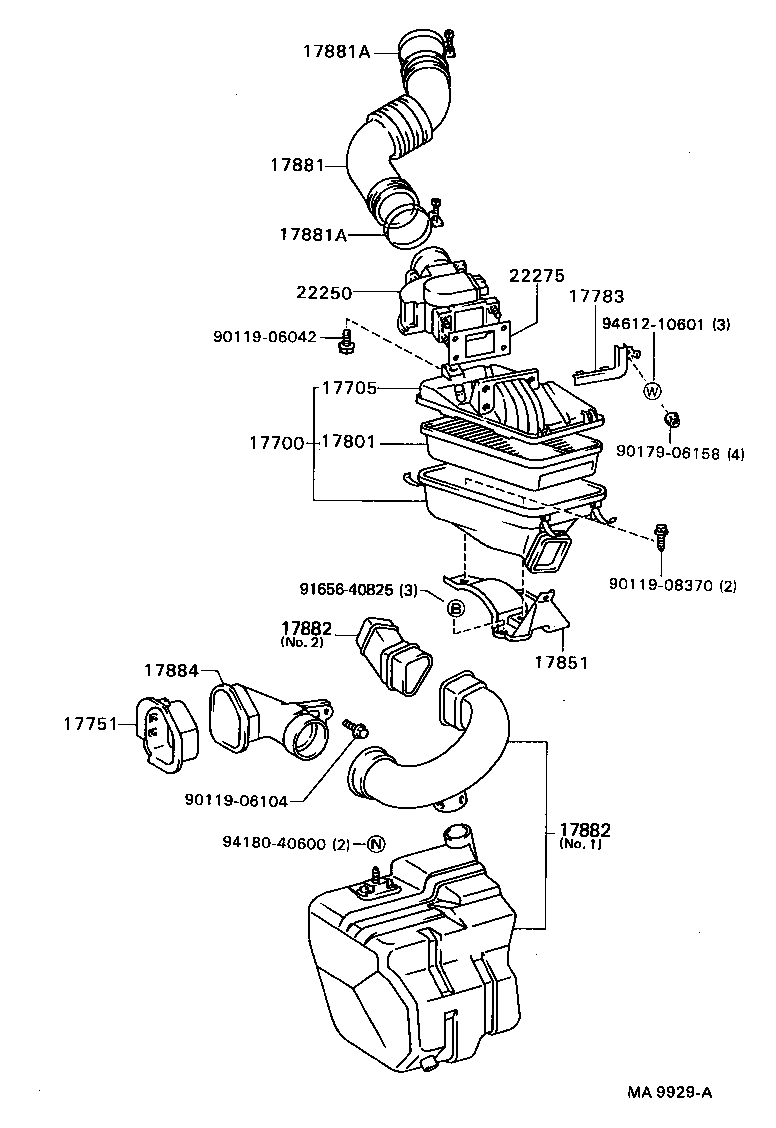

Figure MA9755 MA9755 1987-08 → — Figure MA9929A MA9929A 1987-08 → — Figure MAA530B MAA530B 1987-10 → —

Part groups

PNCDescription
17341F Hose, Air, NO.1
17341G Clamp OR Clip(FOR AIR HOSE, NO.1)
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17783 Plate, Air Cleaner Baffle
17801 Element Sub-assy, Air Cleaner Filter
17851 Bracket, Air Cleaner Support
17861 Connector, Intake Air
17861D Clamp(FOR INTAKE AIR CONNECTOR)
17871 Stay, Air Connector
17875 Pipe, Intake Air Connector
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17884 Hose, Air Cleaner, NO.4
17889 Box, Air Cleaner Hose, NO.2
22250 Meter Assy, Intake Air Flow
22275 Gasket, Air Flow Meter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
