Toyota Celica
1987-08 → 1989-08 · chassis ST16# · catalogue 252450 · Europe
Discontinued model
Data version 1989-08

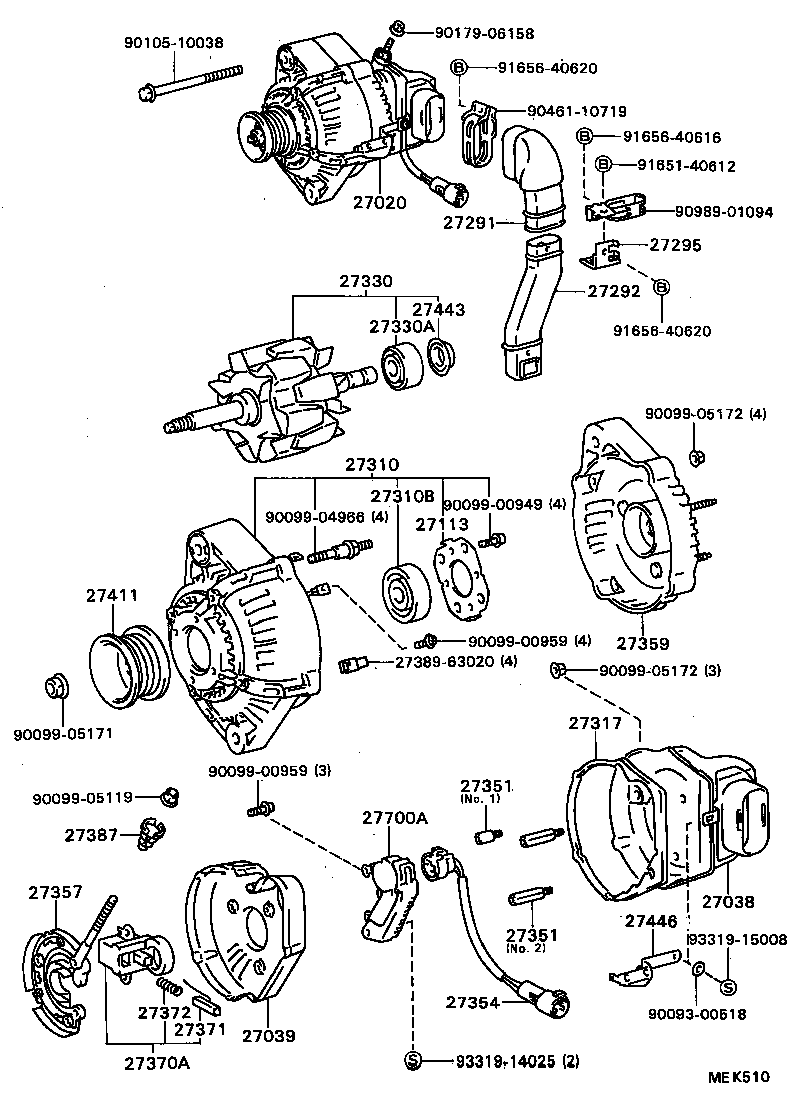

Alternator
24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 27020 | Alternator Assy |
| 27038 | Duct Sub-assy, Alternator Air |
| 27039 | Cover, Alternator Rear End |
| 27113 | Plate, Bearing Retainer, Alternator |
| 27291 | Duct, Alternator, NO.1 |
| 27292 | Duct, Alternator, NO.2 |
| 27295 | Bracket, Alternator Duct |
| 27310 | Frame Assy, Drive End, Alternator |
| 27310B | Bearing(FOR ALTERNATOR DRIVE END FRAME) |
| 27317 | Packing, Cover, Rear End |
| 27330 | Rotor Assy, Alternator |
| 27330A | Bearing(FOR ALTERNATOR ROTOR) |
| 27351 | Bush(FOR ALTERNATOR RECTIFIER END FRAME) |
| 27354 | Wire Sub-assy, Alternator Lead |
| 27357 | Holder, Alternator, W/Rectifier |
| 27359 | Frame, Alternator Rectifier End |
| 27370A | Holder Assy, Alternator Brush |
| 27371 | Brush, Alternator |
| 27372 | Spring, Alternator Brush |
| 27387 | Insulator, Terminal |
| 27411 | Pulley, Alternator |
| 27443 | Cover, Alternator Bearing |
| 27446 | Clip, Alternator Cord |
| 27700A | Regulator Assy, Generator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
