Toyota Celica

1987-08 → 1989-08 · chassis ST16# · catalogue 252450 · Europe

Discontinued model Data version 1989-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

14 part groups · 3 illustrations

Illustrations

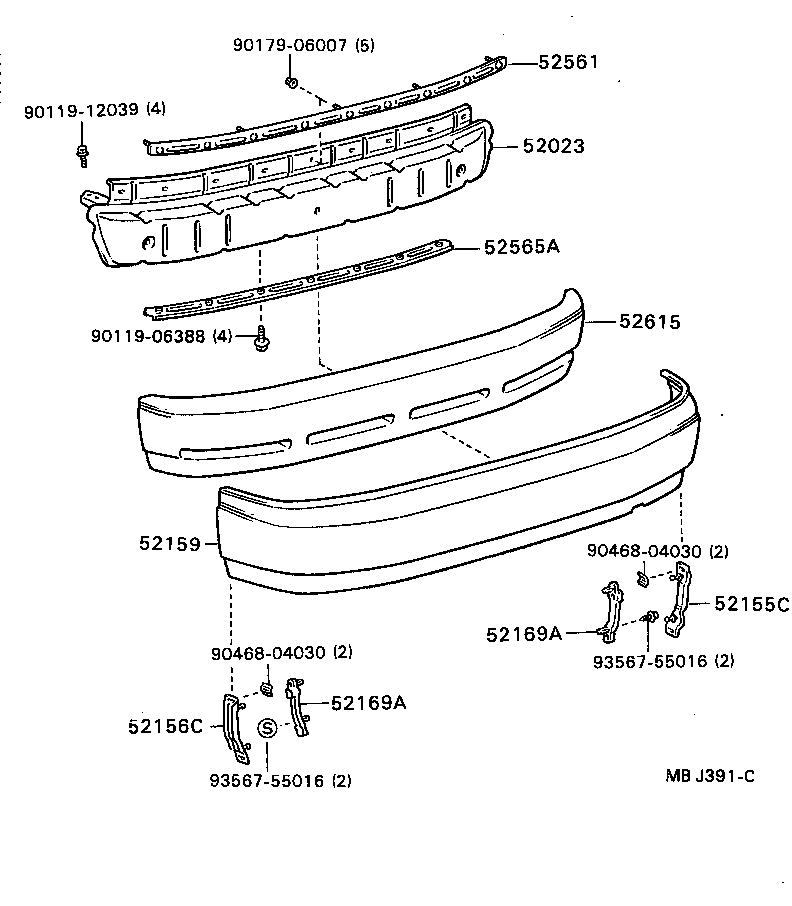

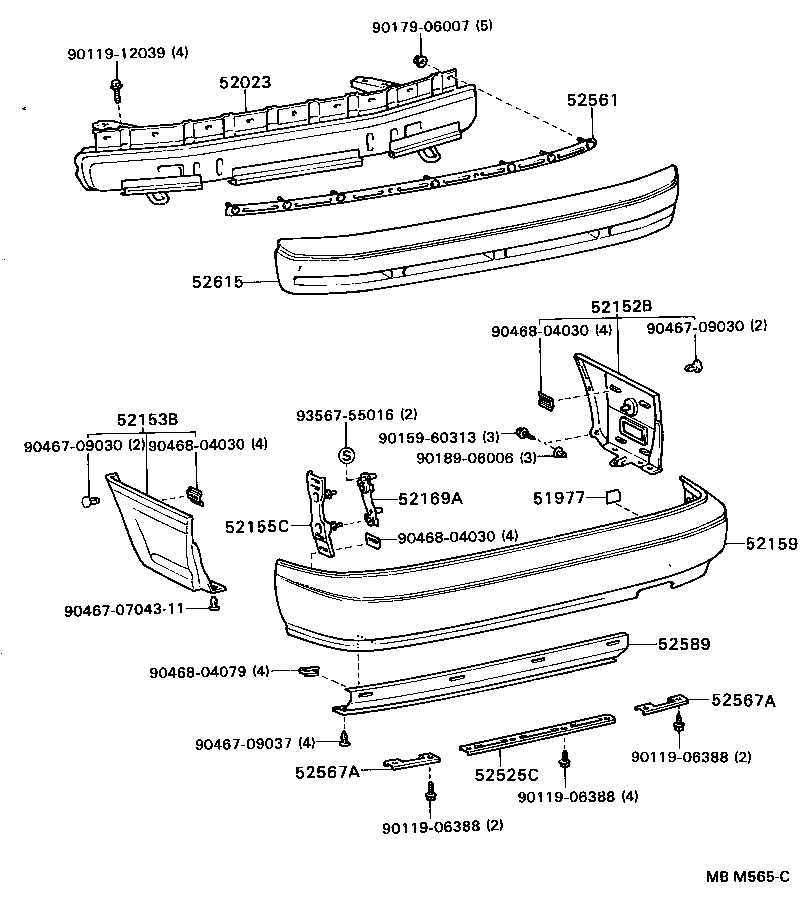

Figure MBJ390C MBJ390C 1987-08 → — Figure MBJ391C MBJ391C 1987-08 → — Figure MBM565C MBM565C 1987-10 → —

Part groups

PNCDescription
51977 Protector, Rear Transport Hook Edge
52023 Reinforcement Sub-assy, Rear Bumper
52152B Extension, Rear Bumper, RH
52153B Extension, Rear Bumper, LH
52155C Support, Rear Bumper Side, NO.1 RH
52156C Support, Rear Bumper Side, NO.1 LH
52159 Cover, Rear Bumper
52169A Support, Rear Bumper Side, NO.3
52525C Retainer, Rear Bumper, Lower Center
52561 Retainer, Rear Bumper, Upper Center
52565A Retainer, Rear Bumper, Lower
52567A Retainer, Rear Bumper, Lower Side
52589 Retainer, Rear Bumper End, NO.2
52615 Absorber, Rear Bumper Energy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
