Toyota Celica

1987-08 → 1989-08 · chassis ST16# · catalogue 252450 · Europe

Discontinued model Data version 1989-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Quarter Window

19 part groups · 3 illustrations

Illustrations

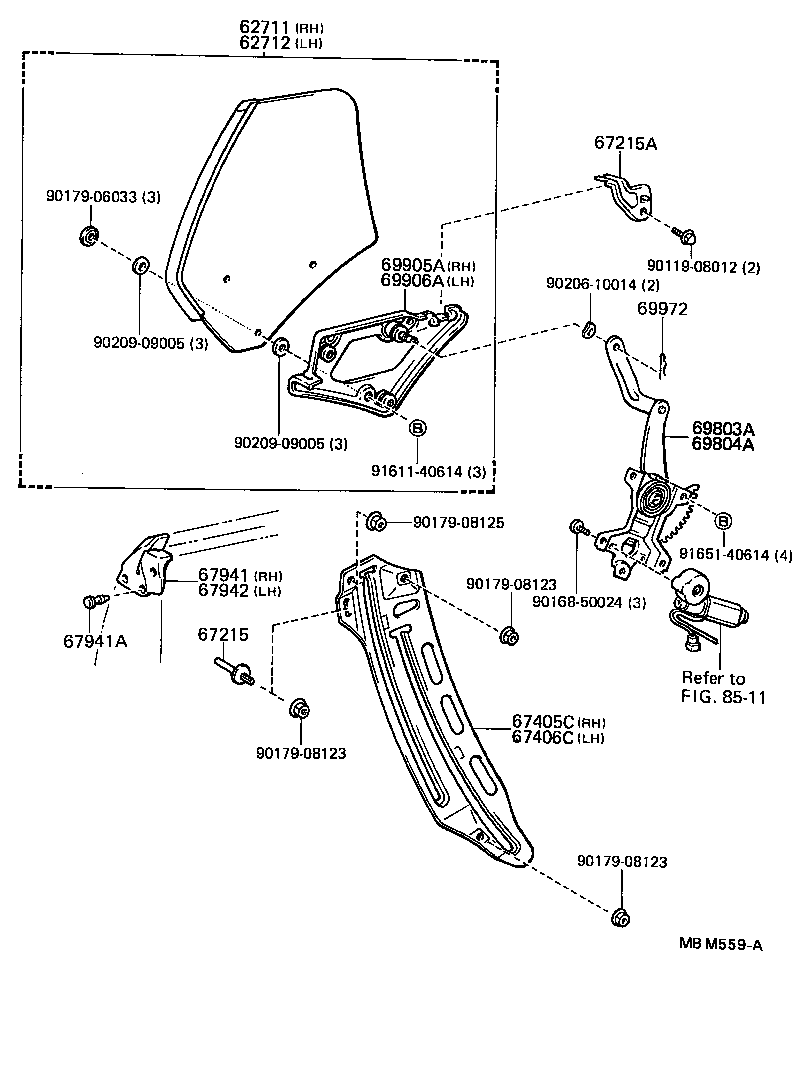

Figure MBJ342B MBJ342B 1987-08 → — Figure MBL665 MBL665 1987-08 → — Figure MBM559A MBM559A 1987-08 → —

Part groups

PNCDescription
62711 Glass, Quarter Window, RH
62712 Glass, Quarter Window, LH
62765H Retainer, Quarter Window Glass, Lower
62767B Retainer, Quarter Window Glass, Rear
62775A Clip, Quarter Window
62786A Spacer, Quarter Window Glass, NO.2
67215 Stopper, Quarter Window, Upper Front
67215A Stopper, Quarter Window, Upper
67405C Guide Sub-assy, Quarter Window, RH
67406C Guide Sub-assy, Quarter Window, LH
67941 Weatherstrip, Quarter Lock Pillar, RH
67941A Clip(FOR QUARTER LOCK PILLAR WEATHERSTRIP)
67942 Weatherstrip, Quarter Lock Pillar, LH
69803A Regulator Sub-assy, Quarter Window, RH
69804A Regulator Sub-assy, Quarter Window, LH
69905A Bracket Sub-assy, Quarter Window Glass, RH
69906A Bracket Sub-assy, Quarter Window Glass, LH
69972 Pin, Quarter Glass Channel Setting
75049 Clip Sub-assy, Quarter Window, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
