Toyota Celica
1987-08 → 1989-08 · chassis ST16# · catalogue 252450 · Europe
Discontinued model
Data version 1989-08
Inside Trim Board & Door Opening Trim Moulding

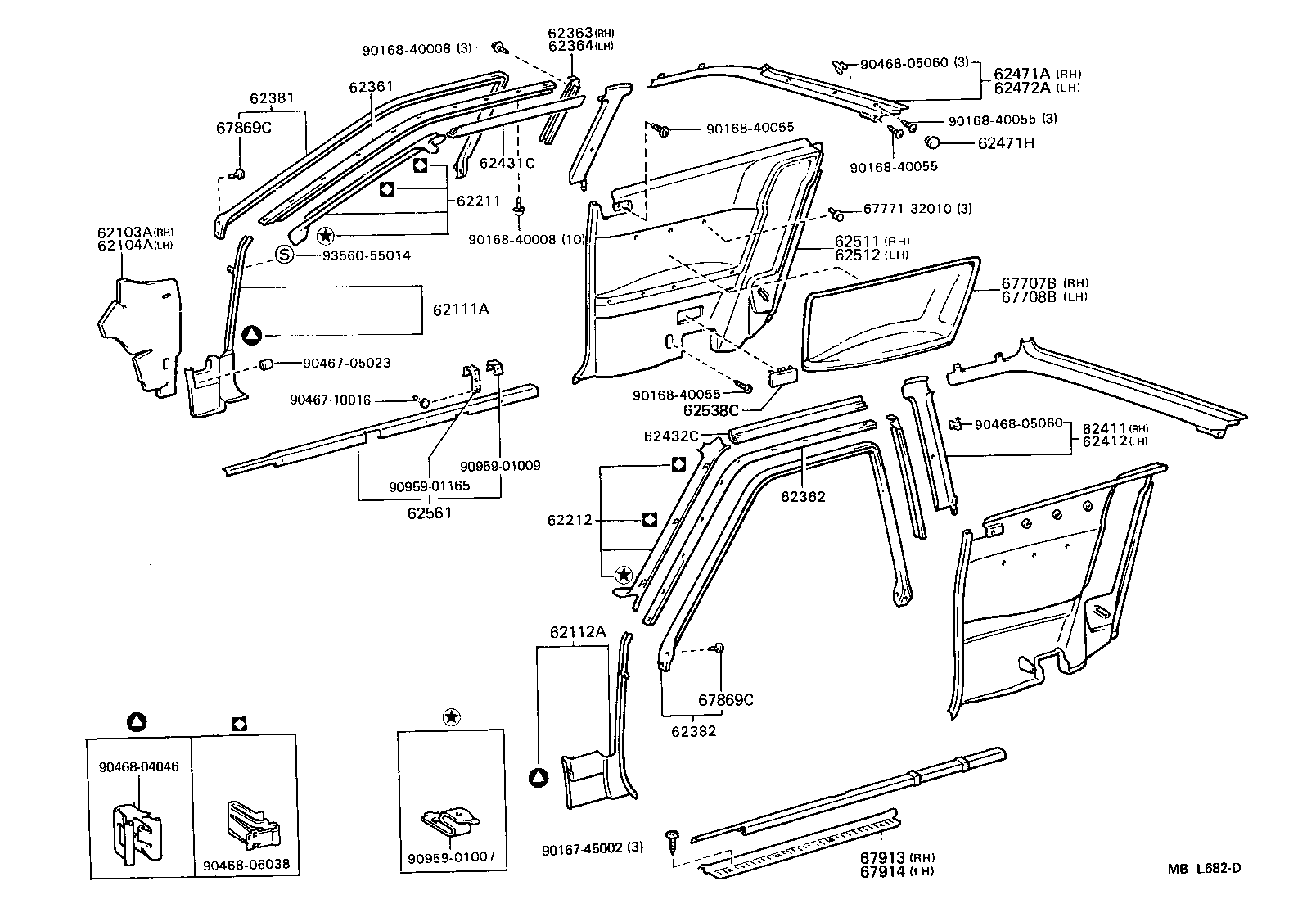

35 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62103A | Insulator Sub-assy, Cowl Side, RH |
| 62104A | Insulator Sub-assy, Cowl Side, LH |
| 62111A | Trim Sub-assy, Cowl Side, RH |
| 62112A | Trim Sub-assy, Cowl Side, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62313D | Trim, Front Door Opening, RH |
| 62314D | Trim, Front Door Opening, LH |
| 62361 | Retainer, Roof Side Rail Weatherstrip, Front RH |
| 62362 | Retainer, Roof Side Rail Weatherstrip, Front LH |
| 62363 | Retainer, Roof Side Rail Weatherstrip, Rear RH |
| 62364 | Retainer, Roof Side Rail Weatherstrip, Rear LH |
| 62381 | Weatherstrip, Roof Side Rail, Front RH |
| 62382 | Weatherstrip, Roof Side Rail, Front LH |
| 62411 | Garnish, Center Pillar, RH |
| 62412 | Garnish, Center Pillar, LH |
| 62431C | Garnish, Roof Side Rail, Front RH |
| 62432C | Garnish, Roof Side Rail, Front LH |
| 62471A | Garnish, Roof Side, Inner RH |
| 62471H | Plug, Hole(FOR ROOF SIDE INNER GARNISH) |
| 62472A | Garnish, Roof Side, Inner LH |
| 62511 | Board, Quarter Inside Trim, RH |
| 62511B | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 62512 | Board, Quarter Inside Trim, LH |
| 62534A | Bracket, Quarter Trim Base, Upper |
| 62538C | Cover, Quarter Trim, Hole |
| 62561 | Protector, Rocker Panel, Inner Front |
| 64033D | Grille Sub-assy, Rear Speaker, RH |
| 64034D | Grille Sub-assy, Rear Speaker, LH |
| 67707B | Ornament Sub-assy, Quarter Trim, RH |
| 67708B | Ornament Sub-assy, Quarter Trim, LH |
| 67869C | Clip, Roof Side Rail Weatherstrip |
| 67913 | Plate, Front Door Scuff, RH |
| 67914 | Plate, Front Door Scuff, LH |
| 68190B | Weatherstrip Assy, Quarter Glass, Inner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
