Toyota Celica

1987-08 → 1989-08 · chassis ST16# · catalogue 252450 · Europe

Discontinued model Data version 1989-08

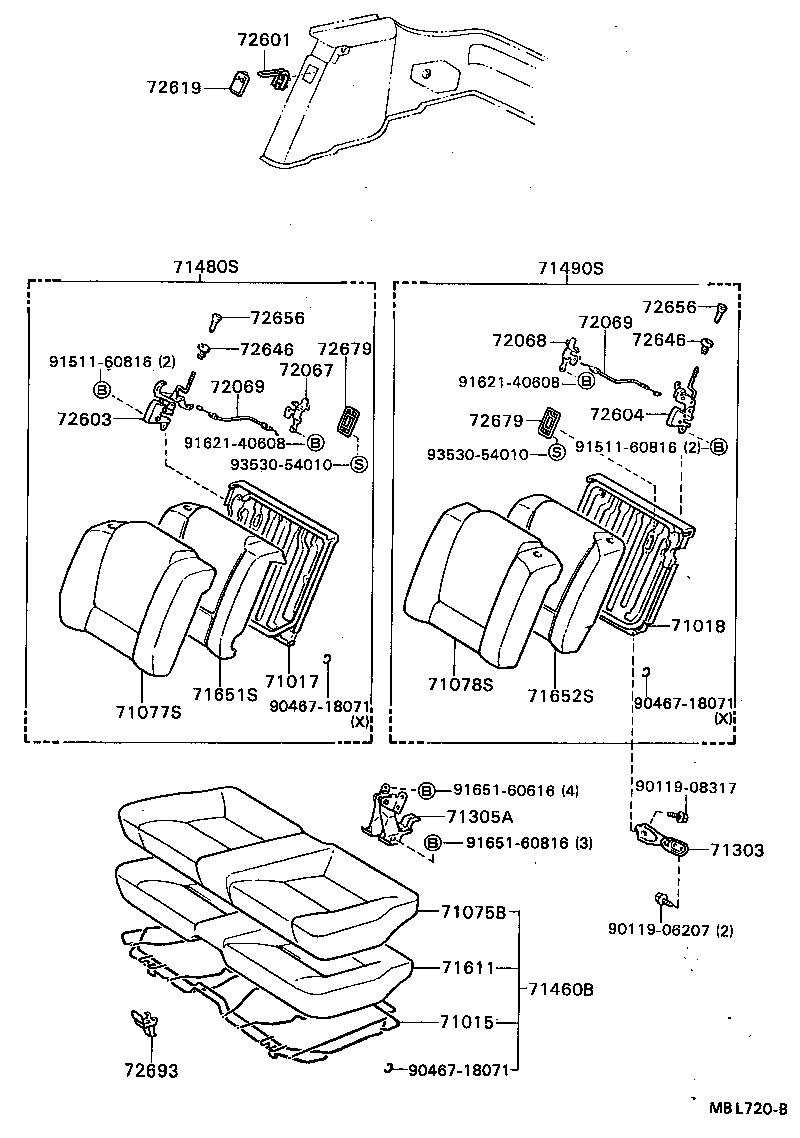

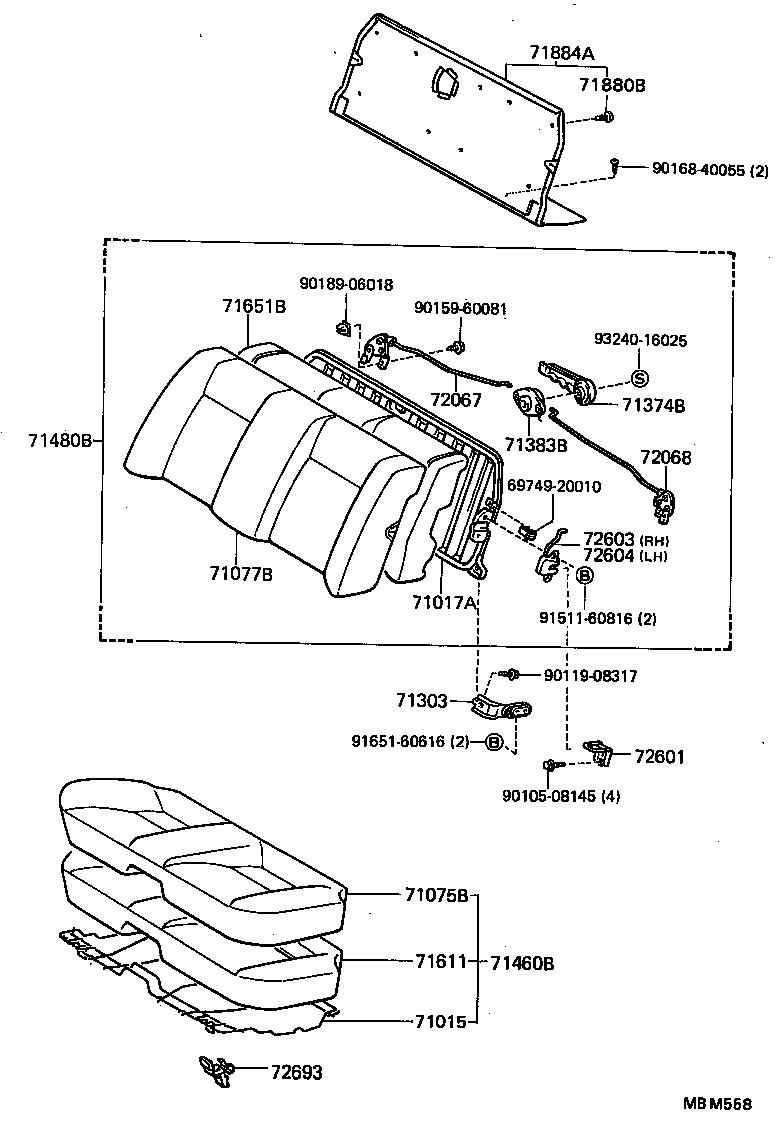

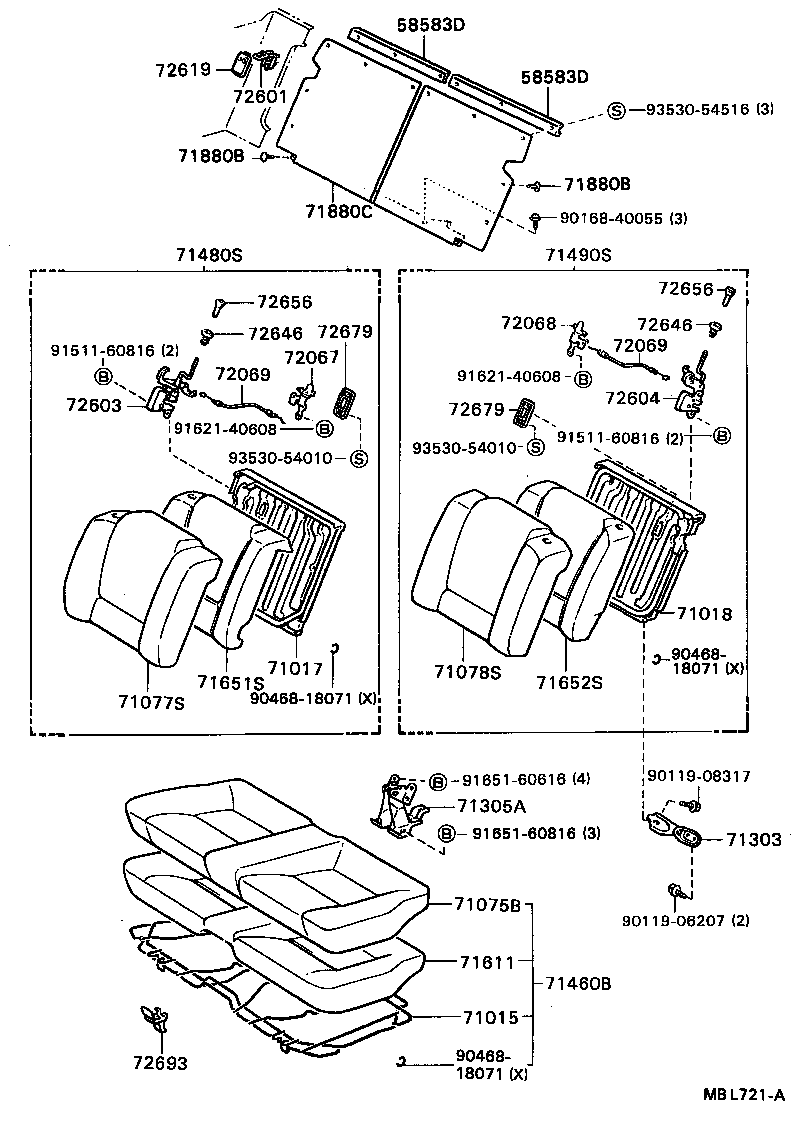

Rear Seat & Seat Track

36 part groups · 4 illustrations

PNC	Description
58583D	Plate, Rear Seatback Carpet Support
71015	Frame Sub-assy, Rear Seat Cushion
71017	Frame Sub-assy, Rear Seatback, RH
71017A	Frame Sub-assy, Rear Seatback
71018	Frame Sub-assy, Rear Seatback, LH
71075B	Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B	Cover, Rear Seatback (FOR BENCH TYPE)
71077S	Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S	Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71087	Board Sub-assy, Rear Seatback
71303	Hinge Sub-assy, Rear Seatback
71305A	Hinge Sub-assy, Rear Seatback, Center
71374B	Lever, Rear Seatback Rod Control, Outer
71383B	Lever, Rear Seatback Rod Control, Inner
71460B	Cushion Assy, Rear Seat (FOR BENCH TYPE)
71480B	Back Assy, Rear Seat (FOR BENCH TYPE)
71480S	Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71490S	Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71611	Pad, Rear Seat Cushion
71651B	Pad, Rear Seatback(FOR BENCH TYPE)
71651S	Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S	Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71880B	Clip(FOR REAR SEATBACK CARPET)
71880C	Carpet Assy, Rear Seatback Board
71884A	Cover, Rear Seatback Board
72067	Lever Sub-assy, Rear Back Lock Control, RH
72068	Lever Sub-assy, Rear Back Lock Control, LH
72069	Cable Sub-assy, Rear Seatback Lock Control
72601	Striker Sub-assy, Rear Seat Lock
72603	Lock Sub-assy, Rear Seatback, RH
72604	Lock Sub-assy, Rear Seatback, LH
72619	Cover, Rear Seatback Lock Striker
72646	Grommet, Rear Seatback Stop Button
72656	Button, Rear Seatback Stop Release
72679	Bezel, Rear Seatback Lock Control
72693	Hook, Rear Seat Cushion Lock

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
