Toyota Celica
1987-08 → 1989-08 · chassis ST16# · catalogue 252450 · Europe
Discontinued model
Data version 1989-08

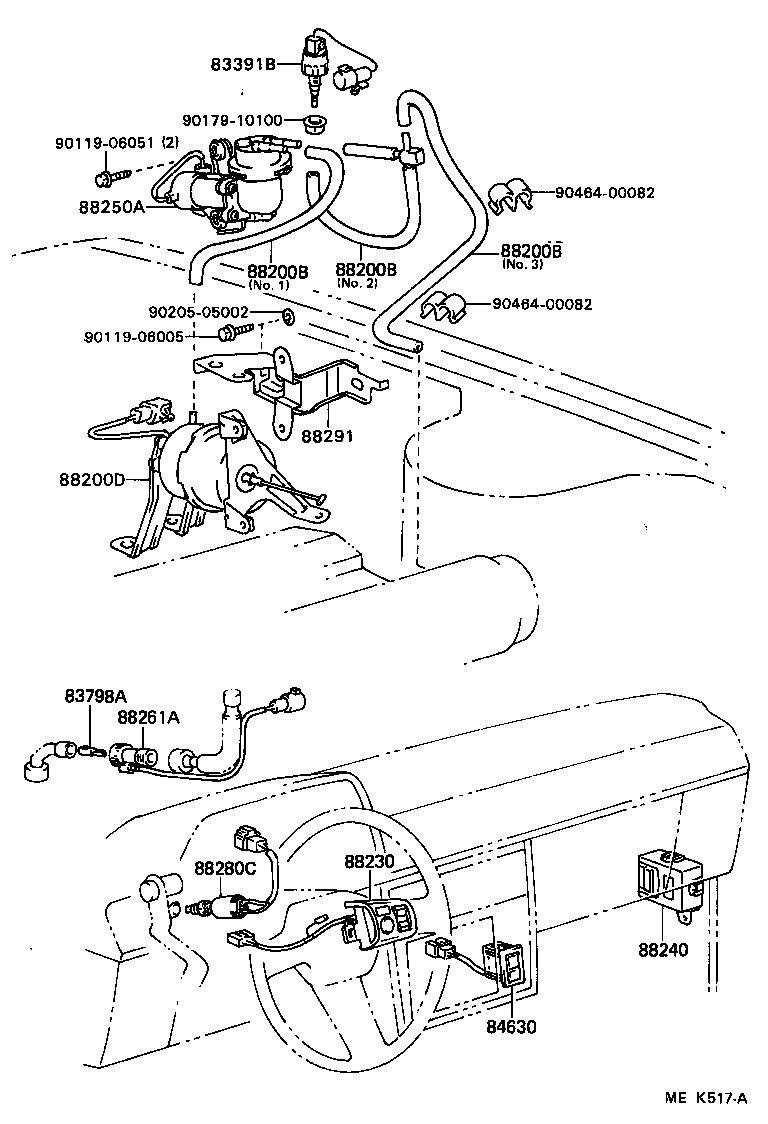

Cruise Control (AUTO DRIVE)
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 83391B | Switch, Auto Drive Vacuum |
| 83798A | Key, Speedometer Cable Adapter |
| 84630 | Switch Assy, Cruise Control Main |
| 88200A | Union OR Way, Cruise Control Vacuum |
| 88200B | Hose, Cruise Control Vacuum |
| 88200D | Actuator Assy, Cruise Control |
| 88230 | Switch Assy, Cruise Control(AUTO DRIVE) Control |
| 88240 | Computer Assy, Cruise Control |
| 88250A | Pump Assy, Cruise Control |
| 88261A | Sensor, Speed Cruise Control |
| 88280C | Switch Assy, Clutch |
| 88288 | Switch, Vacuum Speed Control |
| 88291 | Bracket, Cruise Control(AUTO DRIVE), NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
