Toyota Celica

1987-08 → 1989-08 · chassis ST16# · catalogue 252450 · Europe

Discontinued model Data version 1989-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

10 part groups · 2 illustrations

Illustrations

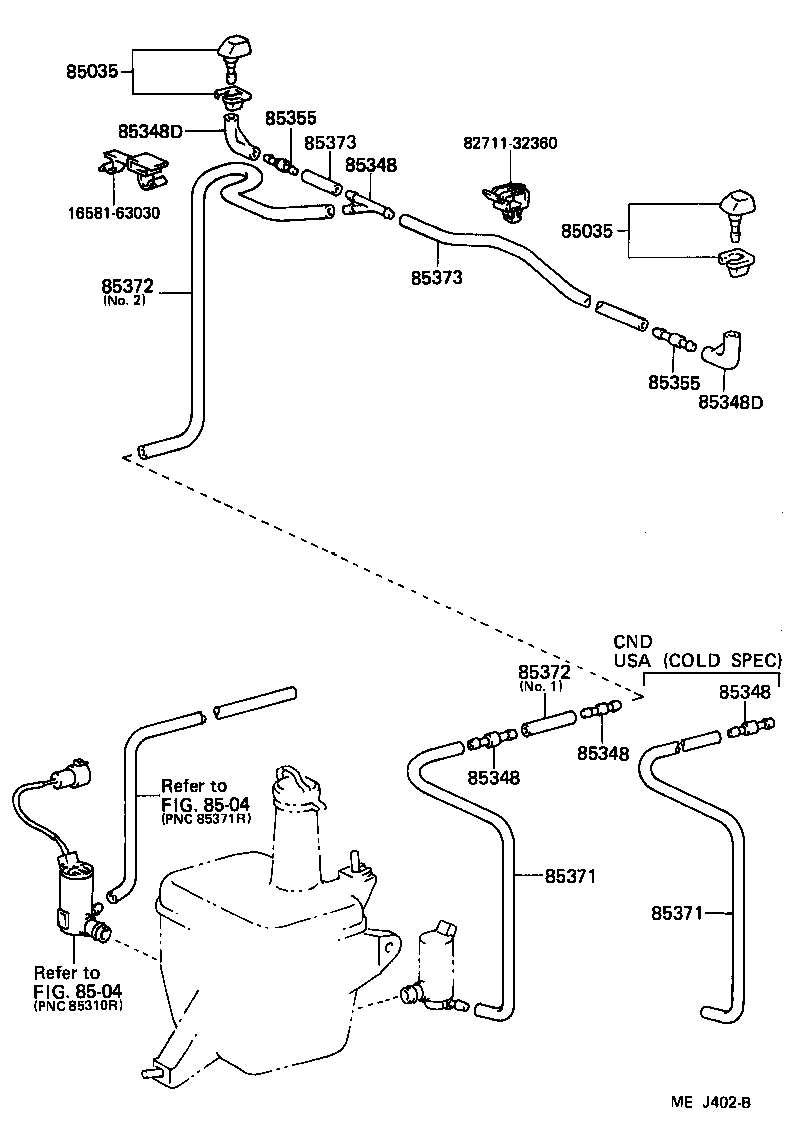

Figure MEJ401B MEJ401B 1987-08 → — Figure MEJ402B MEJ402B 1987-08 → —

Part groups

PNCDescription
85035 Nozzle Sub-assy, Washer
85310 Motor And Pump Assy, Windshield Washer
85331 Jar Sub-assy, Windshield Washer
85332 Cap, Windshield Washer Jar
85348 Joint, Windshield Washer Hose, NO.1
85348D Joint, Windshield Washer Elbow, NO.1
85355 Valve, Windshield Washer Hose
85371 Hose, Windshield Washer (FROM MOTOR TO JOINT)
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
