Factory parts data · Europe

Toyota Celica

1987-08 → 1989-08 · chassis ST16# · catalogue 252450 · Europe

Discontinued model Data version 1989-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

3 part groups · 2 illustrations

Illustrations

Figure MEJ440

MEJ440 1987-08 → —

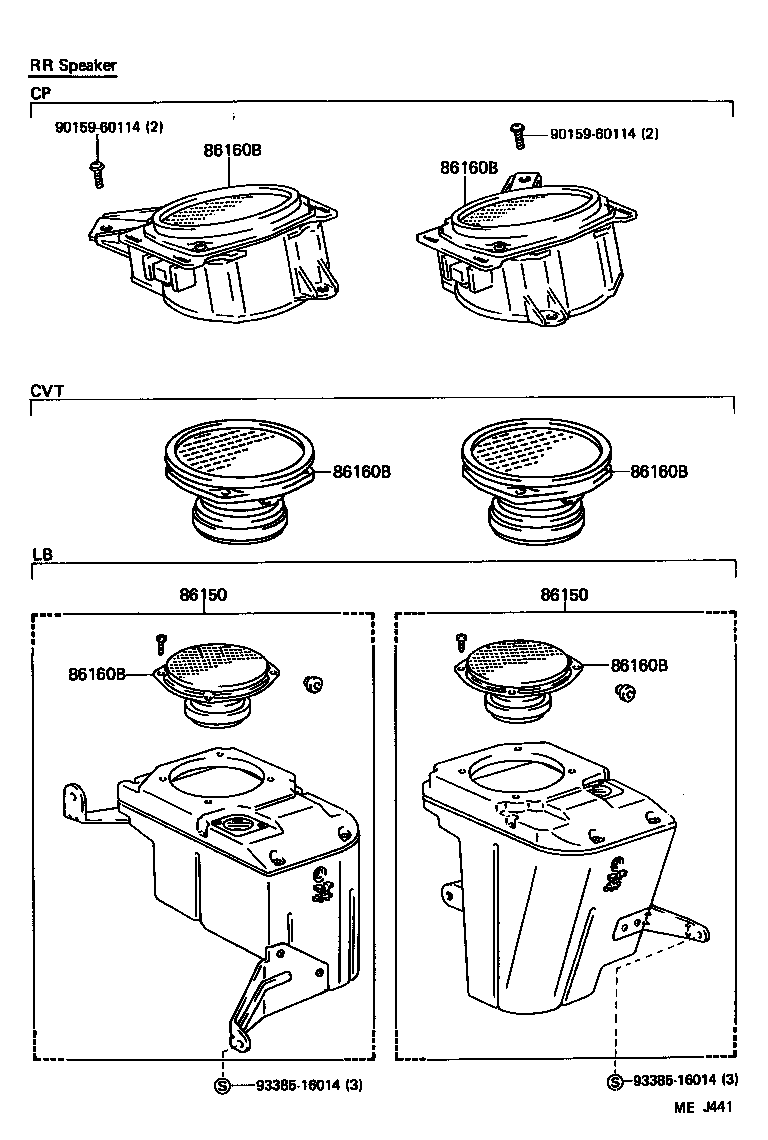

Figure MEJ441

MEJ441 1987-08 → —

Part groups

PNC	Description
86150	Speaker Assy, W/Box, NO.1
86160	Speaker Assy, Front NO.1
86160B	Speaker Assy, Rear

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
