Toyota Celica
1987-08 → 1989-08 · chassis ST16# · catalogue 252450 · Europe
Discontinued model
Data version 1989-08

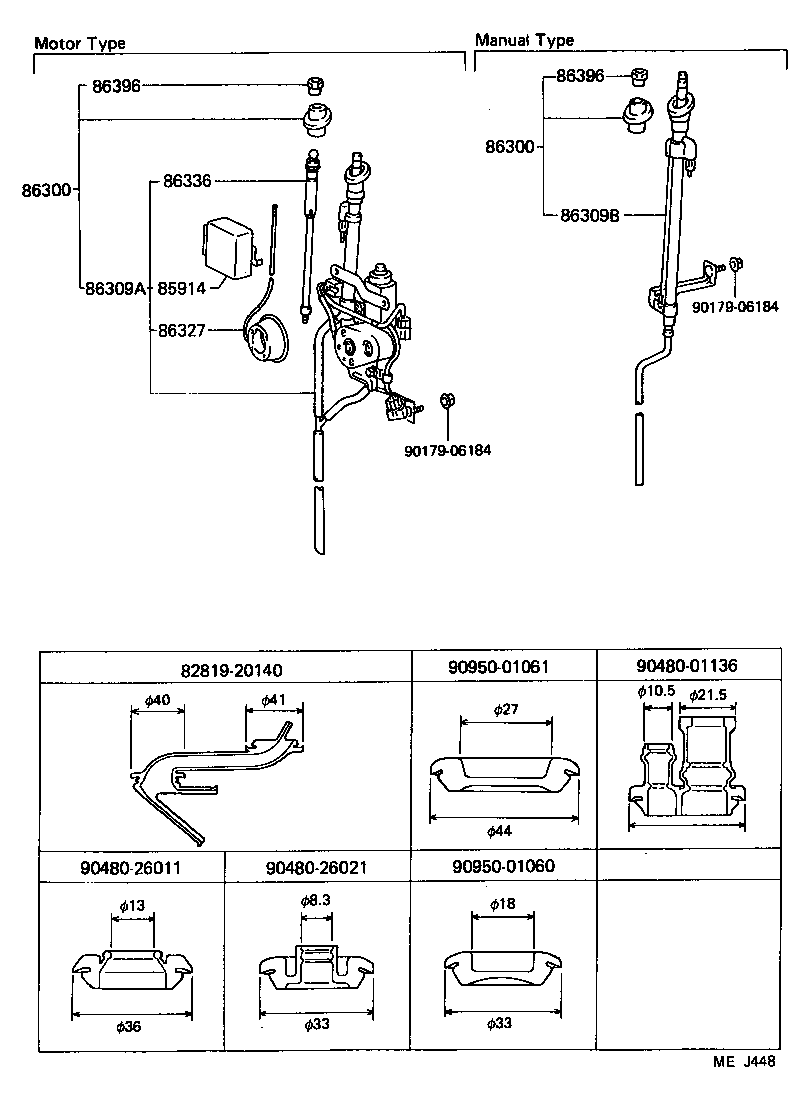

Antenna
8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 85914 | Relay, Motor Antenna Control |
| 86101 | Cord Sub-assy, Antenna |
| 86300 | Antenna Assy, W/Holder |
| 86309A | Pole Sub-assy, Motor Antenna |
| 86309B | Pole Sub-assy, Pull Top Antenna |
| 86327 | Cable, W/Antenna Drum |
| 86336 | Rod & Pipe, Shield |
| 86396 | Nut, Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
