Toyota Celica

1987-08 → 1989-08 · chassis ST16# · catalogue 252450 · Europe

Discontinued model Data version 1989-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

13 part groups · 2 illustrations

Illustrations

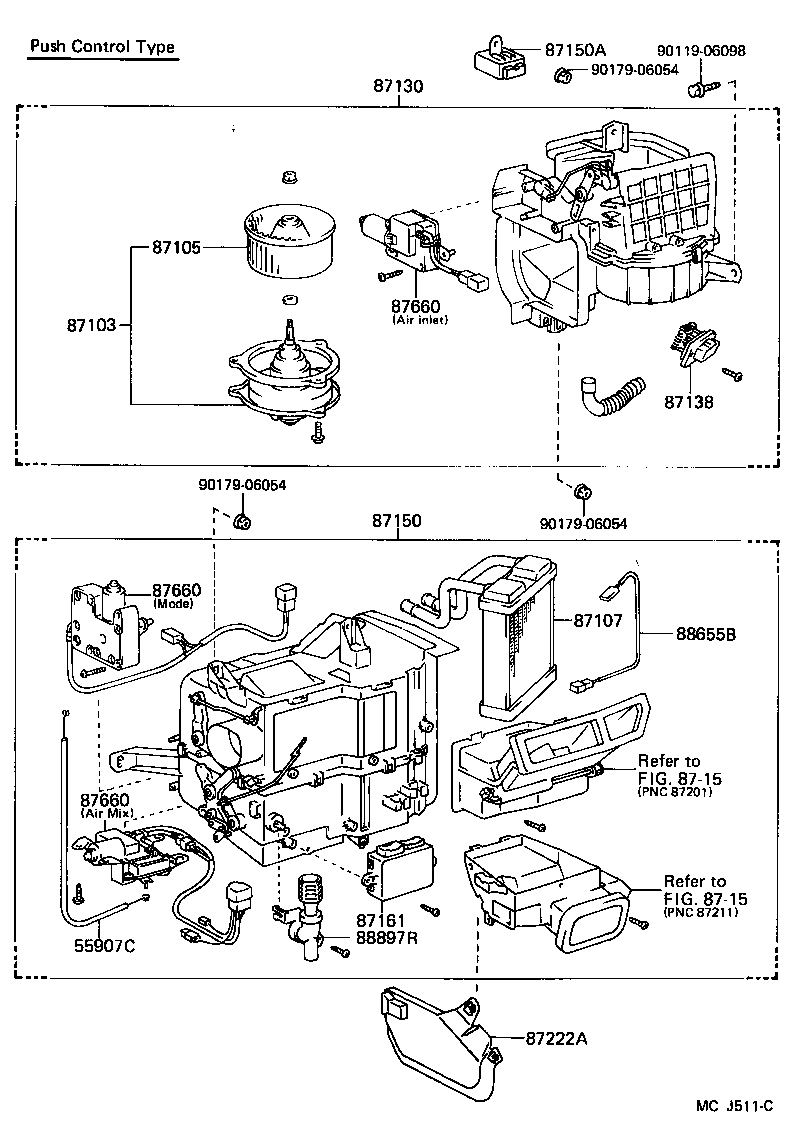

Figure MEJ510A MEJ510A 1987-08 → — Figure MEJ511C MEJ511C 1987-08 → —

Part groups

PNCDescription
55907C Cable Sub-assy, Water Valve Control
87103 Motor Sub-assy, Heater Blower, W/Fan
87105 Fan Sub-assy, Heater Blower
87107 Unit Sub-assy, Heater Radiator
87130 Blower Assy, Heater, Front
87138 Resistor, Heater Blower
87150 Radiator Assy, Heater
87150A Relay, Heater Radiator
87161 Amplifier, Heater Servo Motor
87222A Protector, Air Duct
87660 Servo Assy, Air Conditioner
88655B Switch, Water Temperature
88897R Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
