Toyota Celica

1987-08 → 1989-08 · chassis ST16# · catalogue 252450 · Europe

Discontinued model Data version 1989-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

18 part groups · 4 illustrations

Illustrations

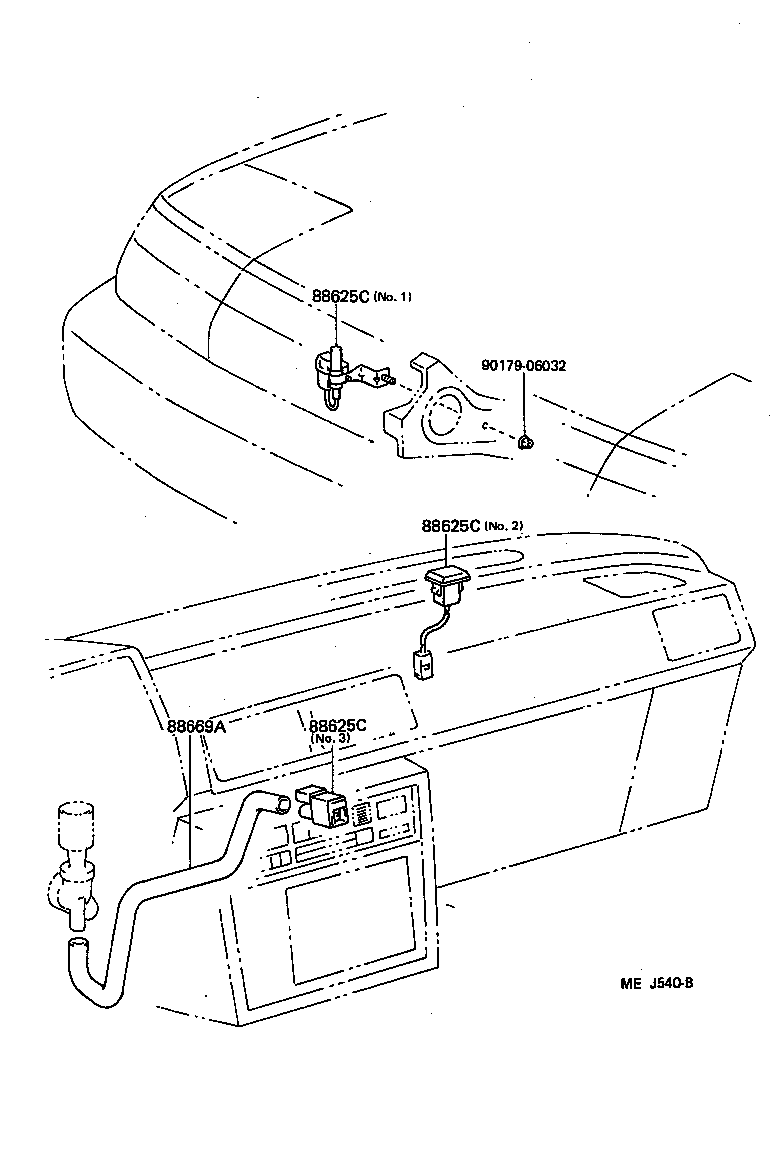

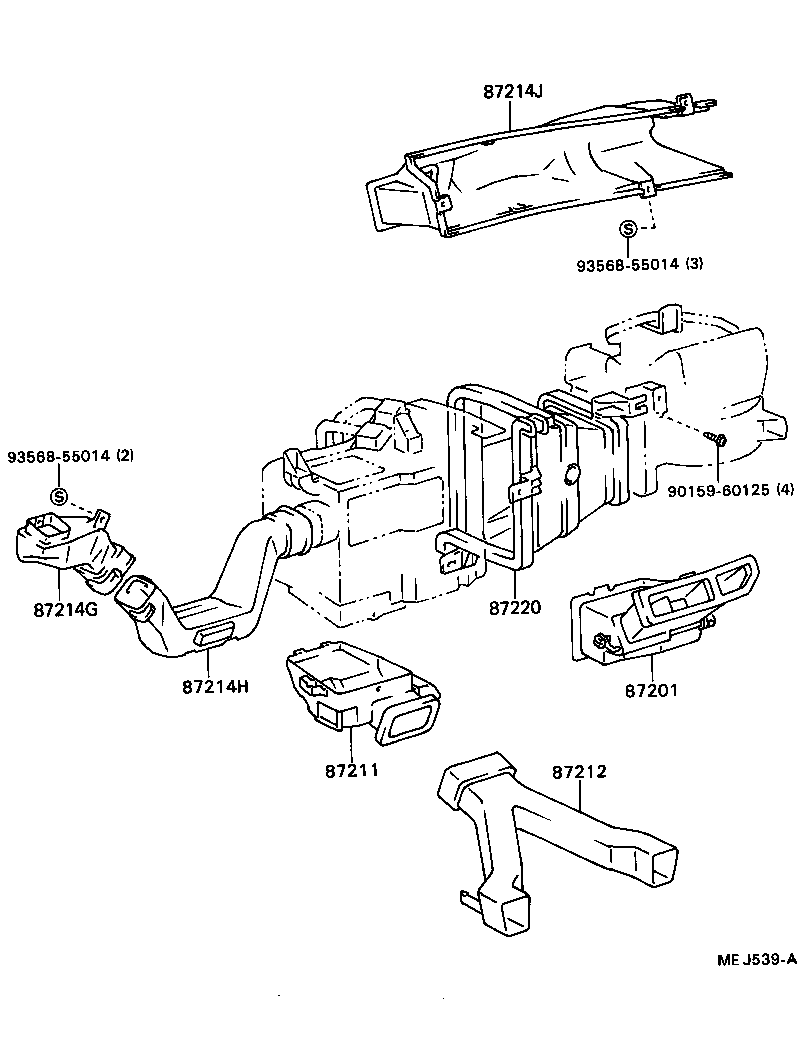

Figure MEJ537 MEJ537 1987-08 → — Figure MEJ538A MEJ538A 1987-08 → — Figure MEJ539A MEJ539A 1987-08 → — Figure MEJ540B MEJ540B 1987-08 → —

Part groups

PNCDescription
55905D Knob Sub-assy, Control
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55913A Plate, Heater Control Lever Guide
55931 Clamp, Heater Control Wire
81850G Lamp Assy, Indicator
87201 Duct Sub-assy, Air, NO.1
87211 Duct, Air, NO.1
87212 Duct, Air, Rear NO.1
87214G Duct Sub-assy, Heater TO Register, NO.1
87214H Duct Sub-assy, Heater TO Register, NO.2
87214J Duct Sub-assy, Heater TO Register, NO.3
87220 Duct Assy, Air
88625C Thermistor, Cooler
88669A Hose (FOR COOLER THERMISTOR)
