Toyota Celica
1987-08 → 1989-08 · chassis ST16# · catalogue 252450 · Europe
Discontinued model
Data version 1989-08

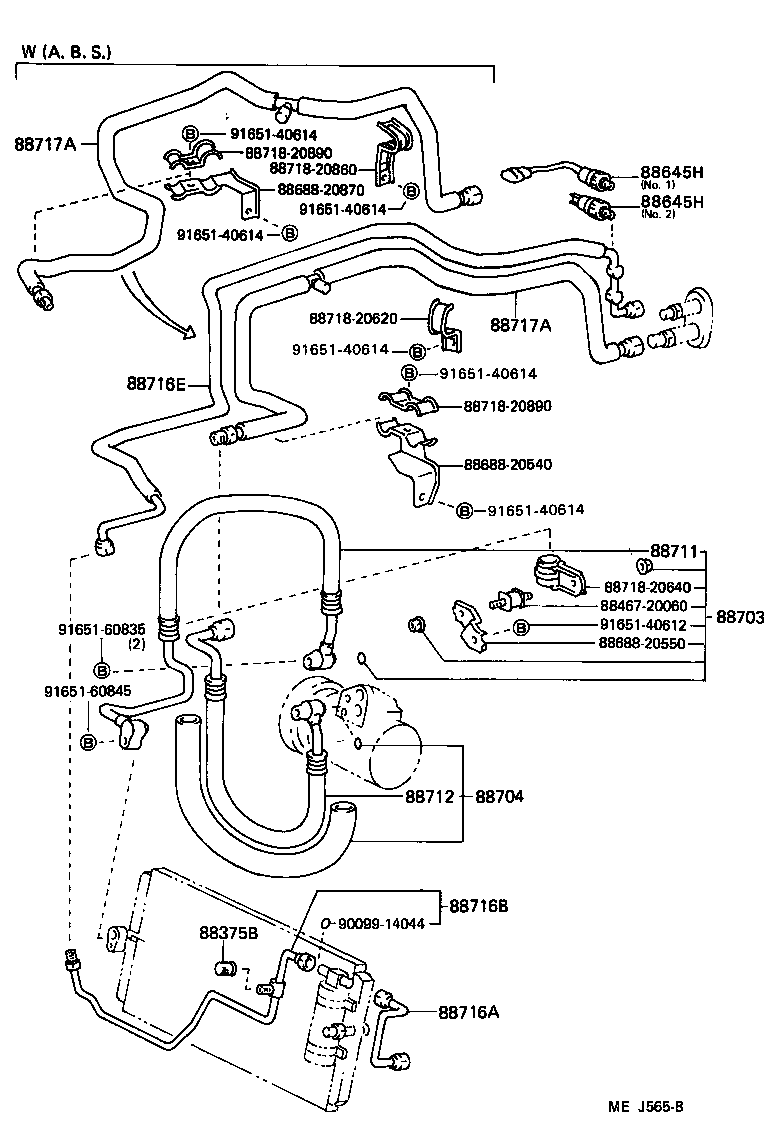

Heating & Air Conditioning - Cooler Piping
16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88375B | Cap, Service Valve, NO.1 |
| 88453A | Fan, Cooling |
| 88460 | Condenser Assy, Cooler |
| 88470 | Receiver & Dryer Assy, Cooler |
| 88470C | Bolt, Fuse |
| 88550 | Motor Assy, Blower (FOR CONDENSER) |
| 88590 | Blower Assy, W/Shroud |
| 88645H | Switch, Pressure NO.1 |
| 88703 | Hose Sub-assy, Discharge |
| 88704 | Hose Sub-assy, Suction |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
| 88716A | Pipe, Cooler Refrigerant Liquid, A |
| 88716B | Pipe, Cooler Refrigerant Liquid, B |
| 88716E | Pipe, Cooler Refrigerant Liquid, E |
| 88717A | Pipe, Cooler Refrigerant Suction, A |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
