Toyota Celica

1989-09 → 1993-09 · chassis AT180,ST18# · catalogue 252460 · Europe

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Head

33 part groups · 3 illustrations

Illustrations

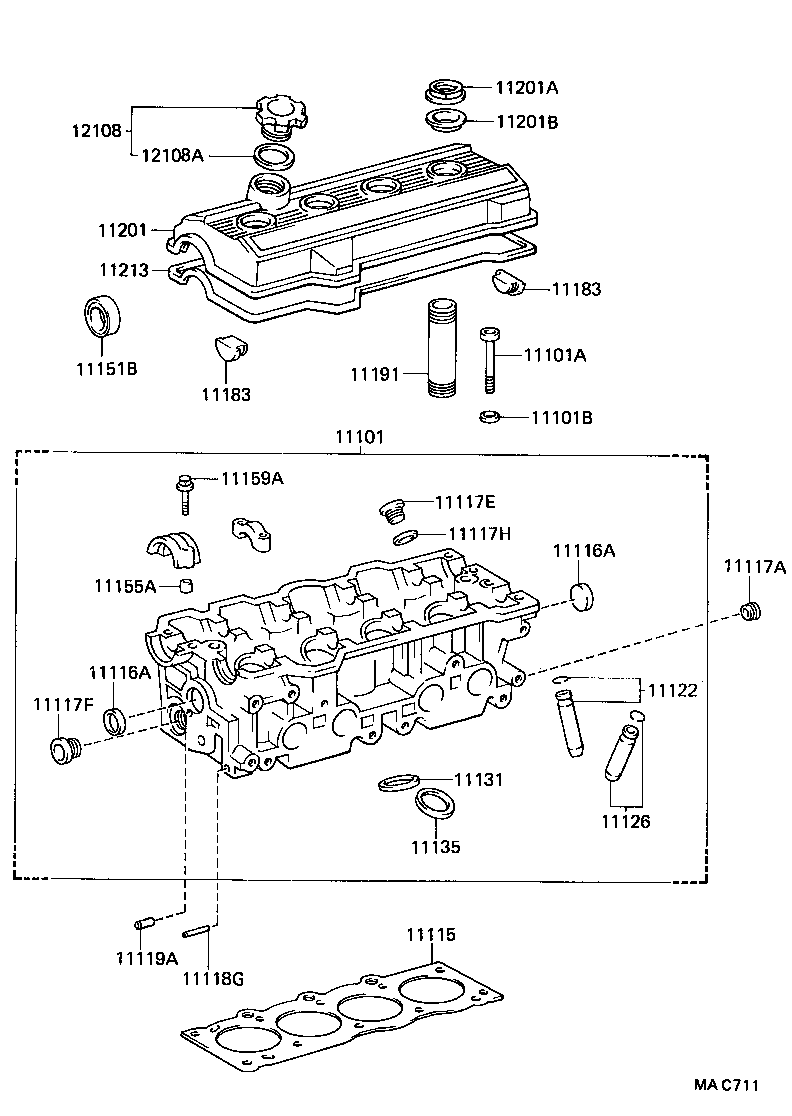

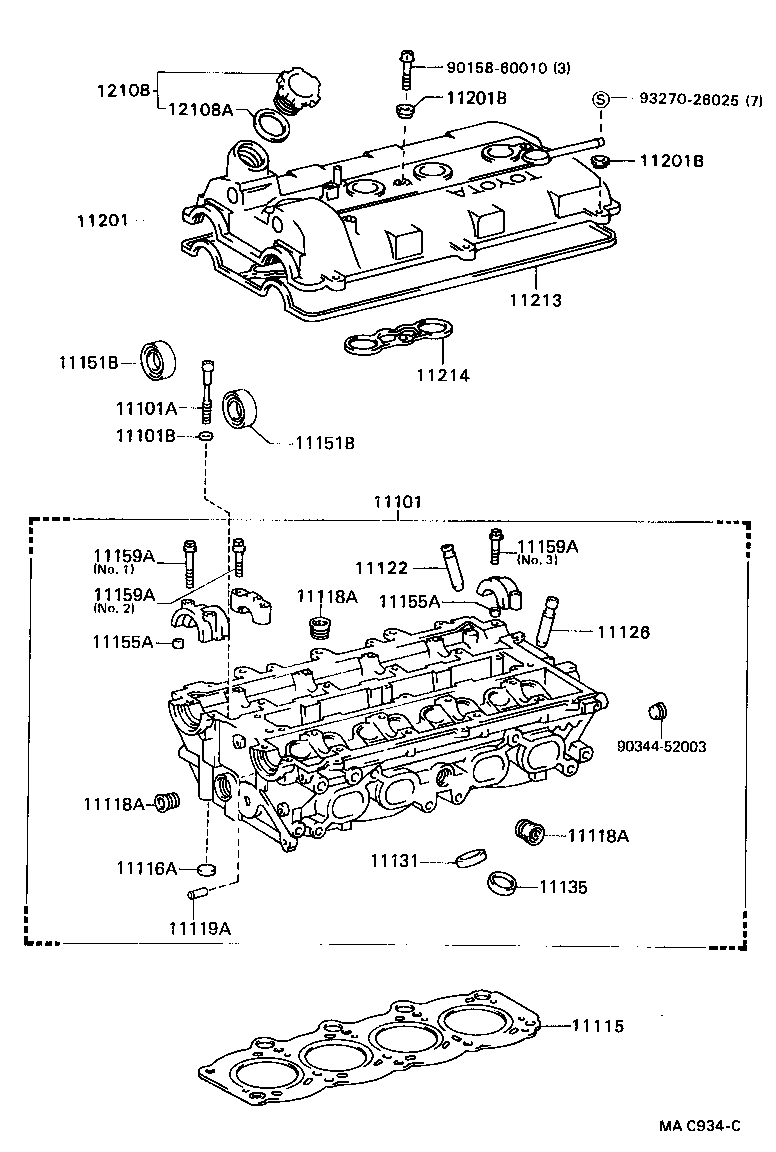

Figure MAC200A MAC200A 1989-09 → — Figure MAC711 MAC711 1989-09 → — Figure MAC934C MAC934C 1989-10 → —

Part groups

PNCDescription
11101 Head Sub-assy, Cylinder
11101A Bolt(FOR CYLINDER HEAD SET)
11101B Washer, Plate(FOR CYLINDER HEAD SET)
11115 Gasket, Cylinder Head
11116A Plug, Tight, NO.1
11116D Plug, Tight, NO.4
11117A Plug, W/Head Taper Screw, NO.1
11117B Plug, W/Head Taper Screw, NO.2
11117C Plug, W/Head Taper Screw, NO.3
11117E Plug, W/Head Straight Screw, NO.1
11117F Plug, W/Head Straight Screw, NO.2
11117H Gasket(FOR WATER HOLE)
11118A Plug, Straight, NO.1
11118G Pin, Slotted Spring, NO.1
11119A Pin, Straight, NO.1
11122 Bush, Intake Valve Guide
11126 Bush, Exhaust Valve Guide
11131 Seat, Intake Valve
11135 Seat, Exhaust Valve
11151B Seal, Oil(FOR CAMSHAFT SETTING)
11155A Pin, Ring W/Head
11158 Bolt, Stud(FOR HEAD TO CYLINDER HEAD COVER)
11159A Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
11183 Plug, Semicircular
11191 Tube, Spark Plug
11191A Gasket(FOR SPARK PLUG TUBE)
11201 Cover Sub-assy, Cylinder Head
11201A Nut, Cap(FOR CYLINDER HEAD COVER)
11201B Washer, Seal(FOR CYLINDER HEAD COVER)
11213 Gasket, Cylinder Head Cover
11214 Gasket, Cylinder Head Cover, NO.2
12108 Cap Sub-assy, Oil Filler
12108A Gasket(FOR OIL FILLER CAP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
