Toyota Celica

1989-09 → 1993-09 · chassis AT180,ST18# · catalogue 252460 · Europe

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

17 part groups · 3 illustrations

Illustrations

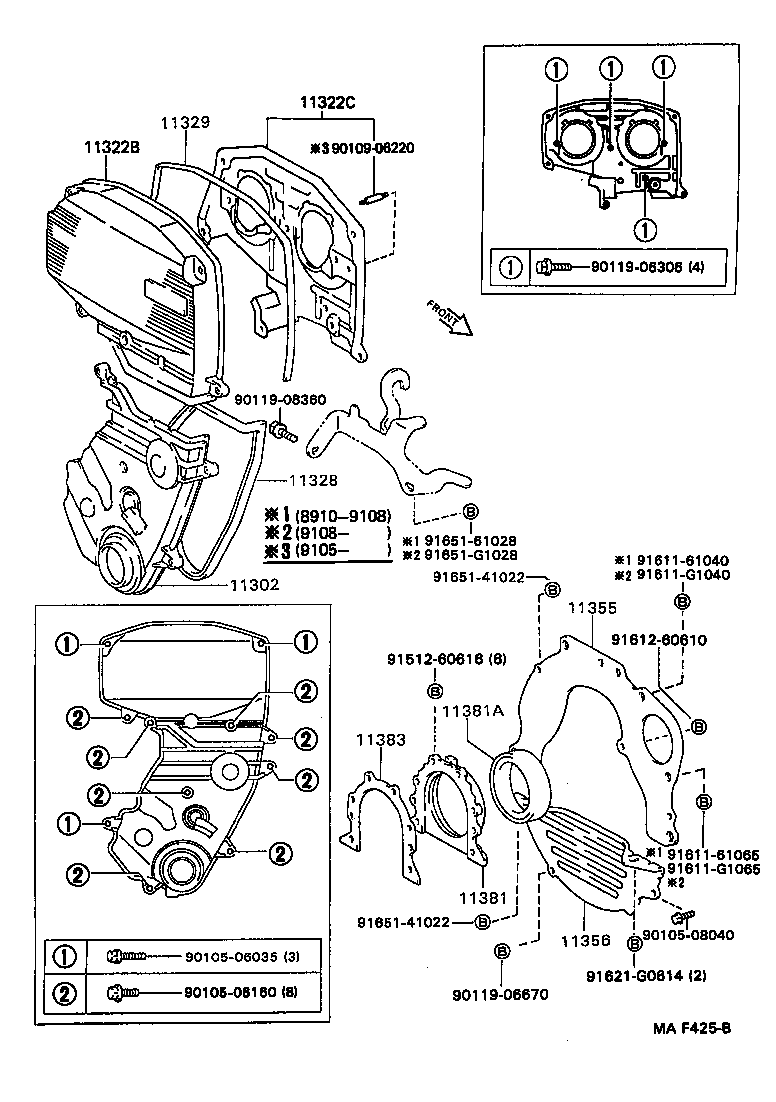

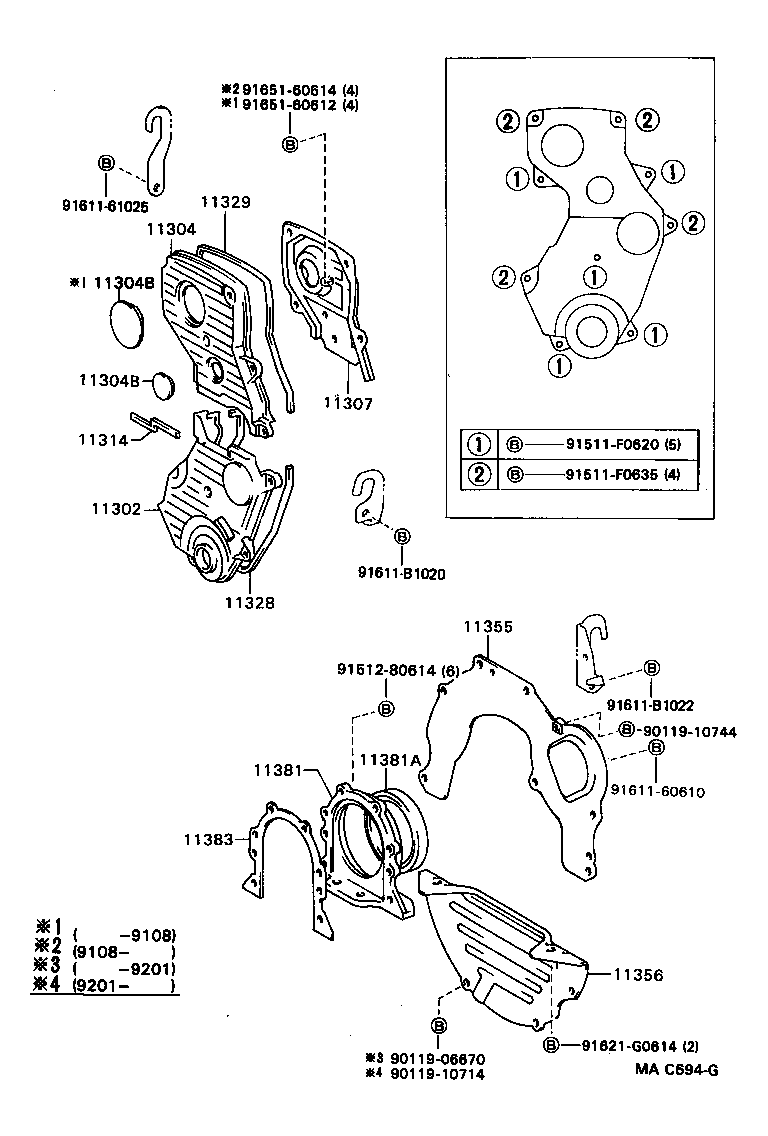

Figure MAC203C MAC203C 1989-09 → — Figure MAC694G MAC694G 1989-09 → — Figure MAF425B MAF425B 1989-10 → —

Part groups

PNCDescription
11302 Cover Sub-assy, Timing Chain OR Belt
11302T Plug, Hole
11303 Cover Sub-assy, Crankshaft Gear OR Pulley
11304 Cover, Timing Chain OR Belt, NO.2
11304B Plug, Semi Circular(FOR CHAIN COVER NO.2)
11307 Cover, Sub-assy, Timing Belt, NO.3
11314 Gasket, Timing Chain NO.2 Cover
11322B Cover, Timing Belt, NO.2
11322C Cover, Timing Belt, NO.3
11328 Gasket, Timing Gear OR Chain Cover
11329 Gasket, Timing Gear Rear Cover
11355 Plate, Rear End
11355A Plug, Hole(FOR REAR END PLATE)
11356 Plate, Rear End, NO.2
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11383 Gasket, Engine Rear Oil Seal Retainer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
