Toyota Celica

1989-09 → 1993-09 · chassis AT180,ST18# · catalogue 252460 · Europe

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Pedal & Flexible Hose

23 part groups · 3 illustrations

Illustrations

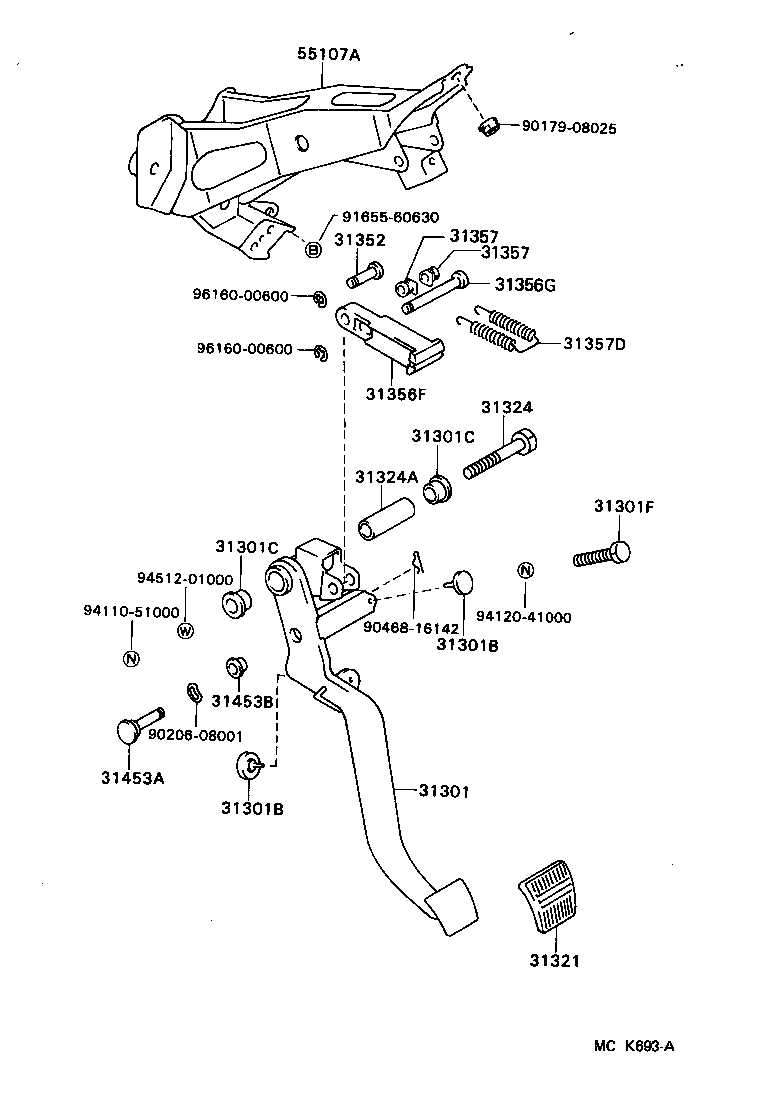

Figure MCK692 MCK692 1989-09 → — Figure MCK693A MCK693A 1989-09 → — Figure MCJ031A MCJ031A 1989-09 → —

Part groups

PNCDescription
31301 Pedal Sub-assy, Clutch
31301A Spring(FOR CLUTCH PEDAL)
31301B Cushion, NO.1(FOR CLUTCH PEDAL)
31301C Bush(FOR CLUTCH PEDAL)
31301F Bolt(FOR CLUTCH PEDAL STOPPER)
31321 Pad, Clutch Pedal
31324 Shaft, Clutch Pedal
31324A Collar, Clutch Pedal Shaft
31352 Pin, Over Center Plate
31356F Plate, Clutch Pedal Over Center, NO.1
31356G Pin(FOR CLUTCH PEDAL SUPPORT OVER CENTER PLATE)
31357 Plate, Clutch Pedal Over Center, NO.2
31357D Spring, Compression(FOR OVER CENTER ADJUSTING ROD)
31418 Hose, Clutch
31453A Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31453B Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31481 Tube, Clutch Master Cylinder TO Flexible Hose
31482 Tube, Clutch Release Cylinder TO Flexible Hose
31484A Bracket, Flexible Hose, NO.1(FOR CLUTCH)
31484C Bracket, Clutch Tube, NO.1
31484D Bracket, Clutch Tube, NO.2
31485 Bracket, Flexible Hose, NO.2(FOR CLUTCH)
55107A Support Sub-assy, Clutch Pedal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
