Toyota Celica

1989-09 → 1993-09 · chassis AT180,ST18# · catalogue 252460 · Europe

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

21 part groups · 4 illustrations

Illustrations

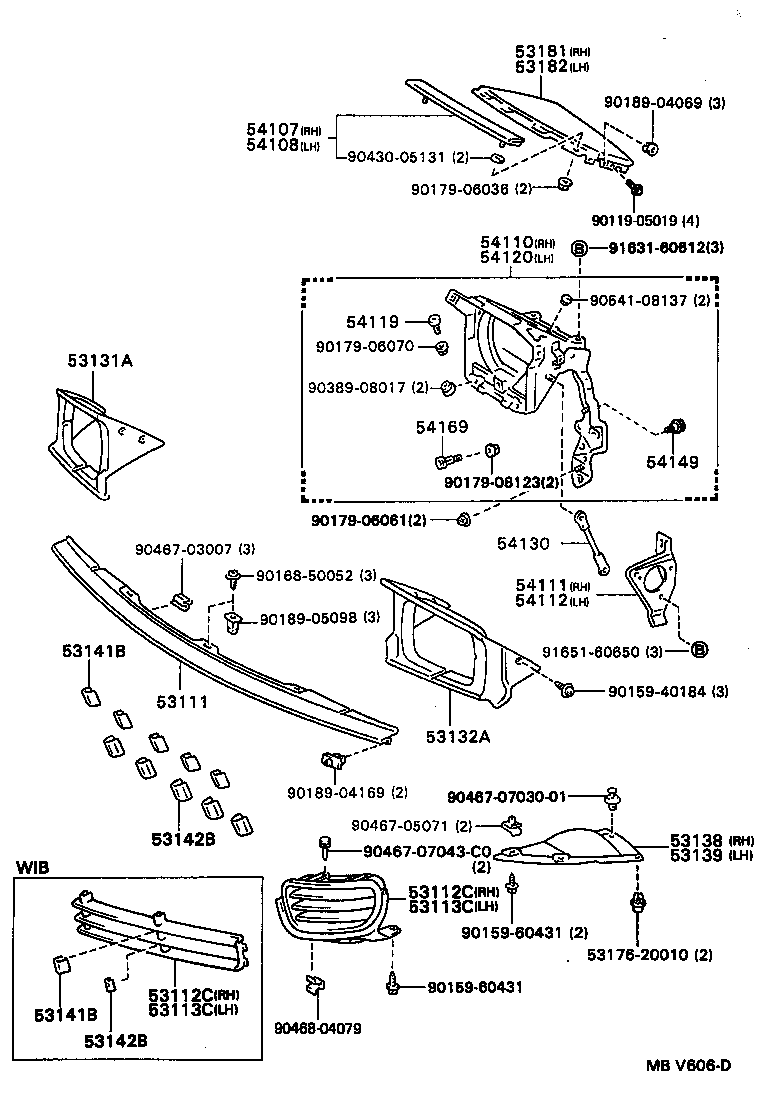

Figure MBT157D MBT157D 1989-09 → 1991-08 Figure MBT157D MBT157D 1990-06 → 1991-09 Figure MBV606D MBV606D 1991-08 → — Figure MBV606D MBV606D 1991-09 → —

Part groups

PNCDescription
53111 Grille, Radiator
53112C Grille, Radiator, Lower RH
53113C Grille, Radiator, Lower LH
53131A Door, Headlamp, RH
53132A Door, Headlamp, LH
53138 Protector, Headlamp Door, RH
53139 Protector, Headlamp Door, LH
53141B Garnish, Radiator Grille, NO.1
53142B Radiator Grille Garnish, NO.2
53181 Cover, Headlamp, RH
53182 Cover, Headlamp, LH
54107 Garnish Sub-assy, Retractable Headlamp, RH
54108 Garnish Sub-assy, Retractable Headlamp, LH
54110 Bracket Assy, Retractable Headlamp, RH
54111 Bracket, Retractable Headlamp, NO.1 RH
54112 Bracket, Retractable Headlamp, NO.1 LH
54119 Stop, Retractable Headlamp Link
54120 Bracket Assy, Retractable Headlamp, LH
54130 Rod Assy, Retractable Headlamp
54149 Bolt, Retractable Headlamp Stop
54169 Stop, Retractable Headlamp Link Down
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
