Toyota Celica

1989-09 → 1993-09 · chassis AT180,ST18# · catalogue 252460 · Europe

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Side Ventilator

14 part groups · 3 illustrations

Illustrations

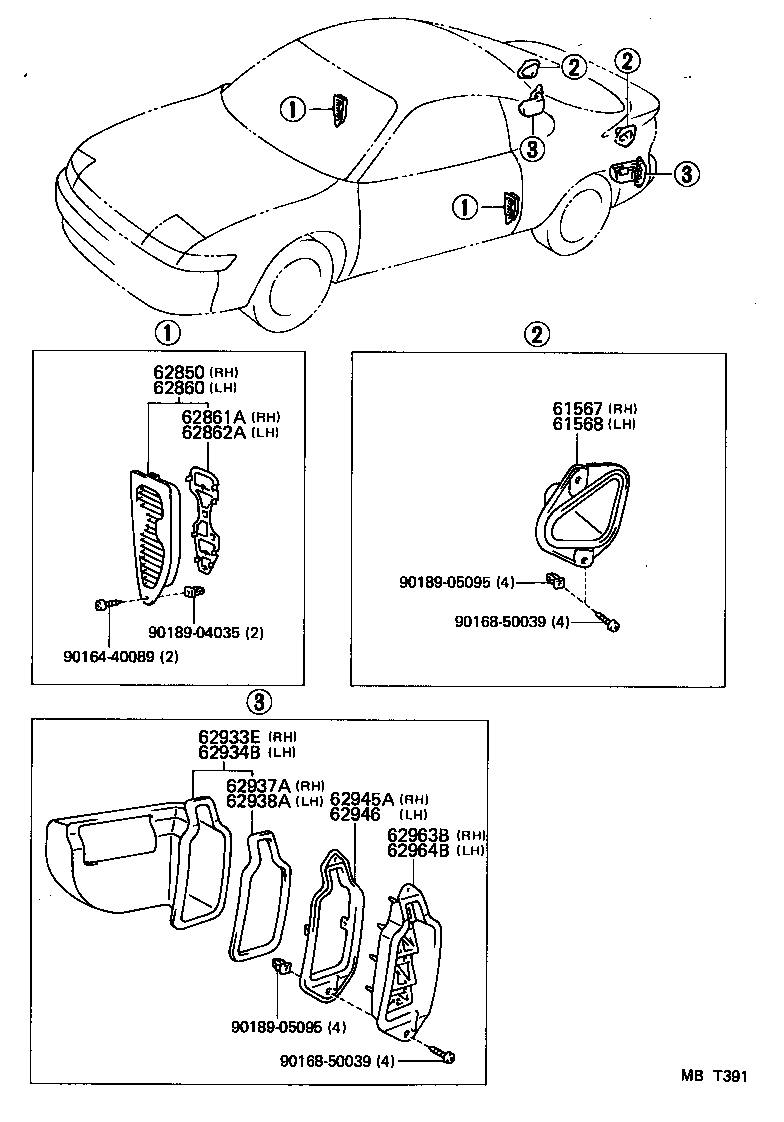

Figure MBT390 MBT390 1989-09 → — Figure MBT390 MBT390 1990-04 → — Figure MBT391 MBT391 1989-09 → —

Part groups

PNCDescription
61567 Plate, Quarter Panel End, RH
61568 Plate, Quarter Panel End, LH
62850 Valve Assy, Room Pressure Relief, RH
62860 Valve Assy, Room Pressure Relief, LH
62861A Gasket, Room Pressure Relief Valve, RH
62862A Gasket, Room Pressure Relief Valve, LH
62933E Duct, Quarter Vent, Inner RH
62934B Duct, Quarter Vent, Inner LH
62937A Packing, Quarter Vent Duct, RH
62938A Packing, Quarter Vent Duct, LH
62945A Retainer, Quarter Vent Duct, NO.3
62946 Retainer, Quarter Vent Duct, NO.4
62963B Plate, Quarter Vent Louver, RH
62964B Plate, Quarter Vent Louver, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
