Toyota Celica

1989-09 → 1993-09 · chassis AT180,ST18# · catalogue 252460 · Europe

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inside Trim Board & Door Opening Trim Moulding

29 part groups · 3 illustrations

Illustrations

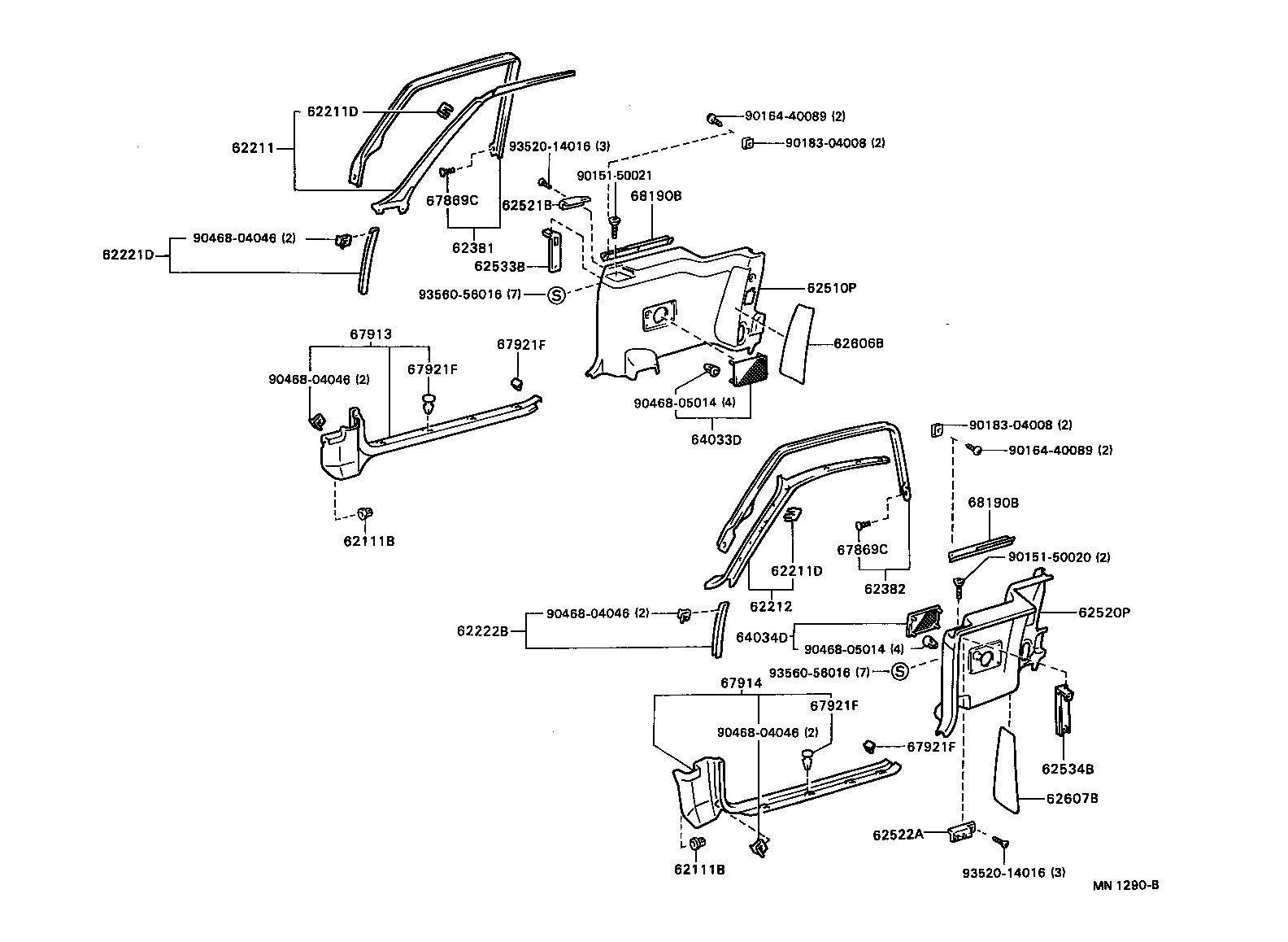

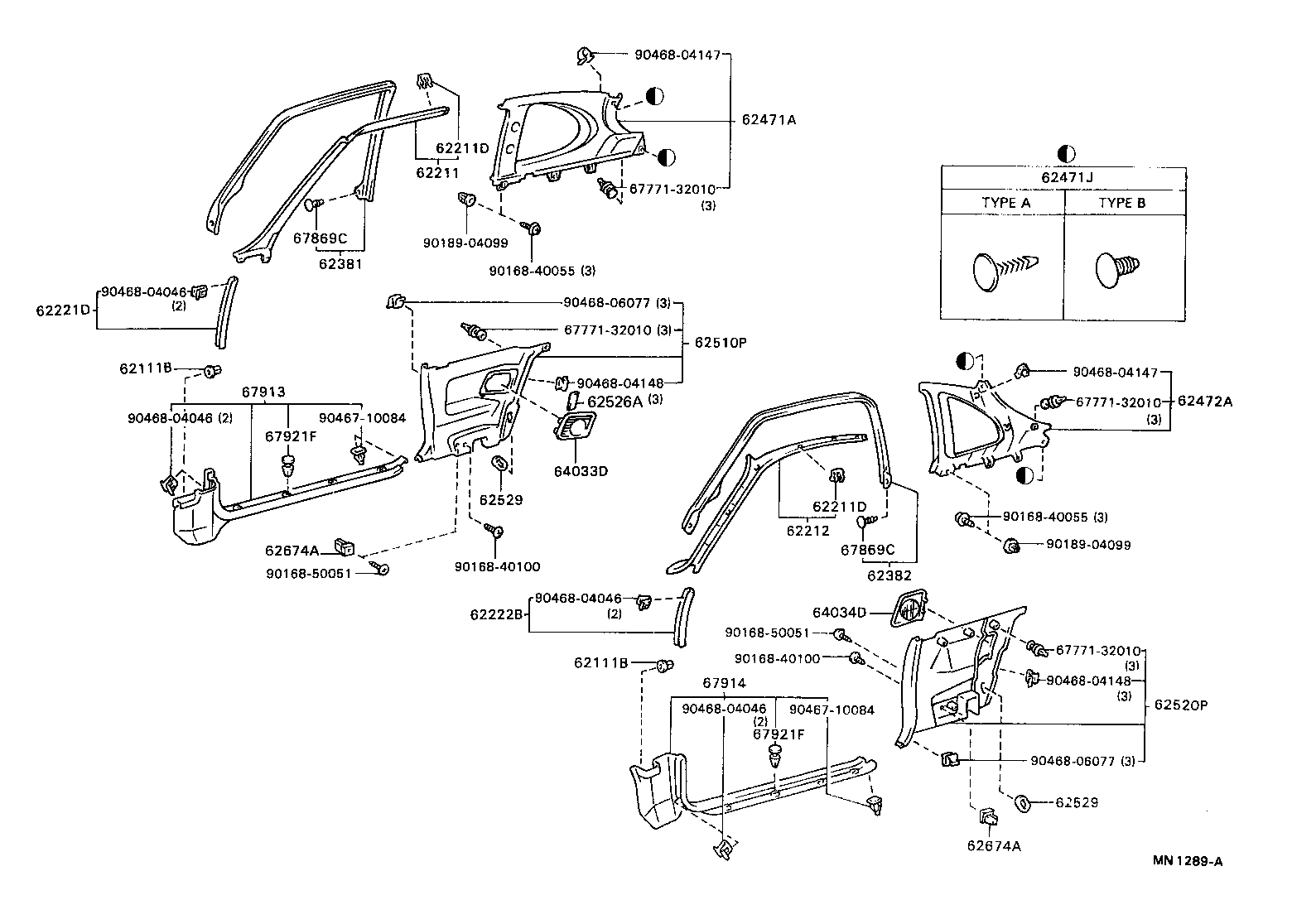

Figure MN0107C MN0107C 1989-09 → — Figure MN1289A MN1289A 1989-09 → — Figure MN1290B MN1290B 1990-06 → —

Part groups

PNCDescription
62111B Clip(FOR COWL SIDE TRIM)
62211 Garnish, Front Pillar, RH
62211D Clip(FOR FRONT BODY PILLAR GARNISH)
62212 Garnish, Front Pillar, LH
62221D Cover, Front Pillar Garnish, RH
62222B Cover, Front Pillar Garnish, LH
62381 Weatherstrip, Roof Side Rail, Front RH
62382 Weatherstrip, Roof Side Rail, Front LH
62471A Garnish, Roof Side, Inner RH
62471J Clip (FOR ROOF SIDE GARNISH)
62472A Garnish, Roof Side, Inner LH
62510P Panel Assy, Quarter Trim, Front RH
62520P Panel Assy, Quarter Trim, Front LH
62521B Cover, Quarter Trim, RH
62522A Cover, Quarter Trim, LH
62526A Pad, Quarter Trim, Upper NO.2
62529 Pad, Quarter Trim, NO.2
62533B Bracket, Quarter Trim, RH
62534B Bracket, Quarter Trim, LH
62606B Ornament Sub-assy, Quarter Trim, Rear RH
62607B Ornament Sub-assy, Quarter Trim, Rear LH
62674A Retainer, Quarter Trim Set
64033D Grille Sub-assy, Rear Speaker, RH
64034D Grille Sub-assy, Rear Speaker, LH
67869C Clip, Roof Side Rail Weatherstrip
67913 Plate, Front Door Scuff, RH
67914 Plate, Front Door Scuff, LH
67921F Retainer, Front Door Scuff Plate
68190B Weatherstrip Assy, Quarter Glass, Inner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
