Toyota Celica

1989-09 → 1993-09 · chassis AT180,ST18# · catalogue 252460 · Europe

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

11 part groups · 2 illustrations

Illustrations

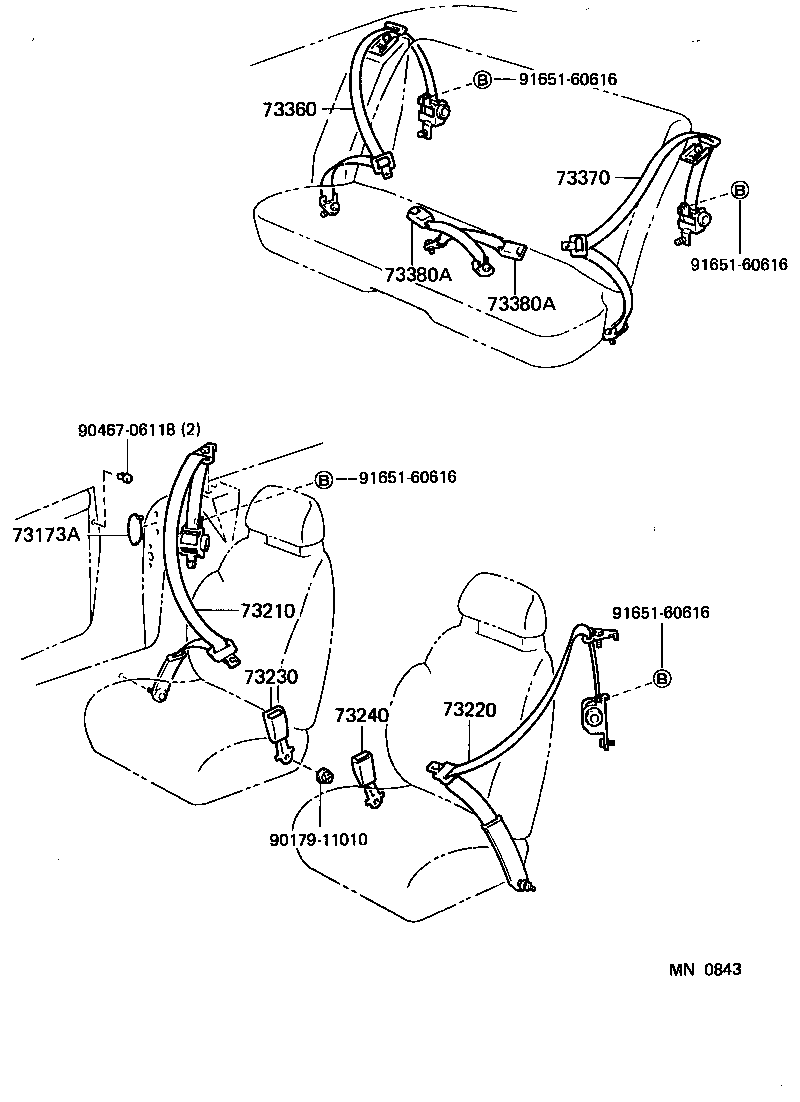

Figure MN0325 MN0325 1989-09 → — Figure MN0843 MN0843 1990-06 → —

Part groups

PNCDescription
73021 Lever Sub-assy, Seat Belt Comfort, RH
73022 Lever Sub-assy, Seat Belt Comfort, LH
73173A Cover, Front Seat Belt Hole
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73380A Belt Assy, Rear Seat, Inner
73709 Bracket Sub-assy, Tether Anchor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
