Toyota Celica

1989-09 → 1993-09 · chassis AT180,ST18# · catalogue 252460 · Europe

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

5 part groups · 2 illustrations

Illustrations

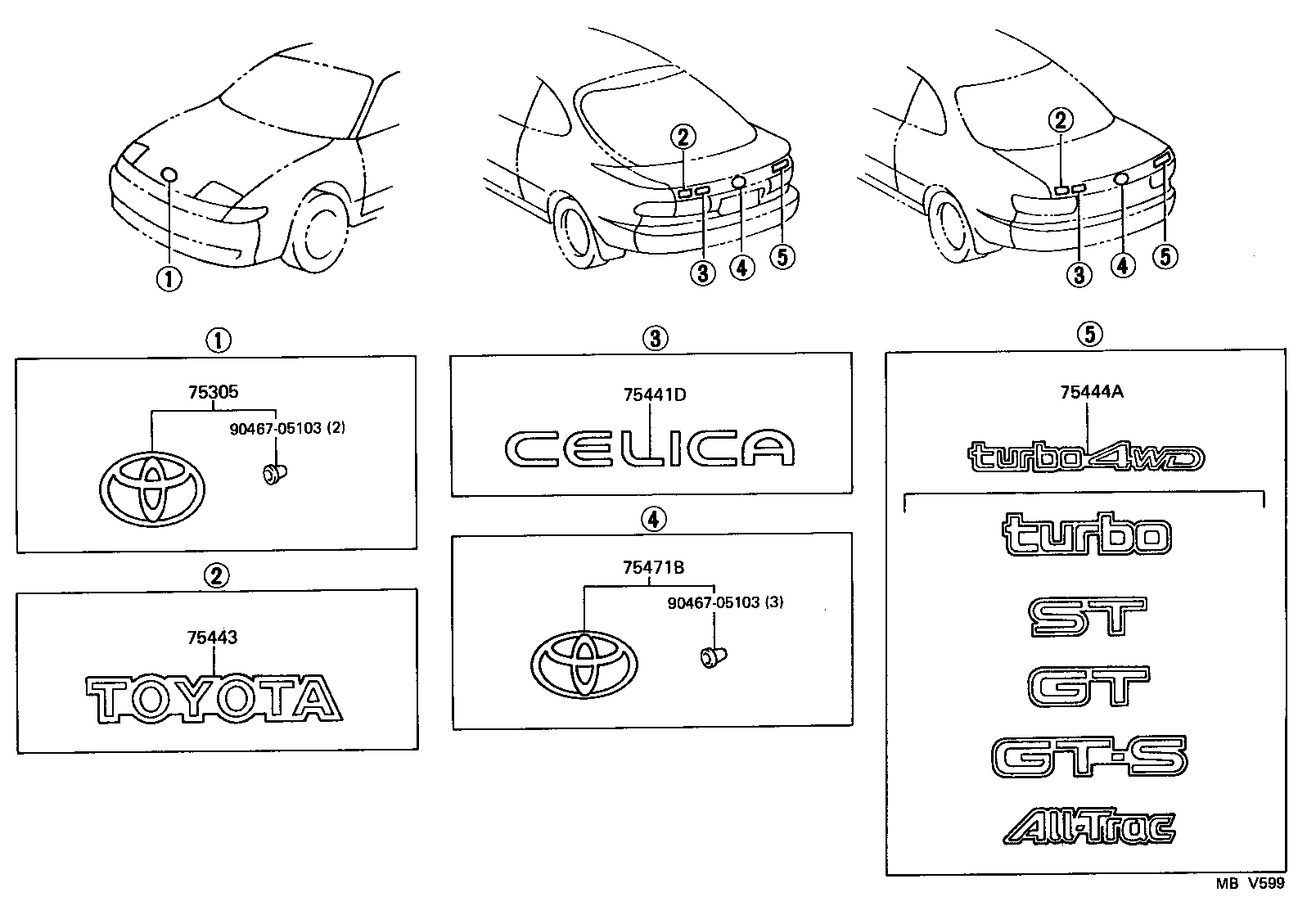

Figure MBT404A MBT404A 1989-09 → 1991-08 Figure MBV599 MBV599 1991-08 → —

Part groups

PNCDescription
75305 Emblem, Hood
75441D Plate, Luggage Compartment Door Name, NO.1
75443 Plate, Back Door Name, NO.3
75444A Plate, Back Door Name, NO.4
75471B Plate, Rear Body Name, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
