Toyota Celica

1989-09 → 1993-09 · chassis AT180,ST18# · catalogue 252460 · Europe

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

30 part groups · 2 illustrations

Illustrations

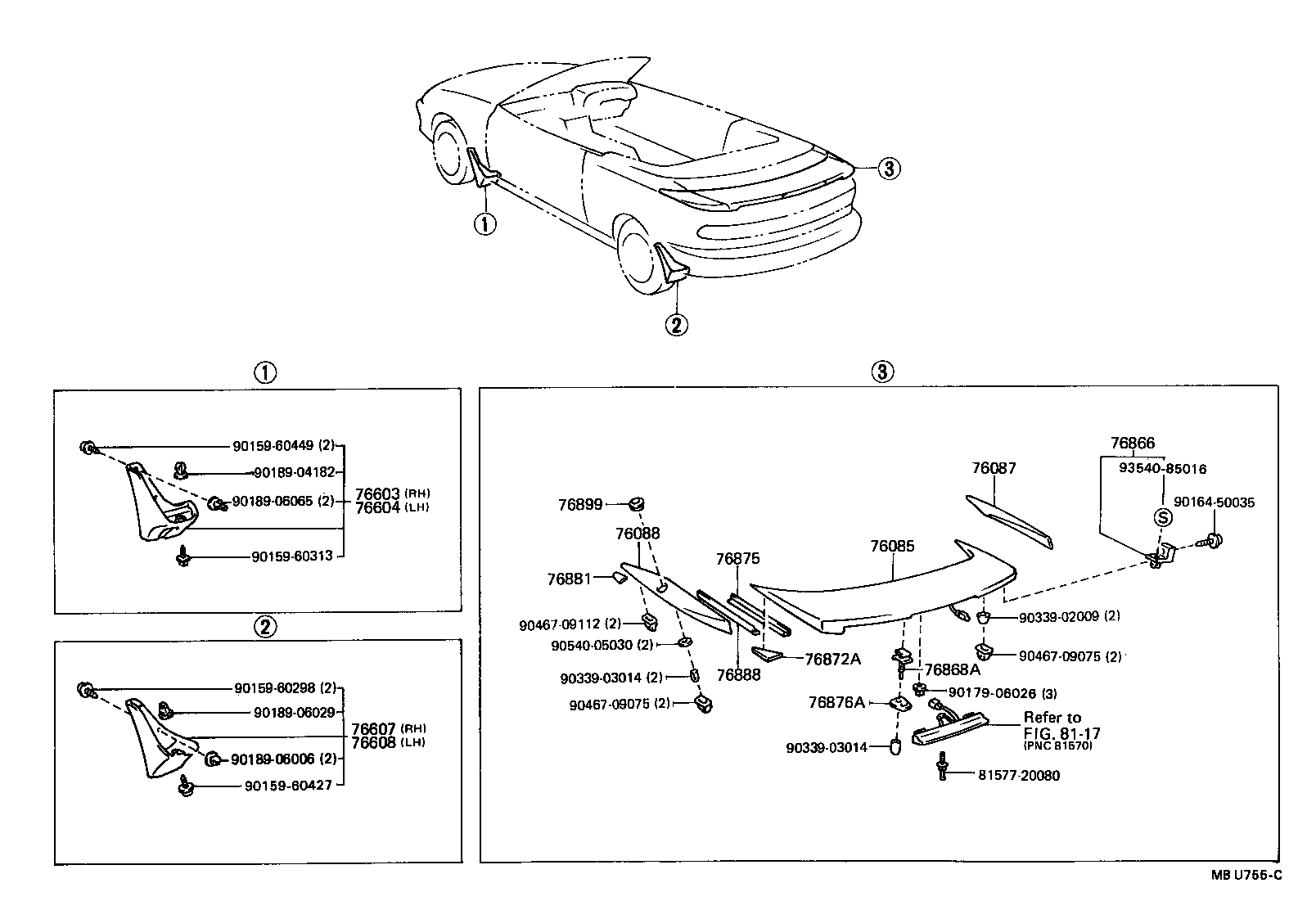

Figure MBV124D MBV124D 1989-09 → — Figure MBU755C MBU755C 1990-06 → —

Part groups

PNCDescription
75867B Clip, Rocker Panel Moulding
75868C Clip, Rear Spoiler, NO.2
76085 Spoiler Sub-assy, Rear
76087 Spoiler Sub-assy, Rear NO.1
76088 Spoiler Sub-assy, Rear NO.2
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76671D Clip, Side Mudguard
76866 Retainer, Rear Spoiler, NO.2
76867A Retainer, Rear Spoiler, NO.3
76868A Retainer, Rear Spoiler, NO.4
76872 Protector, Rear Spoiler, NO.1
76872A Protector, Rear Spoiler, NO.1
76873A Protector, Rear Spoiler, RH
76874B Protector, Rear Spoiler, LH
76875 Protector, Rear Spoiler, NO.4
76876A Protector, Rear Spoiler, NO.10
76881 Protector, Rear Spoiler Side, NO.1 RH
76882 Protector, Rear Spoiler Side, NO.1 LH
76883A Protector, Rear Sopiler, NO.7
76887B Protector, Rear Spoiler Side, NO.2
76888 Protector, Rear Spoiler Side, NO.3
76889B Seal, Rear Spoiler, NO.1
76895 Protector, Rear Spoiler, NO.5
76899 Protector, Rear Spoiler, Side NO.6
76901 Mudguard Sub-assy, Side, RH
76902 Mudguard Sub-assy, Side, LH
76931 Retainer, Side Mudguard, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
