Toyota Celica

1989-09 → 1993-09 · chassis AT180,ST18# · catalogue 252460 · Europe

Discontinued model Data version 1994-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Center Stop Lamp

5 part groups · 3 illustrations

Illustrations

Figure MEN944B

MEN944B 1989-09 → —

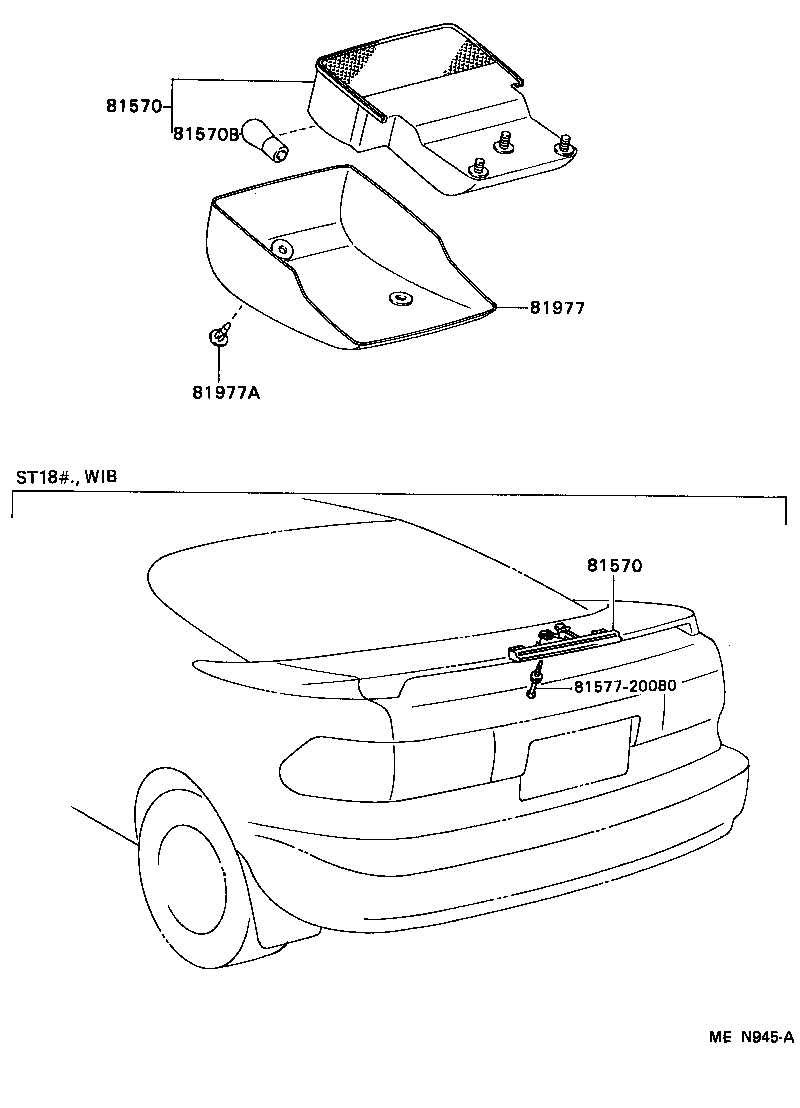

Figure MEN945A

MEN945A 1989-09 → —

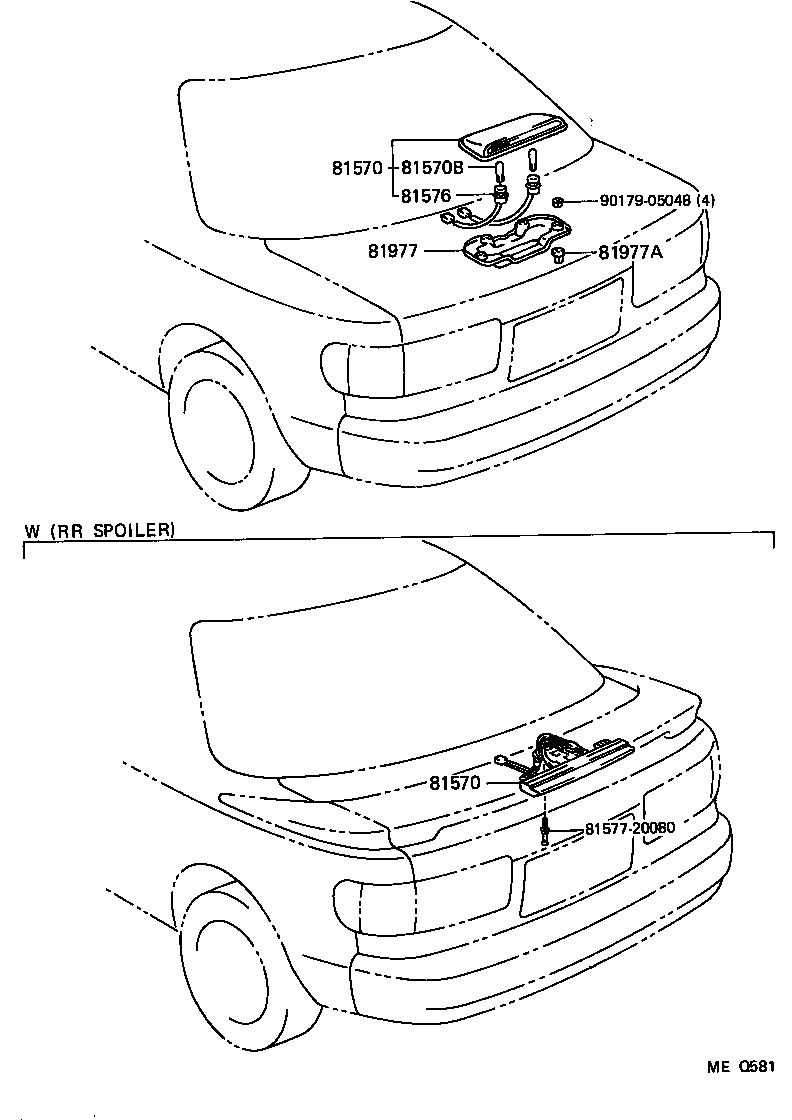

Figure MEQ581

MEQ581 1990-06 → —

Part groups

PNC	Description
81570	Lamp Assy, Center Stop
81570B	Bulb (FOR CENTER STOP LAMP)
81576	Socket & Wire, Center Stop Lamp
81977	Cover, Center Stop Lamp
81977A	Clip (FOR CENTER STOP LAMP)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
