Toyota Celica

1989-09 → 1993-09 · chassis AT180,ST18# · catalogue 252460 · Europe

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

8 part groups · 2 illustrations

Illustrations

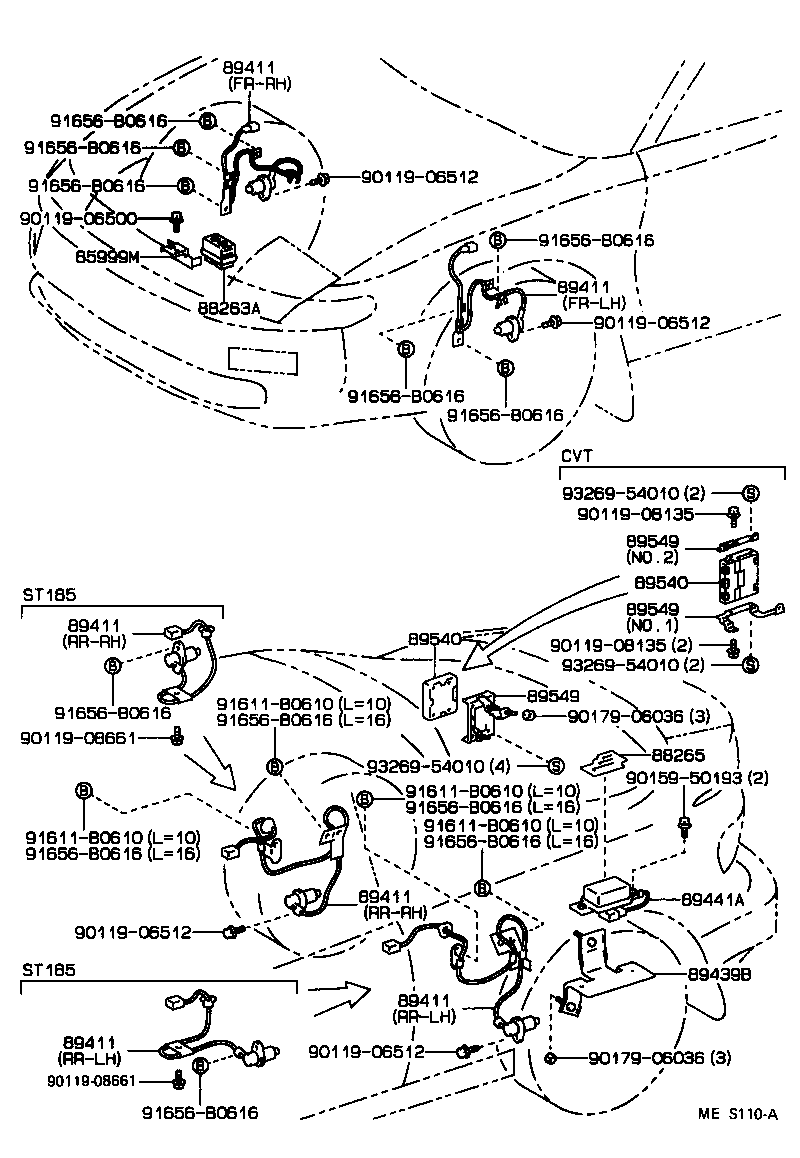

Figure MEN806A MEN806A 1989-09 → 1991-08 Figure MES110A MES110A 1991-08 → —

Part groups

PNCDescription
85999M Bracket, Relay
88263A Relay, Skid Control
88265 Label, Skid Control Caution
89411 Sensor, Speed
89439B Bracket, Sensor
89441A Sensor, Deceleration
89540 Computer Assy, Skid Control
89549 Bracket, Skid Control Computer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
