Toyota Celica
1989-09 → 1993-09 · chassis AT180,ST18# · catalogue 252460 · Europe
Discontinued model
Data version 1994-04
Antenna

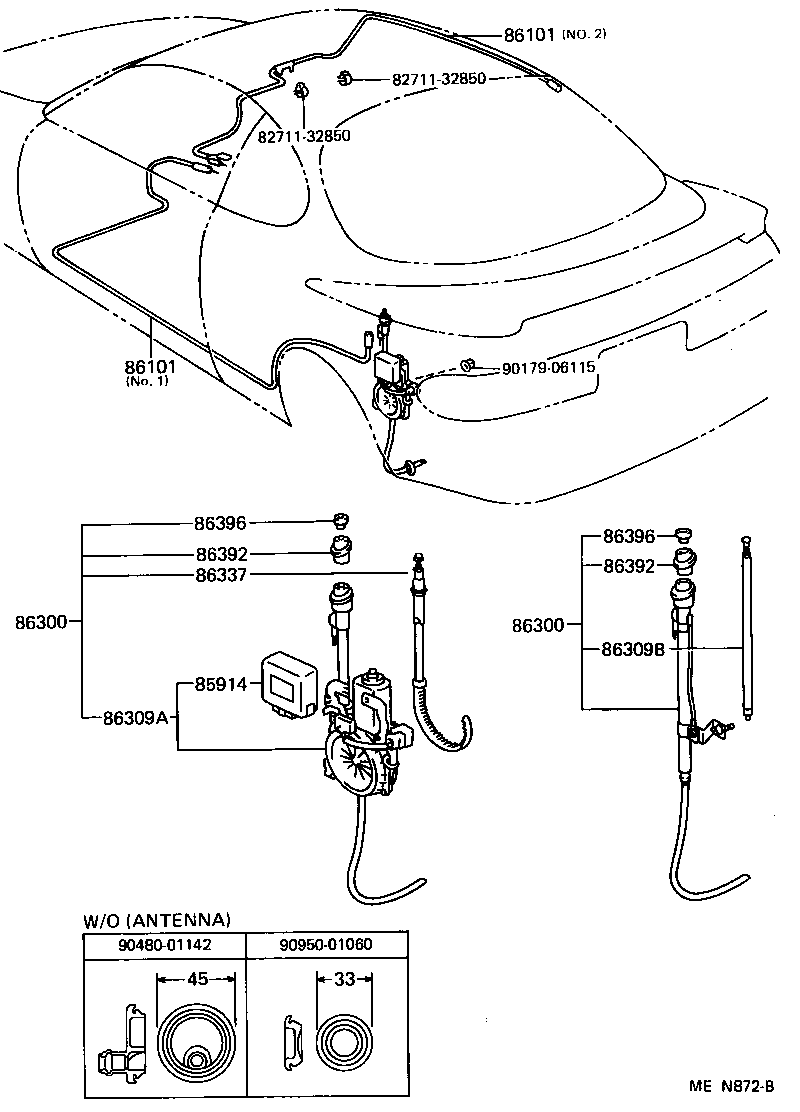

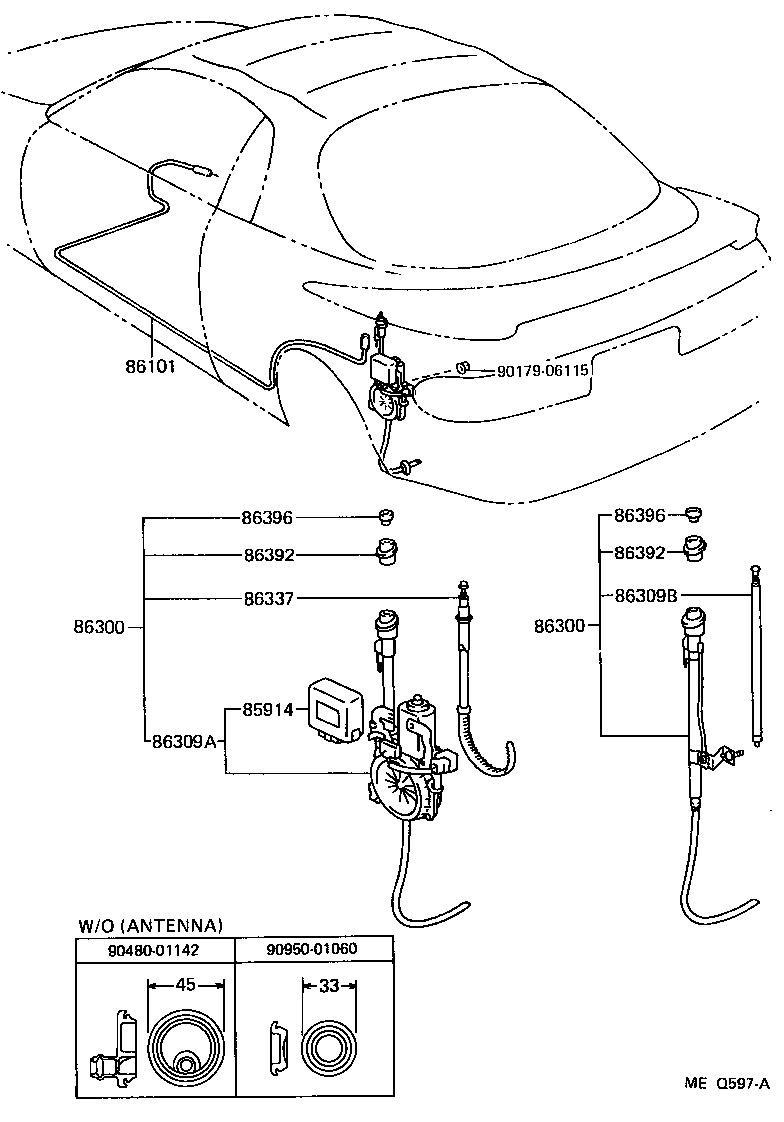

8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 85914 | Relay, Motor Antenna Control |
| 86101 | Cord Sub-assy, Antenna |
| 86300 | Antenna Assy, W/Holder |
| 86309A | Pole Sub-assy, Motor Antenna |
| 86309B | Pole Sub-assy, Pull Top Antenna |
| 86337 | Rod & Pipe, Sealed W/Cable |
| 86392 | Ornament, Antenna |
| 86396 | Nut, Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
