Toyota Celica
1989-09 → 1993-09 · chassis AT180,ST18# · catalogue 252460 · Europe
Discontinued model
Data version 1994-04

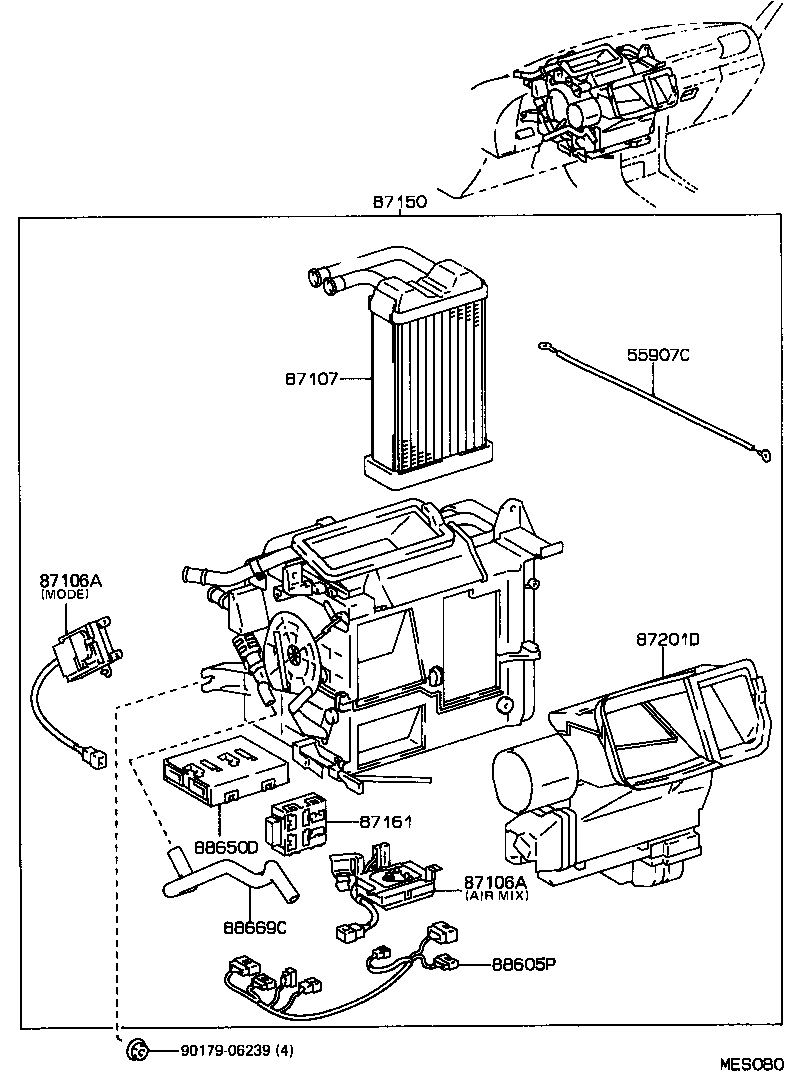

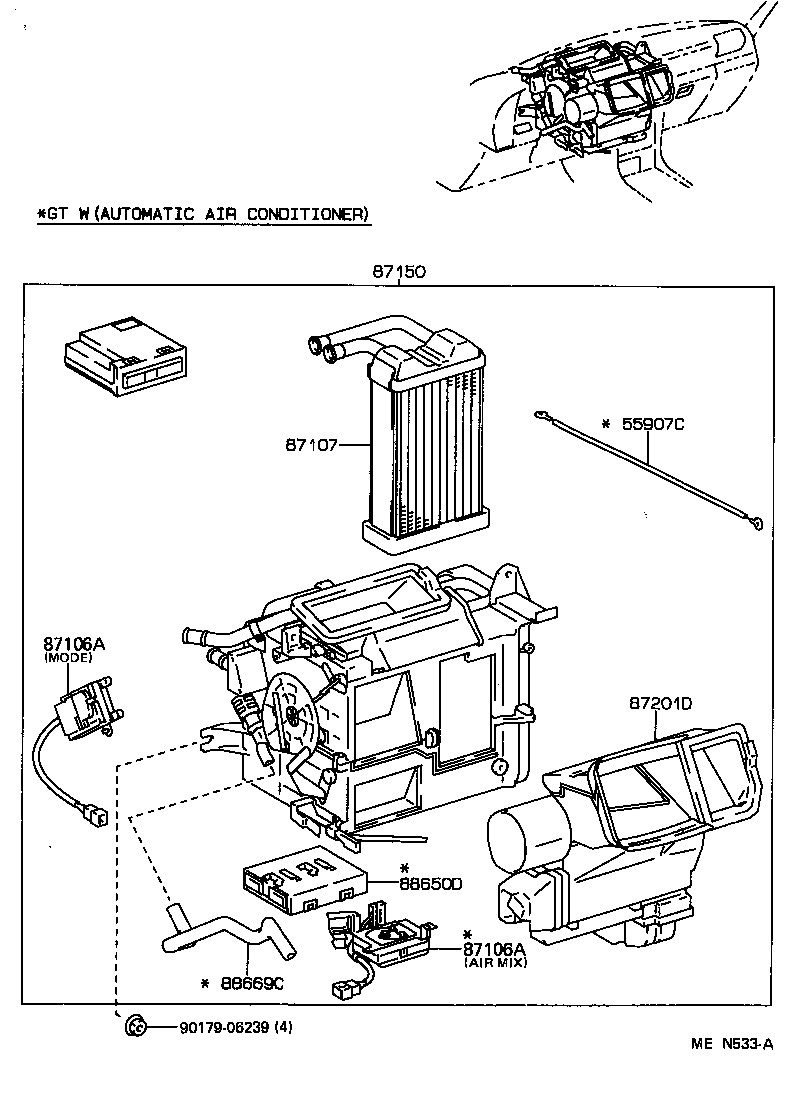

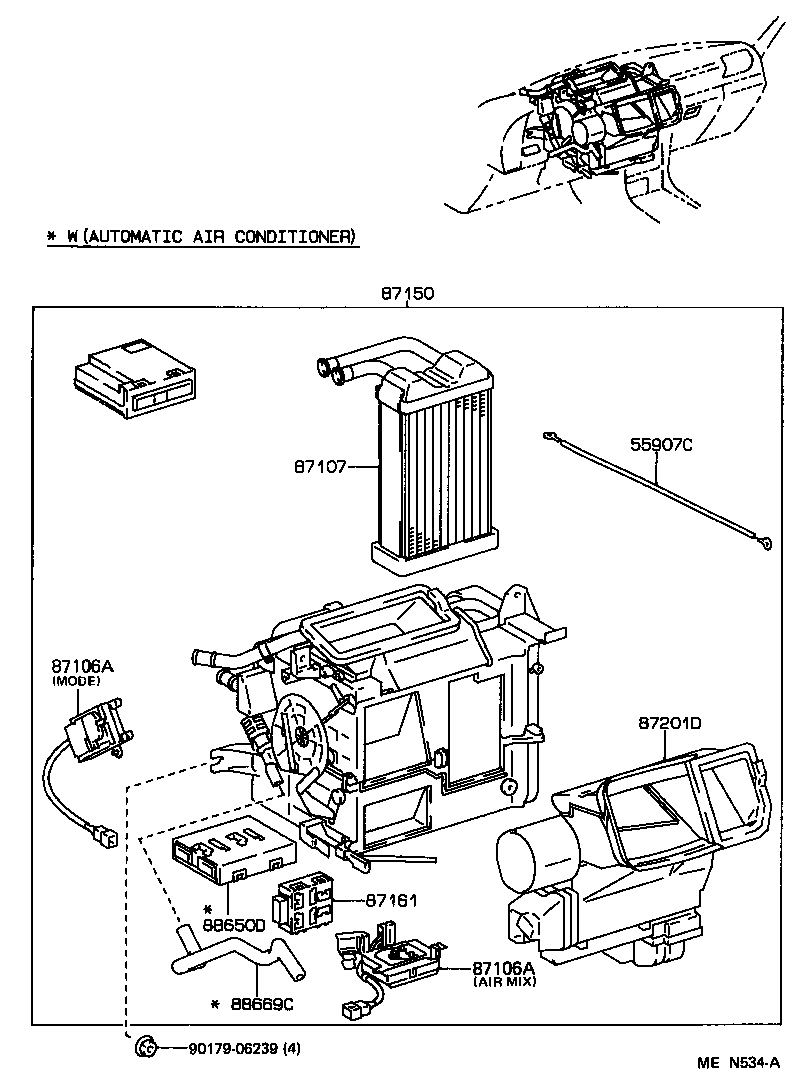

Heating & Air Conditioning - Heater Unit & Blower
13 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55907C | Cable Sub-assy, Water Valve Control |
| 87103 | Motor Sub-assy, Heater Blower, W/Fan |
| 87105 | Fan Sub-assy, Heater Blower |
| 87106A | Servo Sub-assy, Damper |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87130 | Blower Assy, Heater, Front |
| 87130C | Relay, Heater Blower Motor |
| 87150 | Radiator Assy, Heater |
| 87161 | Amplifier, Heater Servo Motor |
| 87201D | Duct Sub-assy, Air |
| 88605P | Harness Sub-assy, Air Conditioner Wiring |
| 88650D | Amplifier Assy |
| 88669C | Hose, Air |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
