Toyota Celica

1989-09 → 1993-09 · chassis AT180,ST18# · catalogue 252460 · Europe

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

22 part groups · 8 illustrations

Illustrations

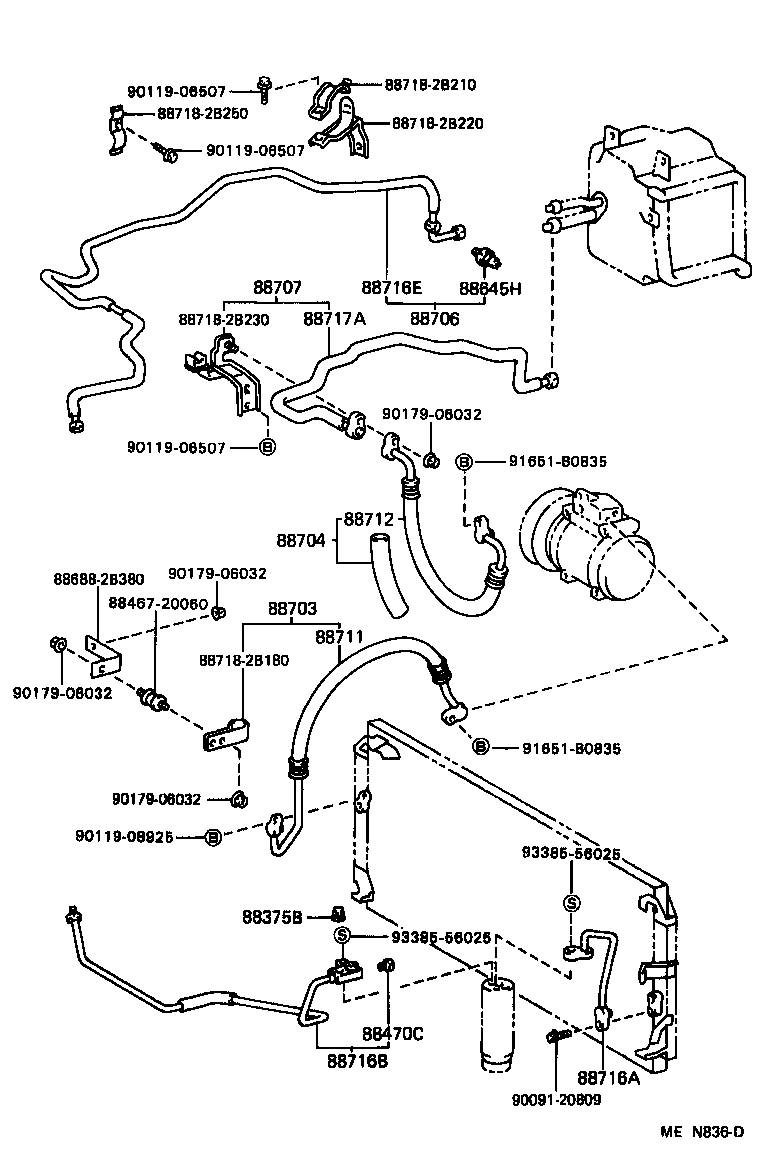

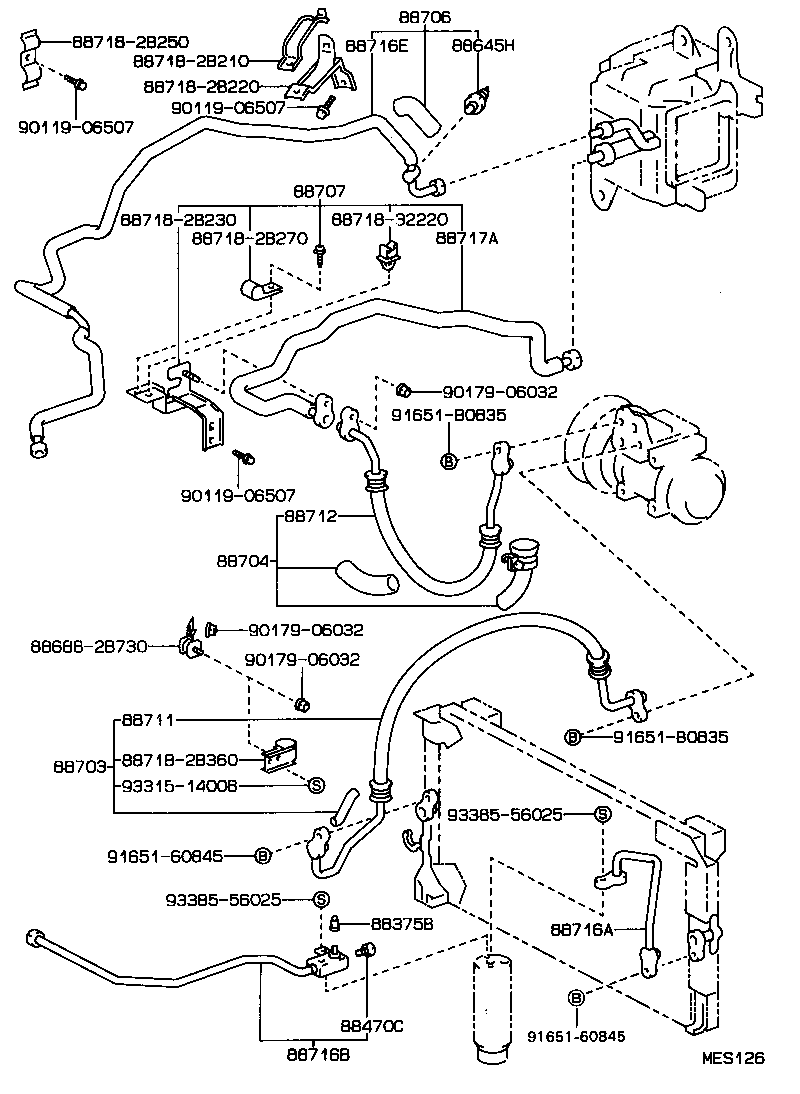

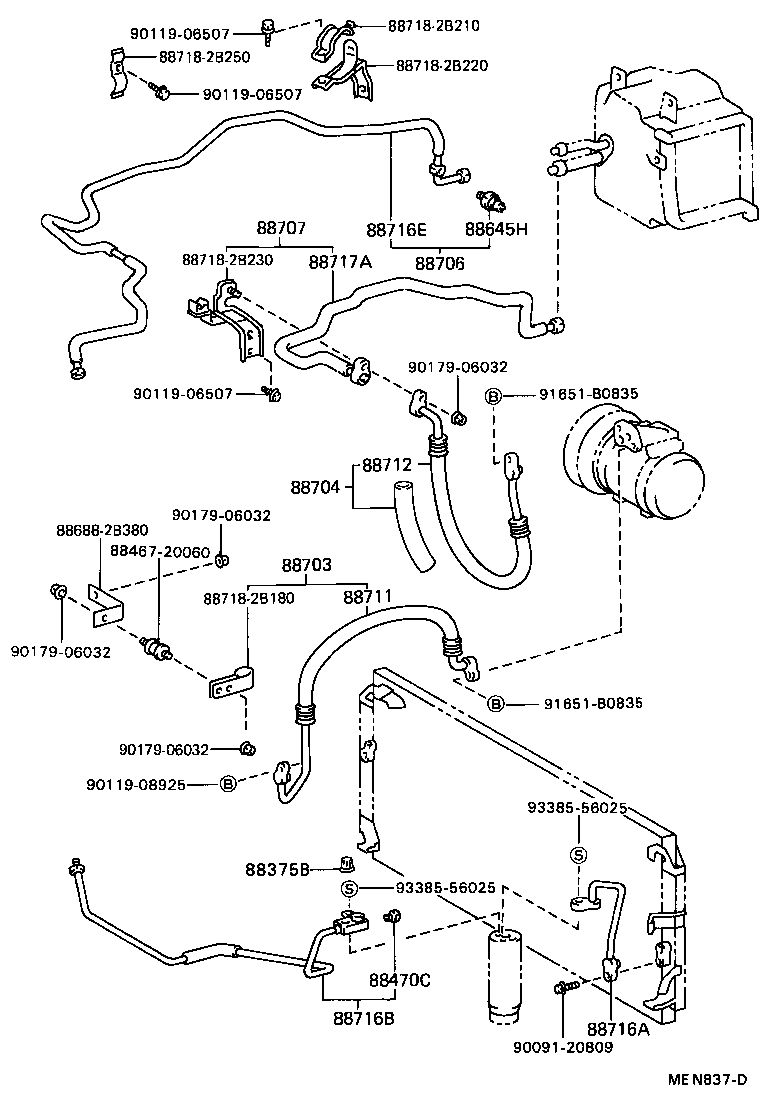

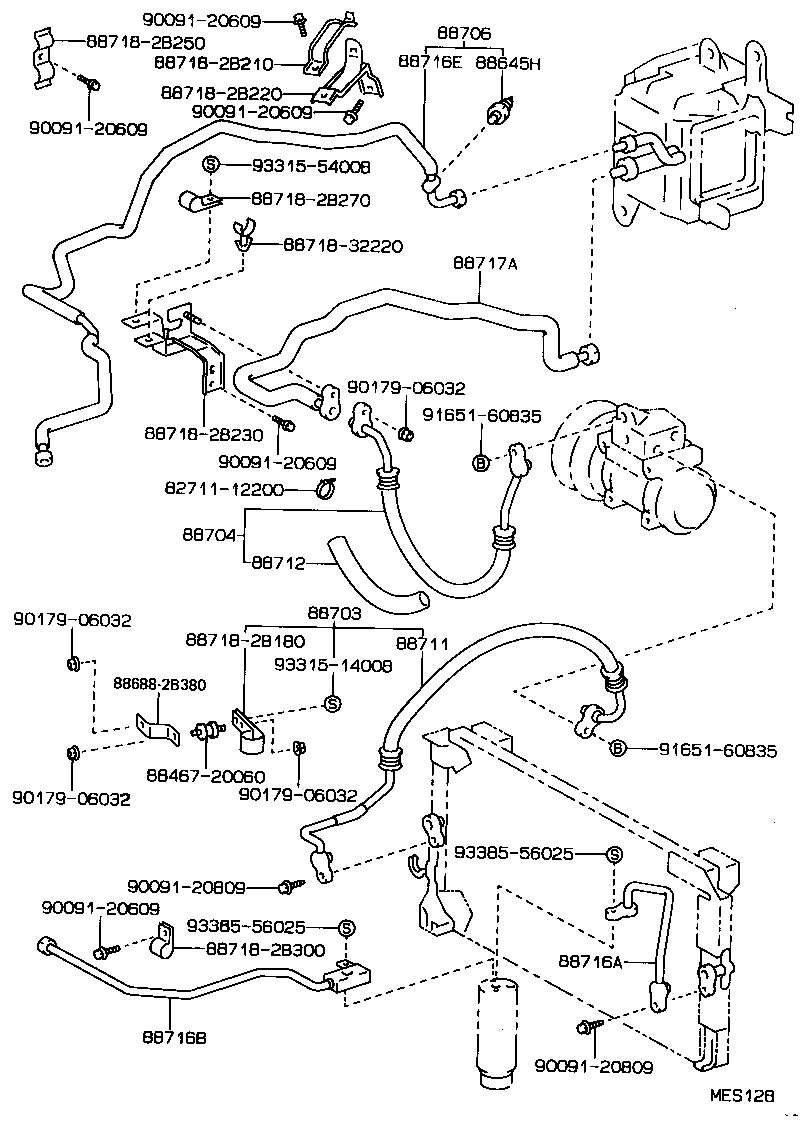

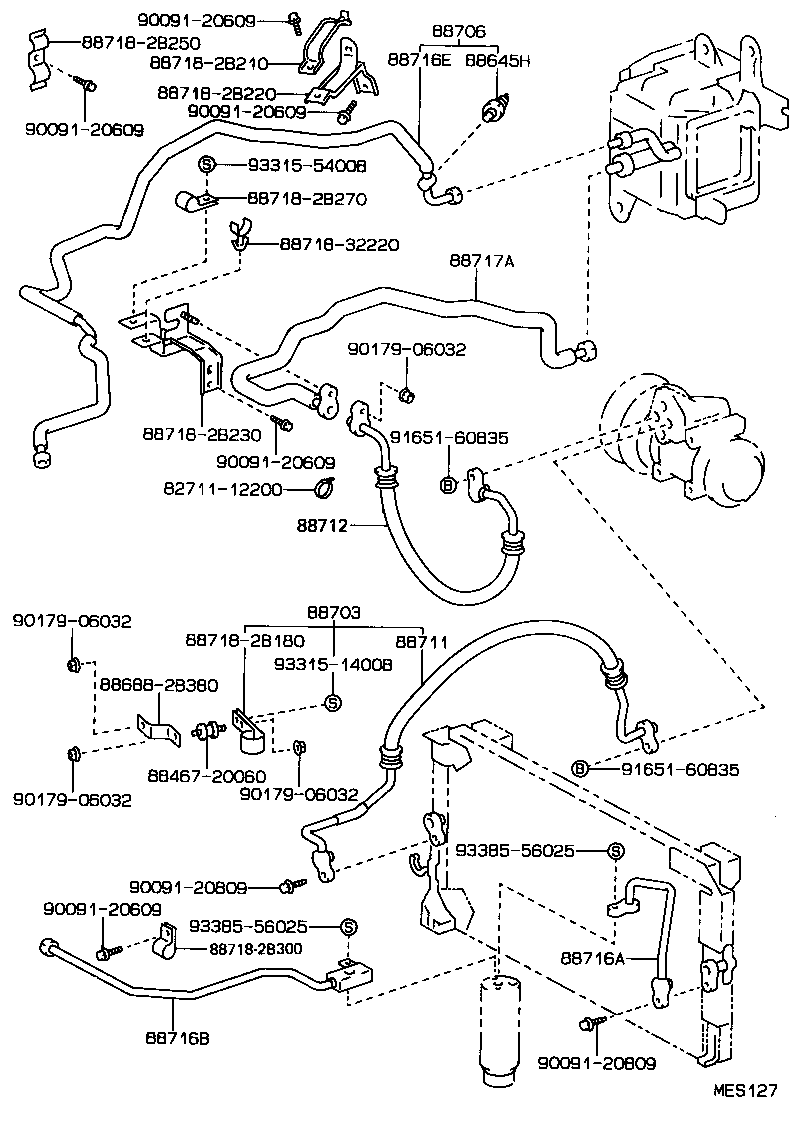

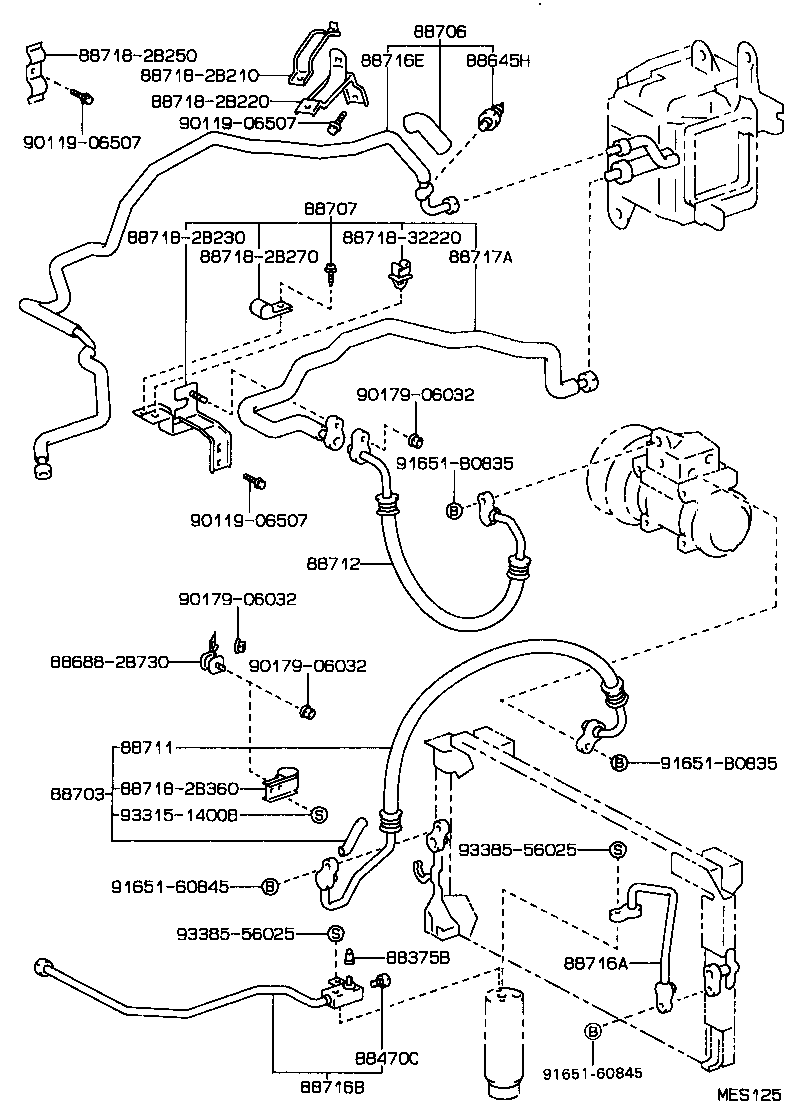

Figure MEN833B MEN833B 1989-09 → — Figure MEN736A MEN736A 1991-08 → — Figure MEN836D MEN836D 1989-09 → 1991-08 Figure MES125 MES125 1991-08 → — Figure MES127 MES127 1991-08 → — Figure MEN837D MEN837D 1989-09 → 1991-08 Figure MES126 MES126 1991-08 → — Figure MES128 MES128 1991-08 → —

Part groups

PNCDescription
88375B Cap, Service Valve, NO.1
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88470C Bolt, Fuse
88471 Tank, Receiver Air Conditioner
88473A Holder, Receiver
88550 Motor Assy, Blower (FOR CONDENSER)
88590 Blower Assy, W/Shroud
88596B Plate, Caution, NO.1
88645H Switch, Pressure NO.1
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88706 Pipe Sub-assy, Liquid
88707 Pipe Sub-assy, Suction
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88723B Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
