Toyota Celica
1993-09 → 1999-08 · chassis AT200,ST204 · catalogue 252470 · Europe
Discontinued model
Data version 2000-03

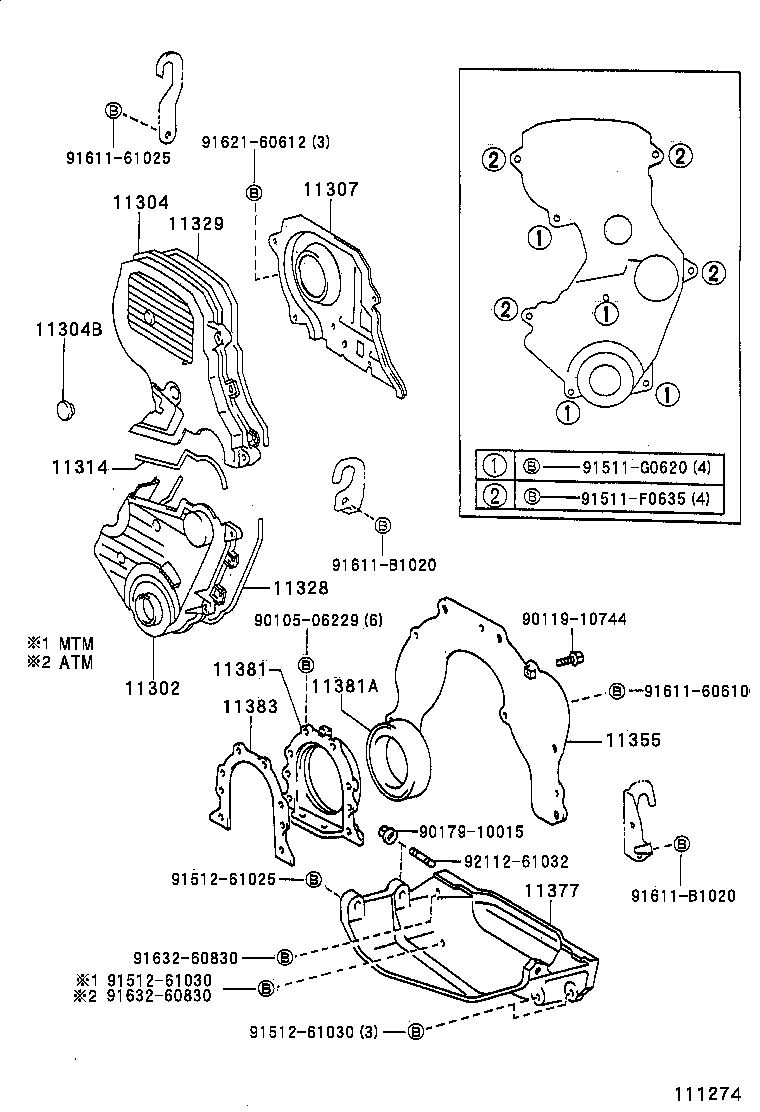

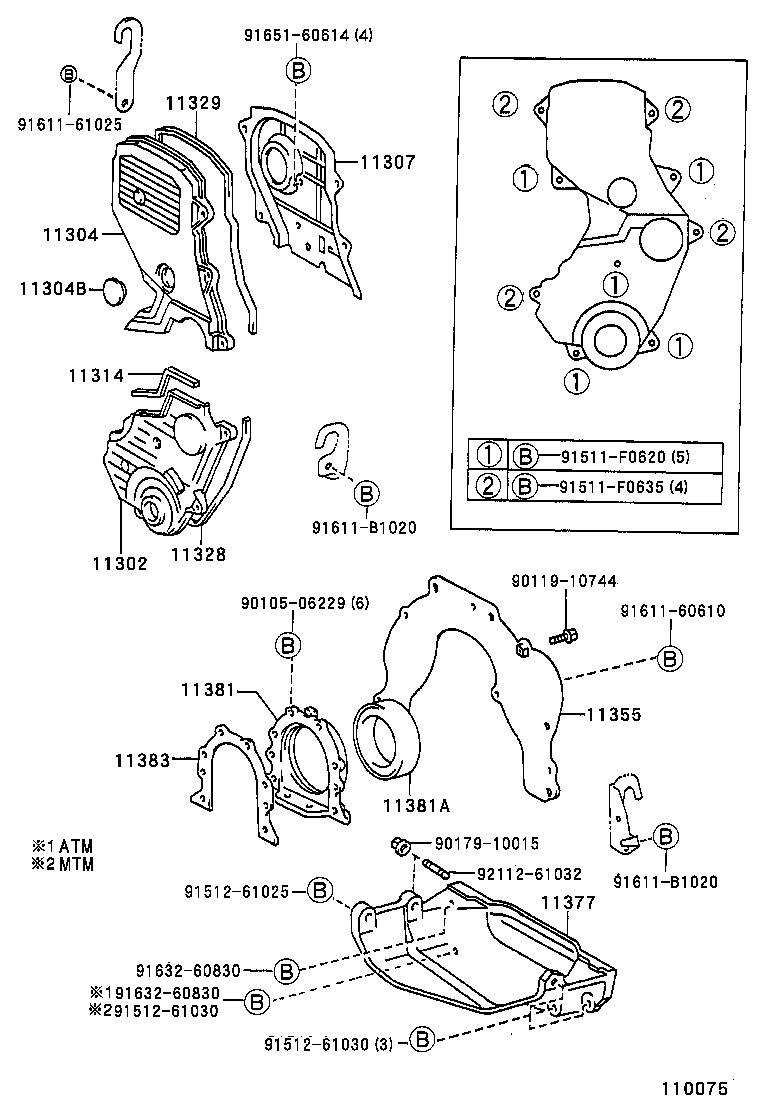

Timing Gear Cover & Rear End Plate
16 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 11302 | Cover Sub-assy, Timing Chain OR Belt |
| 11302T | Plug, Hole |
| 11303 | Cover Sub-assy, Crankshaft Gear OR Pulley |
| 11304 | Cover, Timing Chain OR Belt, NO.2 |
| 11304B | Plug, Semi Circular(FOR CHAIN COVER NO.2) |
| 11307 | Cover, Sub-assy, Timing Belt, NO.3 |
| 11314 | Gasket, Timing Chain NO.2 Cover |
| 11328 | Gasket, Timing Gear OR Chain Cover |
| 11329 | Gasket, Timing Gear Rear Cover |
| 11355 | Plate, Rear End |
| 11355A | Plug, Hole(FOR REAR END PLATE) |
| 11377 | Stiffener, Rear End Plate |
| 11381 | Retainer, Engine Rear Oil Seal |
| 11381A | Seal, Engine Rear Oil |
| 11383 | Gasket, Engine Rear Oil Seal Retainer |
| 12281 | Hanger, Engine, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
