Toyota Celica
1993-09 → 1999-08 · chassis AT200,ST204 · catalogue 252470 · Europe
Discontinued model
Data version 2000-03

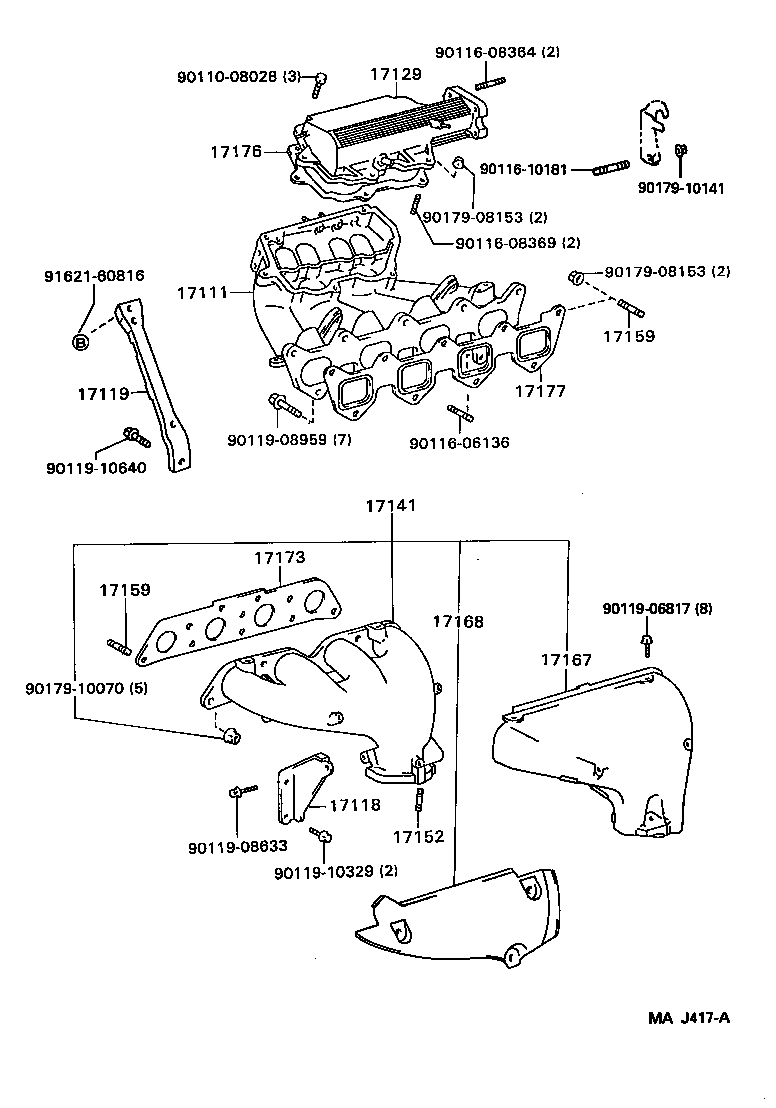

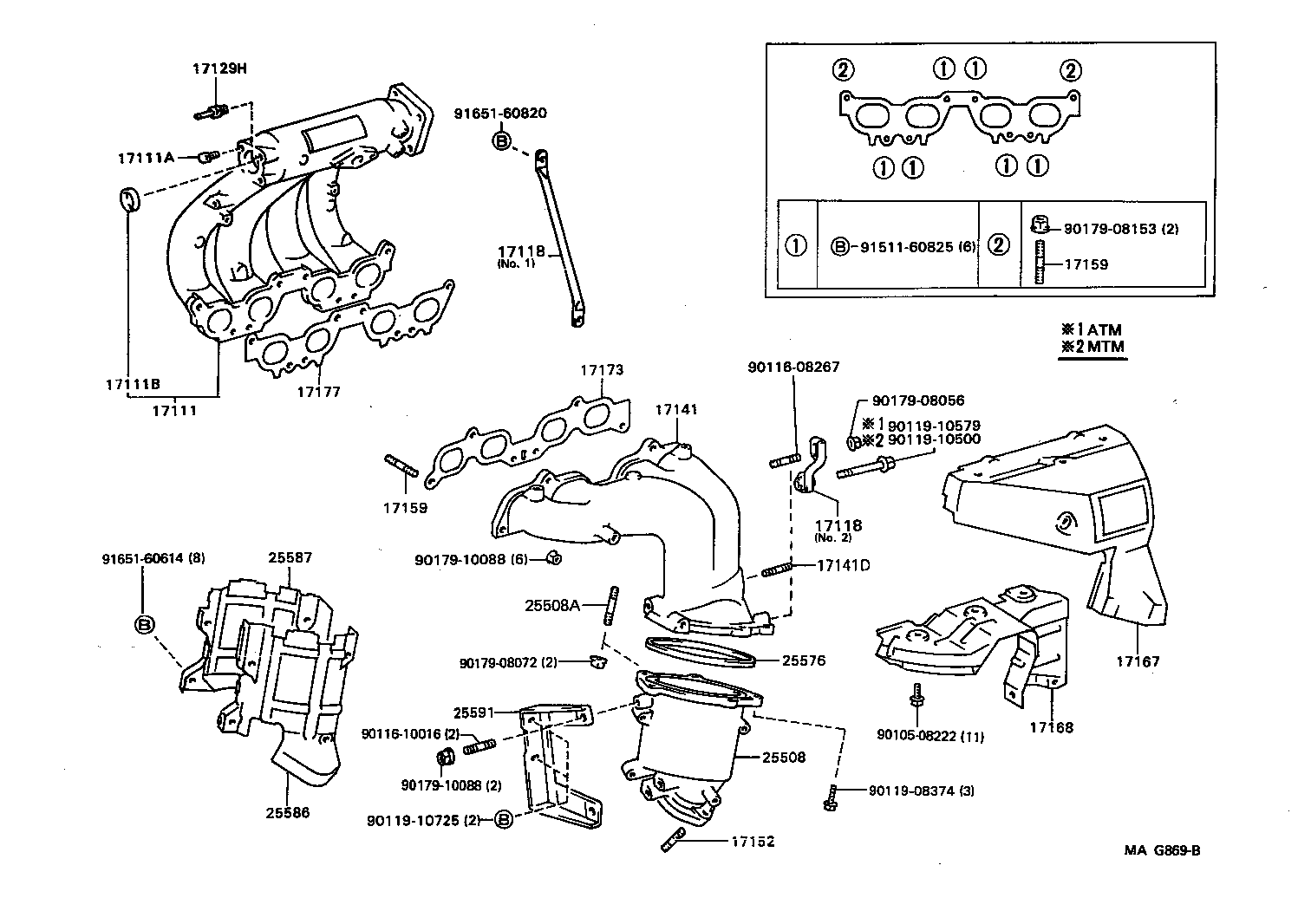

Manifold
23 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 17111 | Manifold, Intake |
| 17111A | Plug, NO.1 |
| 17111B | Plug, NO.2 |
| 17118 | Stay, Manifold |
| 17119 | Stay, Manifold, NO.2 |
| 17125 | Stay, Surge Tank, NO.1 |
| 17129 | Tank, Intake Air Surge |
| 17129H | Union, NO.4 |
| 17141 | Manifold, Exhaust |
| 17141D | Bolt, Stud(FOR OXYGEN SENSOR) |
| 17152 | Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE) |
| 17159 | Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) |
| 17167 | Insulator, Exhaust Manifold Heat, NO.1 |
| 17168 | Insulator, Exhaust Manifold Heat, NO.2 |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17176 | Gasket, Air Surge Tank TO Intake Manifold |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |
| 25508 | Converter Sub-assy, Manifold |
| 25508A | Bolt, Stud(FOR MANIFOLD CONVERTER) |
| 25576 | Gasket, Manifold Converter |
| 25586 | Insulator, Manifold Converter, NO.1 |
| 25587 | Insulator, Manifold Converter, NO.2 |
| 25591 | Bracket, Manifold Support |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
